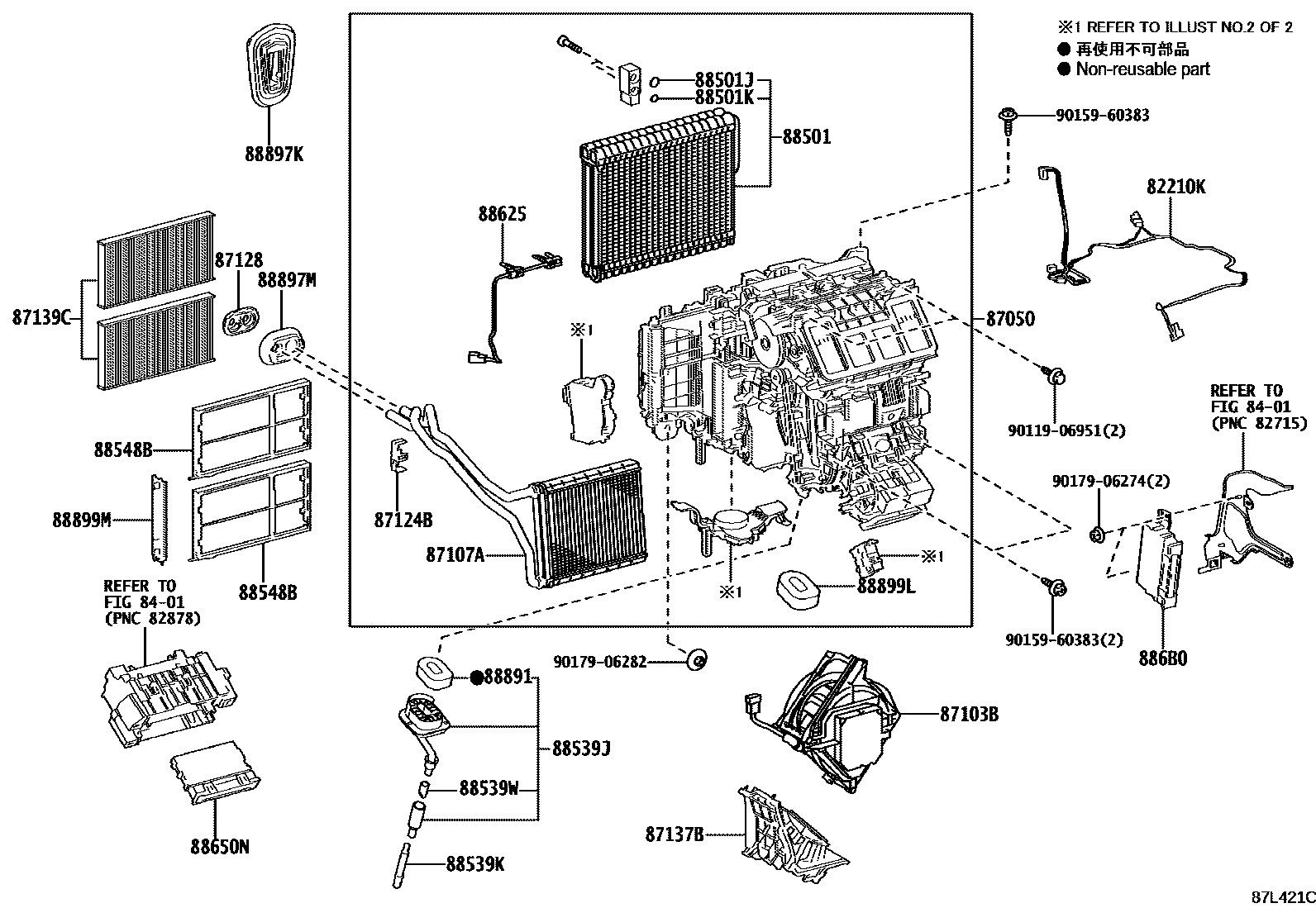

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
8401
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124BCLAMP, HEATER
87128GROMMET, HEATER
87137BCOVER, HEATER BLOWER
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
88539JHOSE, DRAIN COOLER
88539KHOSE, DRAIN COOLER
88539WHOSE, DRAIN COOLER, NO.2
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88891PACKING (FOR COOLER)
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
9011906951
main90119-06951
9015960383
main90159-60383
9017906274
main90179-06274
9017906282
main90179-06282
28 parts on this diagram · 2 diagrams in section
