ANTENNA
86050ANTENNA ASSY, TELEVISION
86050EANTENNA ASSY, TELEVISION
86077COVER KIT, ANTENNA
SONIC QUARTZ,085
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
BLACK,2YF ,2YG ,2YH ,M44
BLACK,2YF ,2YG ,2YH
BLACK,2YF ,2YG ,2YH ,9L6 ,9L7
SONIC COPPER,4Y5
AETHER ME.,8Z2
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86101VCORD SUB-ASSY, ANTENNA, NO.6
86203VWIRE SUB ASSY, RADIO
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300CANTENNA ASSY, AMPLIFIER, NO.2
86705ACORD SUB-ASSY, TELEPHONE ANTENNA
86769HOUSING, ROOF ANTENNA
8271542T90BRACKET,WIRING HARNESS CLAMP
main82715-42T90
8271548R80BRACKET,WIRING HARNESS CLAMP
main82715-48R80
9011906A06
main90119-06A06
9017906274
main90179-06274

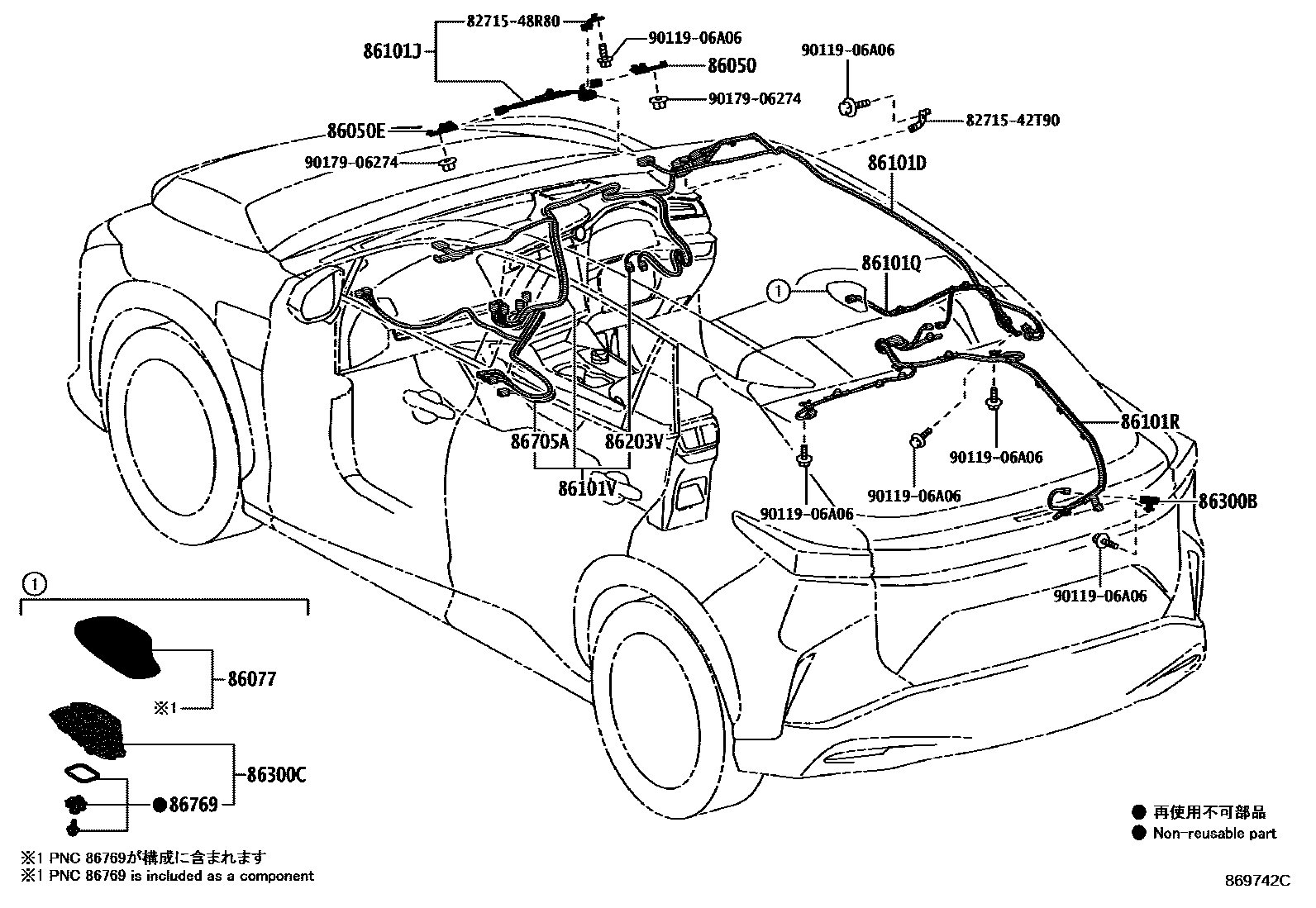

17 parts on this diagram · 1 diagram in section
