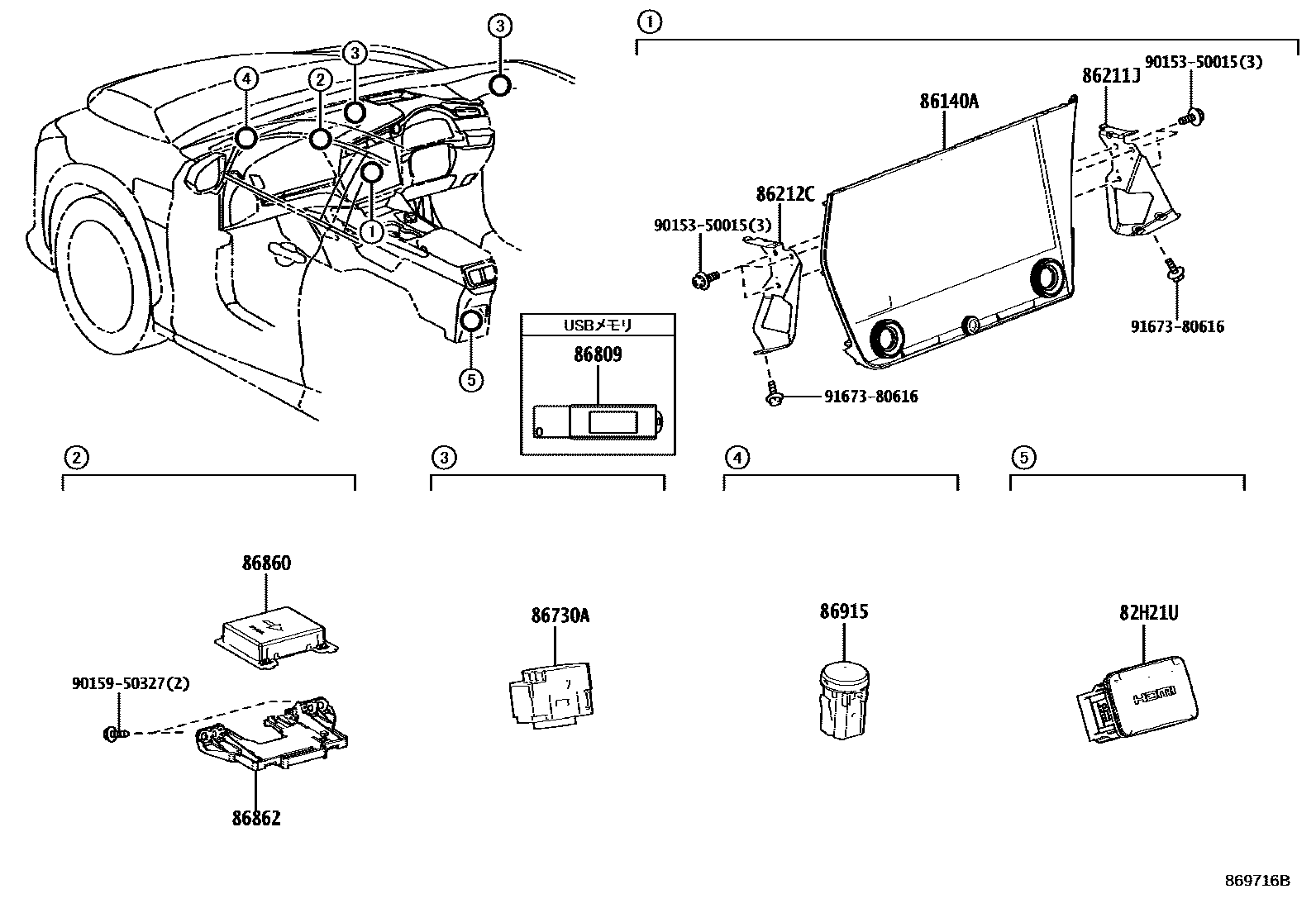

NAVIGATION & FRONT MONITOR DISPLAY

82H21UCOVER, CONNECTOR

main82821-58050-C2iXEBM1#202311

BLACK

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-46020iXEBM15202302-202307

main86100-46021iXEBM15202308-202311

main86100-46260iXEBM1#202311-202406

main86100-46261iXEBM1#202407-202411

main86100-46262iXEBM1#202412

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-46070iXEBM1#202311

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-46070iXEBM15202302-202311

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iXEBM1#202311

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78011iXEBM15202302-202311

sub86809-78012

86860ANTENNA ASSY, NAVIGATION

main86880-52030iXEBM1#202311

86862BRACKET, NAVIGATION ANTENNA

main86862-48060iXEBM1#202311

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iXEBM1#202311

9015350015

main90153-50015

9015950327

main90159-50327

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
