WIRING & CLAMP

0001 1������� 1/2 0002 1������� 2/2 0003 1������������ 0004 1��� 0005 1��� & ��� 0006 1��������� 0007 1��� 0008 1����� & ������ 0009 1����

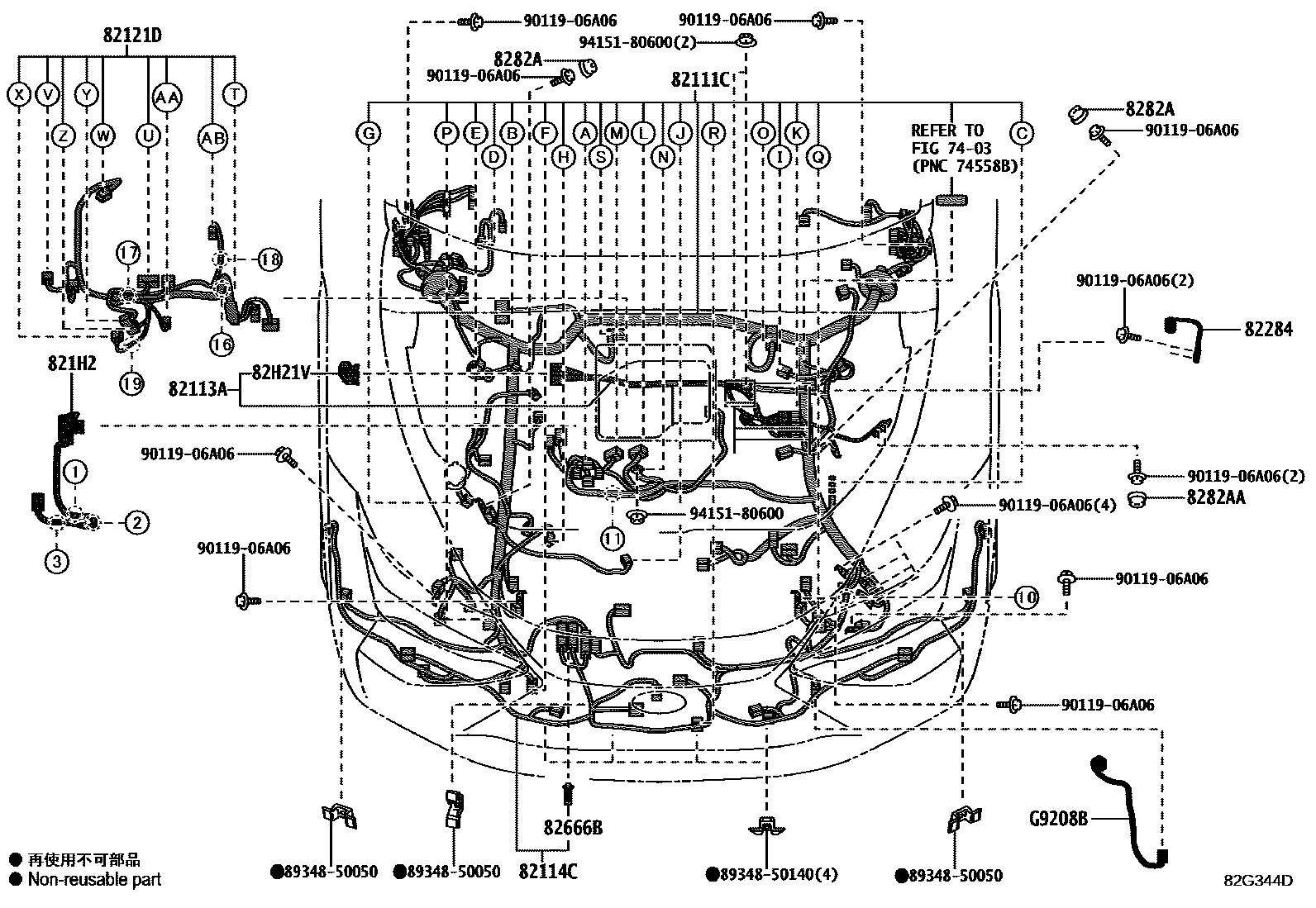

7403

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-46350iXEBM15¥212,000202302-202311

main82111-46351iXEBM15¥202,000202311-202410

main82111-46352iXEBM15¥182,000202410

main82111-46510iXEBM10¥202,000202311-202410

main82111-46511iXEBM10¥182,000202410

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-42070iXEBM1#¥4,640202311

main82113-46010iXEBM15¥5,100202302-202311

82114CWIRE, FRONT COMPARTMENT, NO.4

main82114-46080iXEBM15¥3,750202302-202311

82121DWIRE, MOTOR

main82121-42T90iXEBM1#¥11,700202302-202311

821H2WIRE, HV AIR CONDITIONER

main821H2-42040iXEBM1#¥9,000202302-202311

82284WIRE, EARTH

main82284-42080iXEBM15¥2,680202302-202311

82666BHOLDER, CONNECTOR NO.3

main82666-42020iXEBM1#¥160202302-202311

8282ACAP, EARTH BOLT, NO.1

main8282A-52010iXEBM1#¥60202302-202311

8282AACAP, EARTH BOLT, NO.2

main8282A-52010iXEBM1#¥60202302-202311

82H21VCOVER, CONNECTOR

main82821-33460iXEBM15¥360202302-202311

G9208BWIRE SUB-ASSY, INVERTER

mainG920842040iXEBM1#202302-202311

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050¥260

8934850140RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50140¥200

9011906A06

main90119-06A06¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 9 diagrams in section
