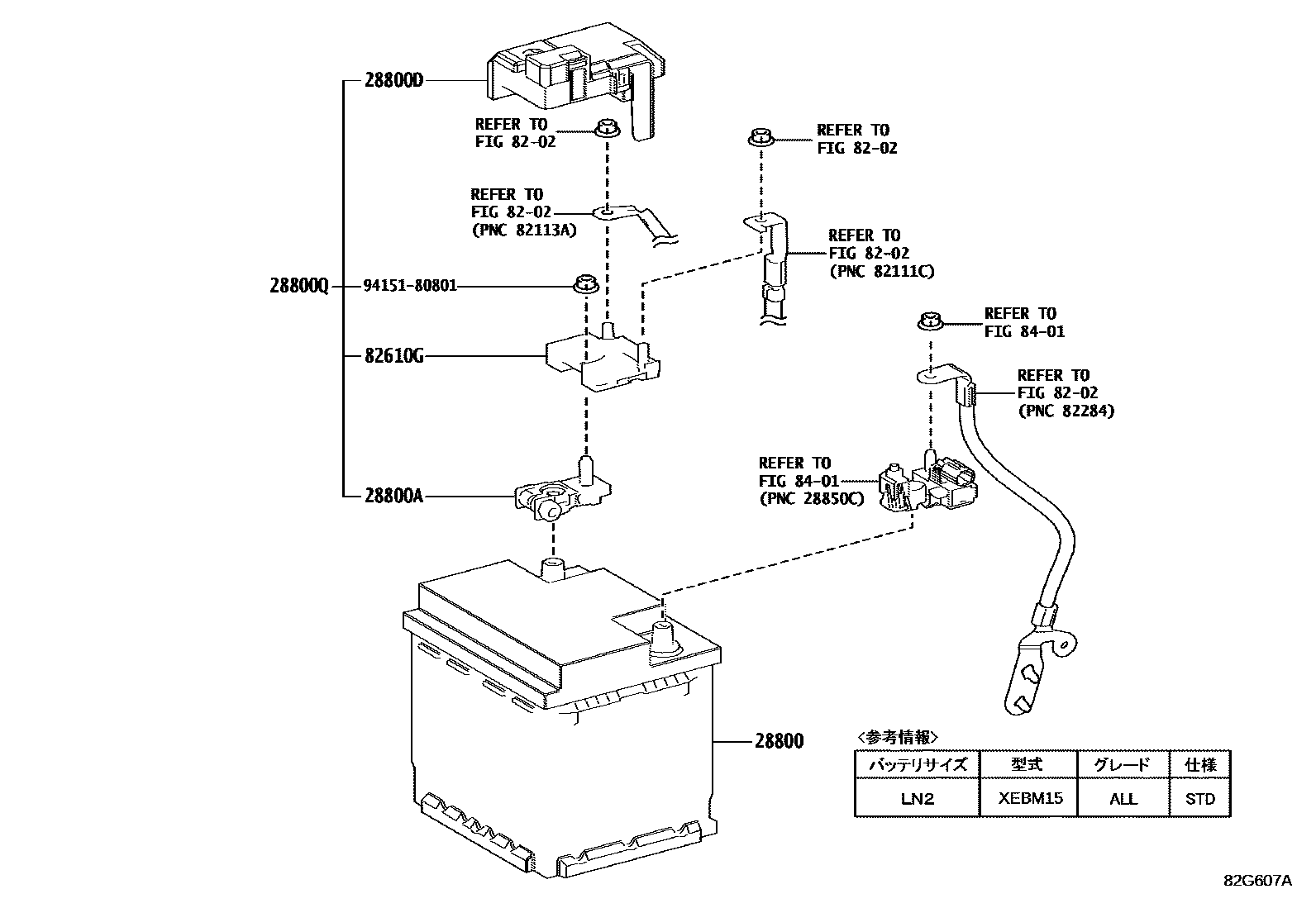

BATTERY & BATTERY CABLE

0001 112V ����� 0002 1EV ����� 0003 1EV ����� 0004 1EV ����� 0005 1����������

28800BATTERY

main28800-36191iEM..XEBM15202302-202303

sub28800-36192

main28800-36192iEM..XEBM1#202303-202311

28800ATERMINAL, BATTERY POSITIVE

main90982-05071iEM..XEBM1#202302-202311

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42140iEM..XEBM1#202302-202311

28800QCOVER, CONNECTOR(FOR BATTERY)

main82821-42390iEM..XEBM1#202302-202311

8202

82610GBLOCK ASSY, FUSE

main82620-42070iXEBM1#202302-202311

8401

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
