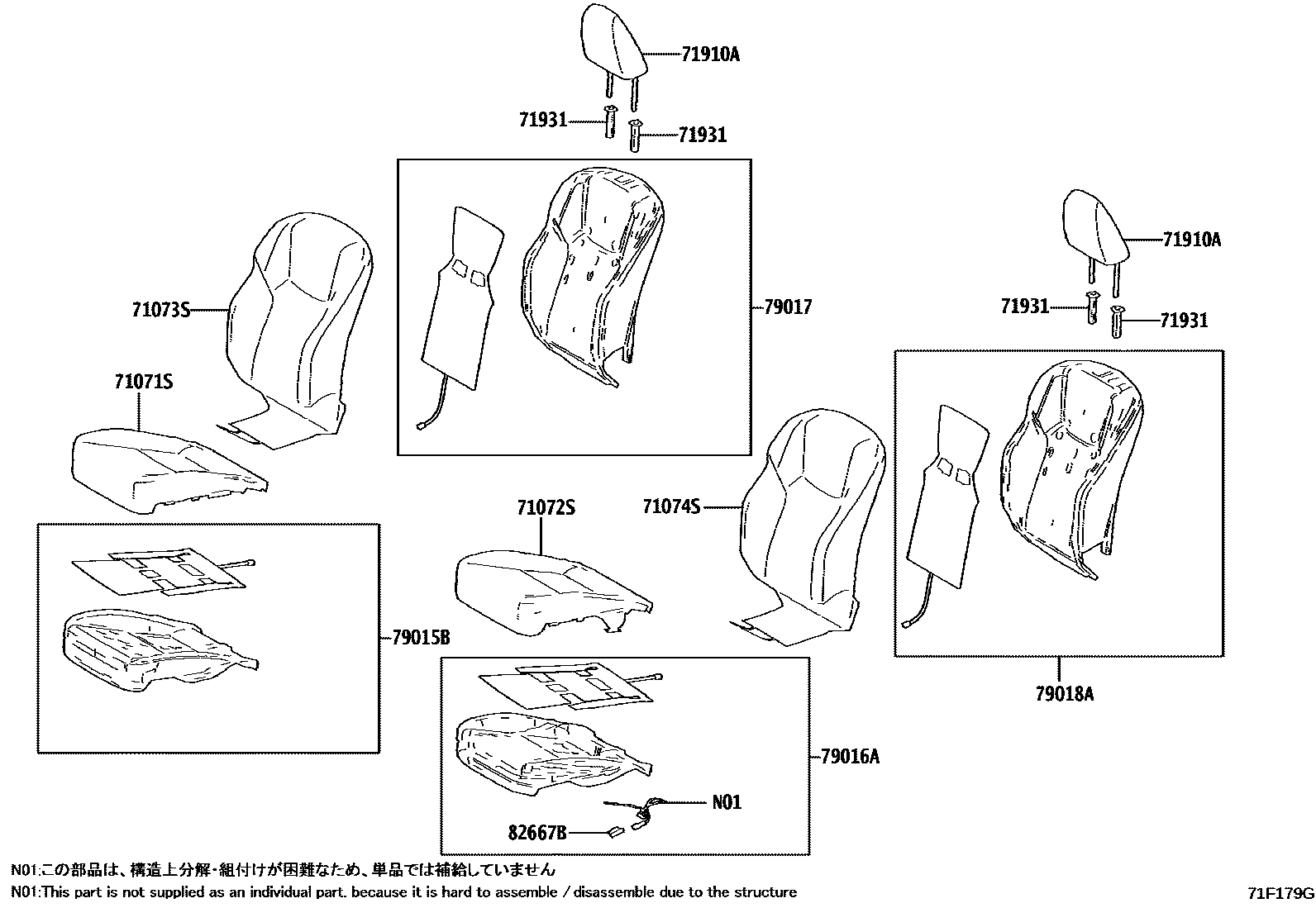

FRONT SEAT & SEAT TRACK

0001 1������� & ����� 0002 1������� & ����� 0003 1��������� 0004 1���������� 0005 1������������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-46270-B1iXEBM15..C202302-202309

DK.GRAY,TRIM1#

main71071-46270-E1iXEBM15..C202302-202309

HAZEL,TRIM4#

main71071-46270-J2iXEBM15..C202302-202309

ORAGE,TRIM8#

main71071-46271-B2iXEBM1#..C202309-202311

DK.GRAY,TRIM1#

main71071-46271-E2iXEBM1#..C202309-202311

HAZEL,TRIM4#

main71071-46271-J3iXEBM1#..C202309-202311

ORAGE,TRIM8#

main71071-46290-B1iXEBM15..L202302-202311

DK.GRAY,TRIM1#

main71071-46290-C0iXEBM15..L202403

BLACK/BLUE,TRIM2#

main71071-46290-E1iXEBM1#..L202302-202311

HAZEL,TRIM4#

main71071-46290-J1iXEBM15..L202302-202311

ORAGE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-46320-B1iXEBM15..C202302-202309

DK.GRAY,TRIM1#

main71072-46320-E1iXEBM15..C202302-202309

HAZEL,TRIM4#

main71072-46320-J2iXEBM15..C202302-202309

ORAGE,TRIM8#

main71072-46321-B2iXEBM15..C202309-202311

DK.GRAY,TRIM1#

main71072-46321-E2iXEBM1#..C202309-202311

HAZEL,TRIM4#

main71072-46321-J3iXEBM1#..C202309-202311

ORAGE,TRIM8#

main71072-46340-B1iXEBM1#..L202302-202311

DK.GRAY,TRIM1#

main71072-46340-C0iXEBM15..L202403

BLACK/BLUE,TRIM2#

main71072-46340-E1iXEBM15..L202302-202311

HAZEL,TRIM4#

main71072-46340-J1iXEBM15..L202302-202311

ORAGE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-46380-B1iXEBM15..C202302-202311

DK.GRAY,TRIM1#

main71073-46380-E1iXEBM15..C202302-202311

HAZEL,TRIM4#

main71073-46380-J2iXEBM15..C202302-202311

ORAGE,TRIM8#

main71073-46410-B1iXEBM1#..L202302-202311

DK.GRAY,TRIM1#

main71073-46410-C0iXEBM15..L202403

BLACK/BLUE,TRIM2#

main71073-46410-E1iXEBM15..L202302-202311

HAZEL,TRIM4#

main71073-46410-J1iXEBM1#..L202302-202311

ORAGE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-46240-B1iXEBM15..C202302-202311

DK.GRAY,TRIM1#

main71074-46240-E1iXEBM1#..C202302-202311

HAZEL,TRIM4#

main71074-46240-J2iXEBM1#..C202302-202311

ORAGE,TRIM8#

main71074-46270-B1iXEBM1#..L202302-202311

DK.GRAY,TRIM1#

main71074-46270-C0iXEBM15..L202403

BLACK/BLUE,TRIM2#

main71074-46270-E1iXEBM15..L202302-202311

HAZEL,TRIM4#

main71074-46270-J1iXEBM15..L202302-202311

ORAGE,TRIM8#

71910AHEADREST ASSY, FRONT SEAT

main71910-46220-B0iXEBM1#..C202302-202311

DK.GRAY,TRIM1#

main71910-46220-E0iXEBM15..C202302-202311

HAZEL,TRIM4#

main71910-46220-J0iXEBM15..C202302-202311

ORAGE,TRIM8#

main71910-46230-B0iXEBM15..L202302-202311

DK.GRAY,TRIM1#

main71910-46230-C1iXEBM15..L202403

BLACK,TRIM2#

main71910-46230-E0iXEBM1#..L202302-202311

HAZEL,TRIM4#

main71910-46230-J0iXEBM1#..L202302-202311

ORAGE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iXEBM10;XEBM15..C202311

main71930-47050-C5iXEBM15..L202302-202311

main71931-47030-C4iXEBM15..L202302-202311

main71931-47030-C4iXEBM10;XEBM15..C202311

79015BPAD SUB-ASSY, NO.1 SEAT CUSHION, RH

main79015-46050iXEBM1#202302-202311

79016APAD SUB-ASSY, NO.1 SEAT CUSHION, LH

main79016-46060iXEBM1#202302-202311

79017PAD SUB-ASSY, NO.1 SEATBACK, RH

main79017-46030iXEBM1#202302-202311

79018APAD SUB-ASSY, NO.1 SEATBACK, LH

main79018-46030iXEBM1#202302-202311

82667BHOLDER, CONNECTOR

main82666-47630iXEBM15202302-202311

11 parts on this diagram · 5 diagrams in section
