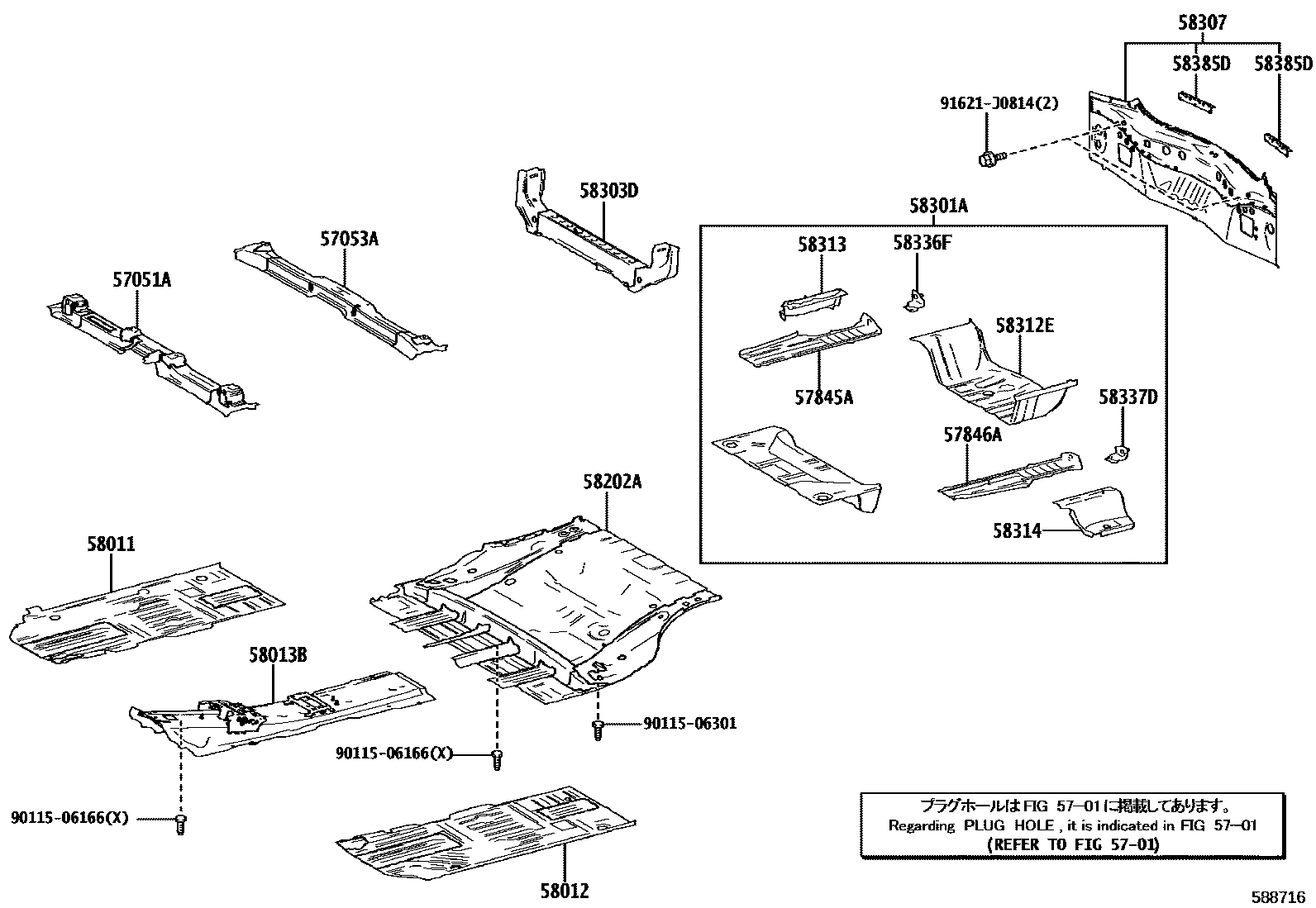

FLOOR PAN & LOWER BACK PANEL
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57053AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER
57845AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
57846AREINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH
58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58301APANEL SUB-ASSY, REAR FLOOR
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58307PANEL SUB-ASSY, BODY LOWER BACK
58312EPANEL, REAR FLOOR, REAR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58385DBRACKET, REAR BUMPER COVER
9011506166
main90115-06166
9011506301
main90115-06301
91621J0814
main91621-J0814
21 parts on this diagram · 1 diagram in section
