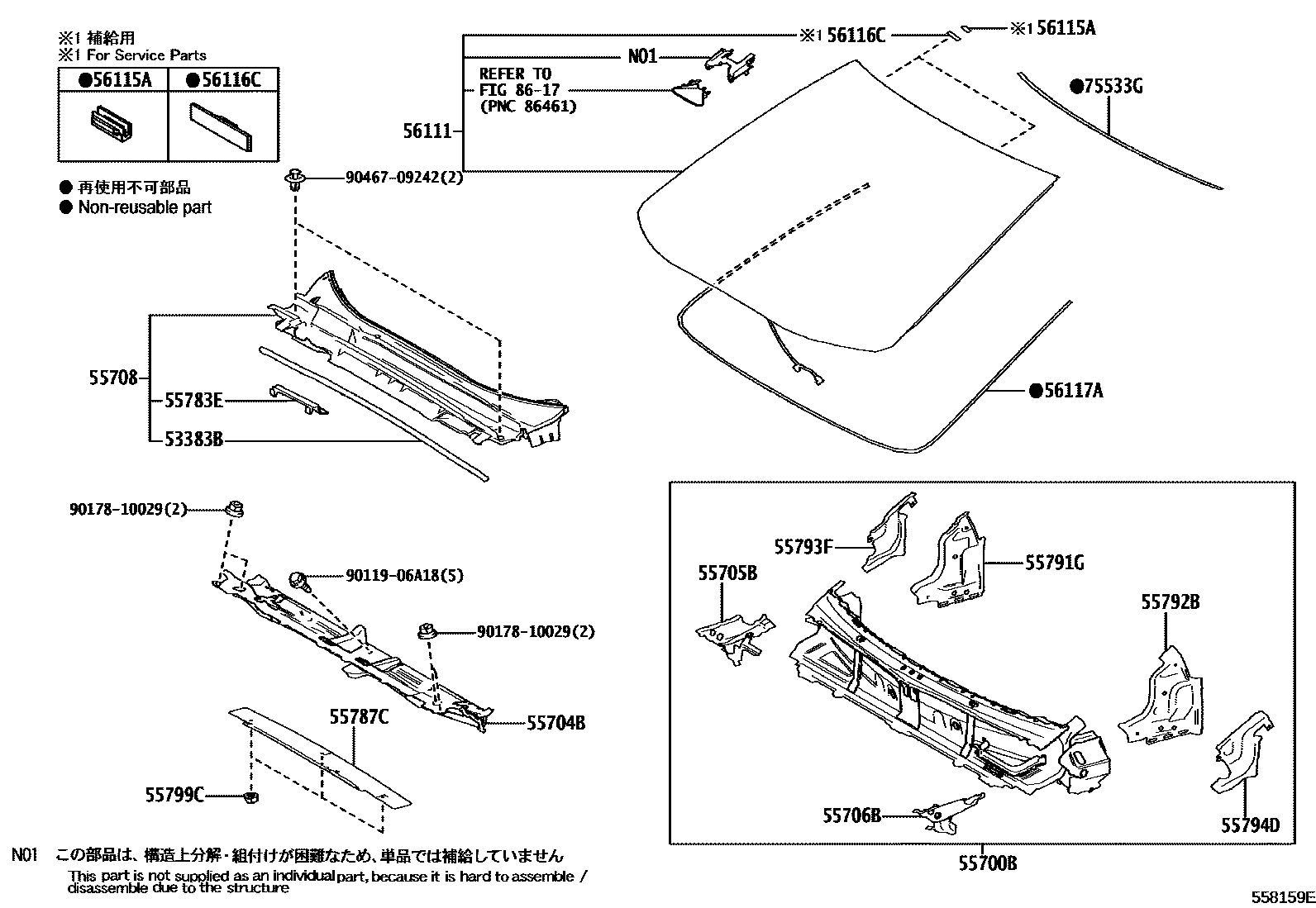

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-46030iXEBM15202302-202311

55700BCOWL ASSY

main55700-46040iXEBM1#202302-202311

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-46030iXEBM1#202302-202311

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-46030iXEBM1#202302-202311

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-46030iXEBM15202302-202311

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-46050iXEBM1#202302-202311

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-46040iXEBM1#202302-202311

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-46020iXEBM1#202302-202405

main5578A-46010iXEBM1#202406

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-46010iXEBM15202302-202311

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-46010iXEBM1#202302-202311

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-46020iXEBM15202302-202311

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-46020iXEBM1#202302-202311

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-06206-C0iXEBM1#202302-202311

BLACK

56111GLASS, WINDSHIELD

main56101-46912iXEBM15202302-202410

main56101-46922iXEBM1#202410

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iXEBM1#202302-202311

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iXEBM1#202302-202311

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iXEBM1#202302-202311

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-46040iXEBM1#202302-202311

8617

9011906A18

main90119-06A18

9017810029

main90178-10029

9046709242

main90467-09242

22 parts on this diagram · 1 diagram in section
