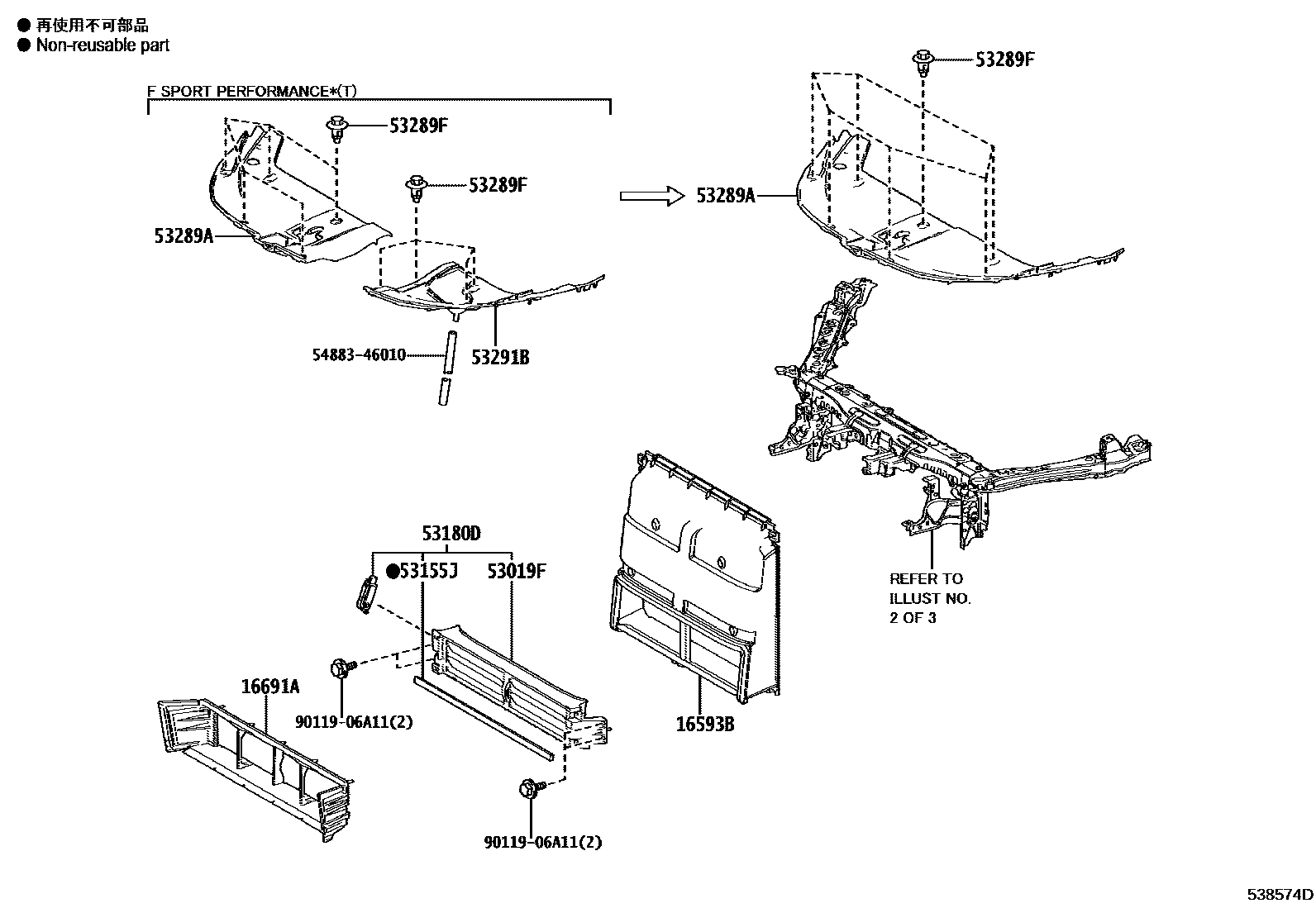

FRONT FENDER APRON & DASH PANEL

0001 1������� & ��������������� 0002 1����������� & ���������� 0003 1���������

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-10020iEM..XEBM1#202302-202311

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-10020iEM..XEBM1#202302-202311

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-42060iXEBM1#202302-202311

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-42070iXEBM1#202302-202311

53180DSHUTTER ASSY, RADIATOR

main53180-42060iXEBM15202302-202303

sub53180-42061

main53180-42061iXEBM15202304-202308

sub53180-42062

main53180-42062iXEBM1#202309-202404

sub53180-42063

main53180-42063iXEBM1#202405

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-46010iXEBM1#202302-202311

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07217iXEBM1#202302-202311

53291BPLATE, RADIATOR COVER

5488346010HOSE, TILT CAB PUMP

main54883-46010

9011906A11

main90119-06A11

10 parts on this diagram · 3 diagrams in section
