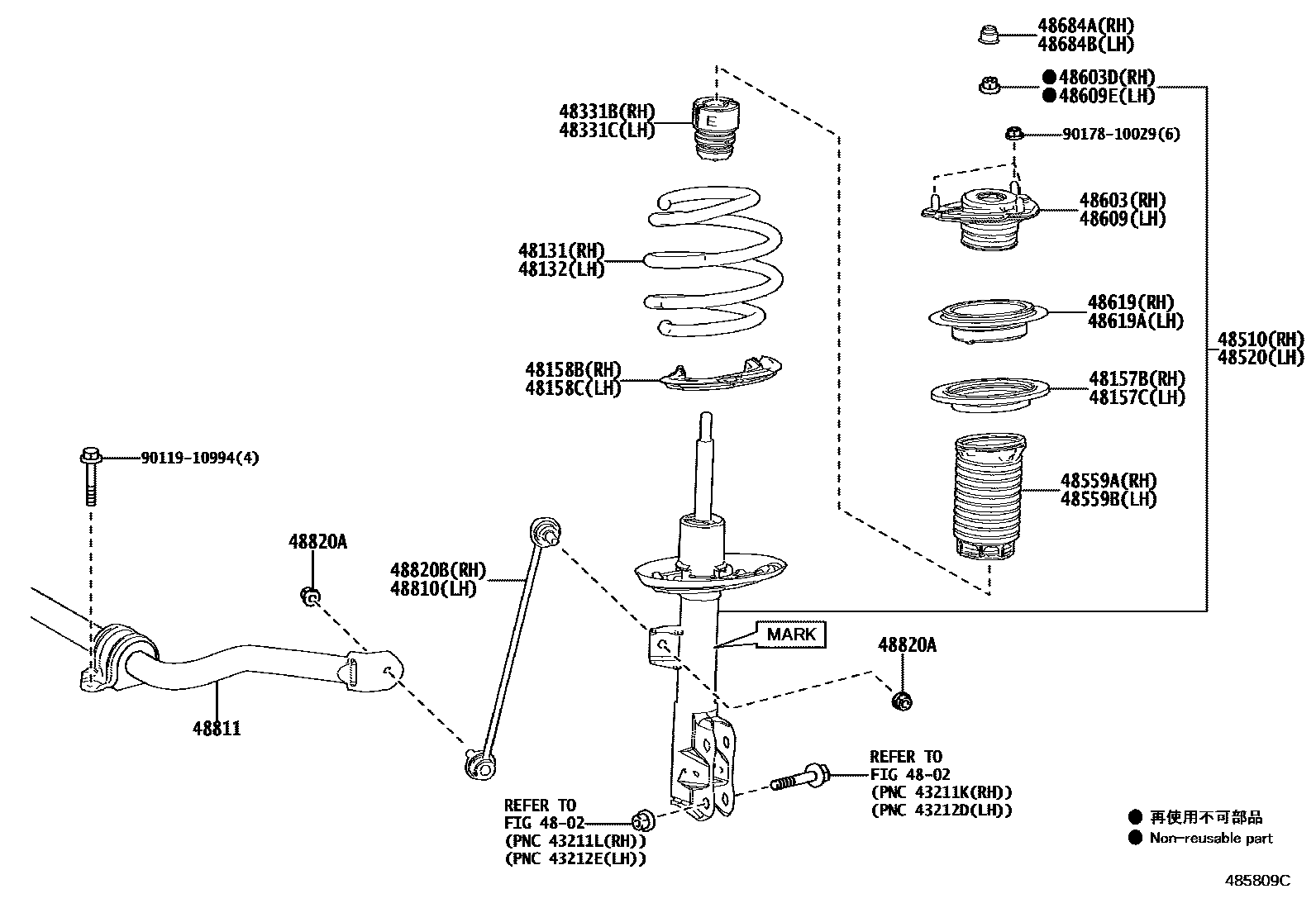

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-46090iXEBM1#202311

main48131-46110iXEBM15..L202403

48132SPRING, FRONT COIL, LH

main48131-46090iXEBM1#202311

main48131-46110iXEBM15..L202403

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33090iXEBM15202302-202311

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33090iXEBM15202302-202311

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iXEBM15202302-202311

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iXEBM15202302-202311

48331BBUMPER, FRONT SPRING, RH

main48331-42110iXEBM15202302-202311

48331CBUMPER, FRONT SPRING, LH

main48331-42110iXEBM1#202311

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80C91supersedes 48510-8Z602iXEBM15..L202403

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80834supersedes 48520-8Z423iXEBM15..L202403

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iXEBM1#202311

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iXEBM1#202311

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42090iXEBM15202302-202311

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iXEBM15202302-202311

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42090iXEBM1#202311

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iXEBM1#202311

48619BEARING, STRUT MOUNTING, RH

main48619-42040iXEBM15202302-202311

48619ABEARING, STRUT MOUNTING, LH

main48619-42040iXEBM1#202311

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iXEBM1#202311

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iXEBM1#202311

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42050iXEBM15202302-202311

48811BAR, STABILIZER, FRONT

main48804-42040iXEBM1#202311

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iXEBM1#202311

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42050iXEBM1#202311

9011910994

main90119-10994

9017810029

main90178-10029

27 parts on this diagram · 1 diagram in section
