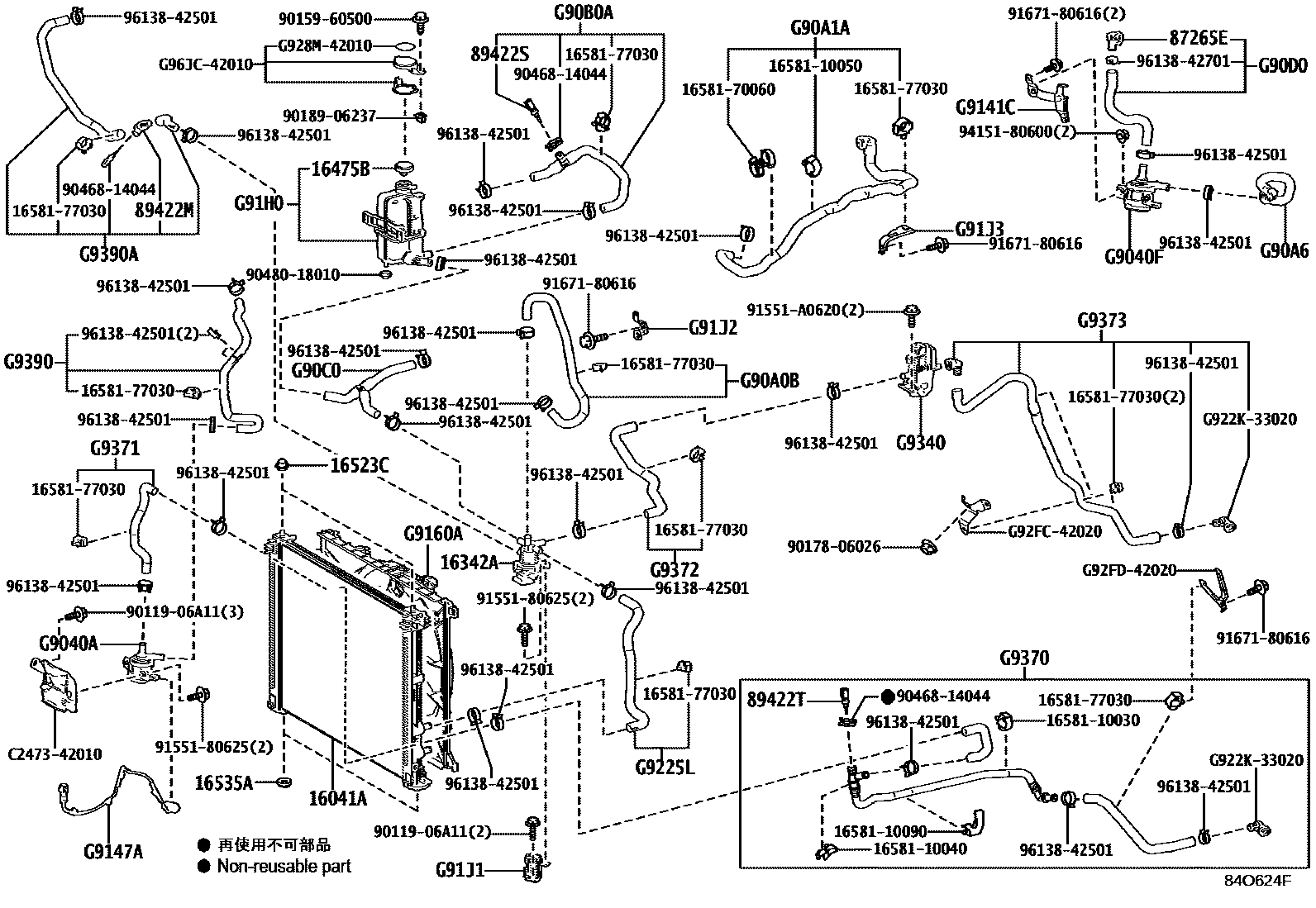

BEV COOLING

0001 1 0002 1 0003 1������� 0004 1������� 0005 1�����

16041ARADIATOR SUB-ASSY, L/CAP

main16041-10010iEM..XEAM10,YEAM15202203-202411

16342AVALVE, WATER CONTROL

main16342-10010iEM..XEAM10,YEAM15202412

16475BCAP, RESERVE TANK

main16475-28140iEM..XEAM10,YEAM15202412

16523CCUSHION, RADIATOR SUPPORT

main16523-37010×2iEM..XEAM10,YEAM15202412

16535ASUPPORT, RADIATOR, LOWER

main90480-40021×2iEM..XEAM10,YEAM15202412

87265ECONNECTOR, WATER HOSE

main87265-50010iXEAM10,YEAM15202412

89422MSENSOR, WATER TEMPERATURE

main89422-33040iXEAM10,YEAM15202412

89422SSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iXEAM10,YEAM15202412

89422TSENSOR, WATER TEMPERATURE, NO.3

main89422-33040iXEAM10,YEAM15202412

G9040APUMP ASSY, WATER W/MOTOR

mainG904042030iXEAM10,YEAM15202412

G9040FPUMP ASSY, WATER W/MOTOR, NO.2

mainG904042040iYEAM15202412

mainG904042050iXEAM10202412

G90A0BHOSE ASSY, INVERTER COOLING, NO.1

mainG90A242010iXEAM10,YEAM15202203-202411

G90A1AHOSE SUB-ASSY, INVERTER COOLING, NO.1

mainG90A142010iXEAM10202412

G90A6HOSE SUB-ASSY, INVERTER COOLING, NO.6

mainG90A642010iXEAM10,YEAM15202412

G90B0AHOSE ASSY, INVERTER COOLING, NO.2

mainG90A342010iXEAM10,YEAM15202203-202311

mainG90A342030iXEAM10,YEAM15202412

G90C0HOSE ASSY, INVERTER COOLING, NO.3

mainG90A442010iXEAM10,YEAM15202412

G90D0HOSE ASSY, INVERTER COOLING, NO.4

mainG90A542010iXEAM10,YEAM15202412

G9141CBRACKET, EV WATER PUMP

mainG914142030iYEAM15202412

mainG914142040iXEAM10202412

G9147AWIRE, WATER PUMP

mainG914742010iXEAM10,YEAM15202412

G9160AFAN ASSY, INVERTER COOLING W/MOTOR

mainG916042020iXEAM10,YEAM15202412

G91H0TANK ASSY, BATTERY RESERVE

mainG91H042040iXEAM10,YEAM15202412

G91J1BRACKET, INVERTER COOLING, NO.1

mainG91J142010iXEAM10,YEAM15202203-202311

mainG91J142030iXEAM10,YEAM15202412

G91J2BRACKET, INVERTER COOLING, NO.2

mainG91J242010iXEAM10,YEAM15202412

G91J3BRACKET, INVERTER COOLING, NO.3

mainG91J342010iXEAM10,YEAM15202412

G9225LHOSE, INVERTER COOLING, NO.1

mainG922542030iXEAM10,YEAM15202412

G9340HEATER ASSY, BATTERY COOLANT

mainG96H142020iXEAM10,YEAM15202412

G9370HOSE ASSY, EV WATER BY-PASS

mainG93G042010iXEAM10,YEAM15202412

G9371HOSE, EV WATER BY-PASS, NO.1

mainG937142010iXEAM10,YEAM15202412

G9372HOSE, EV WATER BY-PASS, NO.2

mainG937242010iXEAM10,YEAM15202203-202311

mainG93A042030iXEAM10,YEAM15202412

G9373HOSE, EV WATER BY-PASS, NO.3

mainG93A042010iXEAM10,YEAM15202412

G9390HOSE ASSY, EV WATER PUMP, NO.1

mainG938042010iXEAM10,YEAM15202412

G9390AHOSE ASSY, EV WATER PUMP, NO.2

mainG939042010iXEAM10,YEAM15202412

1658110030CLAMP, HOSE(FOR WATER HOSE)

main16581-10030

1658110040CLAMP, HOSE(FOR WATER HOSE)

main16581-10040

1658110050CLAMP, HOSE(FOR WATER HOSE)

main16581-10050

1658110090CLAMP, HOSE(FOR WATER HOSE)

main16581-10090

1658170060CLAMP, HOSE(FOR WATER HOSE)

main16581-70060

1658177030CLAMP, HOSE(FOR WATER HOSE)

main16581-77030

9011906A11

main90119-06A11

9015960500

main90159-60500

9017806026

main90178-06026

9018906237

main90189-06237

9046814044

main90468-14044

9048018010

main90480-18010

9155180625

main91551-80625

91551A0620

main91551-A0620

9167180616

main91671-80616

9415180600

main94151-80600

9613842501

main96138-42501

9613842701

main96138-42701

C247342010

mainC2473-42010

G922K33020CONNECTOR, HYBRID WATER HOSE

mainG922K-33020

G928M42010LABEL, BATTERY COOLANT CAUTION

mainG928M-42010

G92FC42020BRACKET, BATTERY COOLING, NO.1

mainG92FC-42020

G92FD42020BRACKET, BATTERY COOLING, NO.2

mainG92FD-42020

G96JC42010

mainG96JC-42010

56 parts on this diagram · 5 diagrams in section
