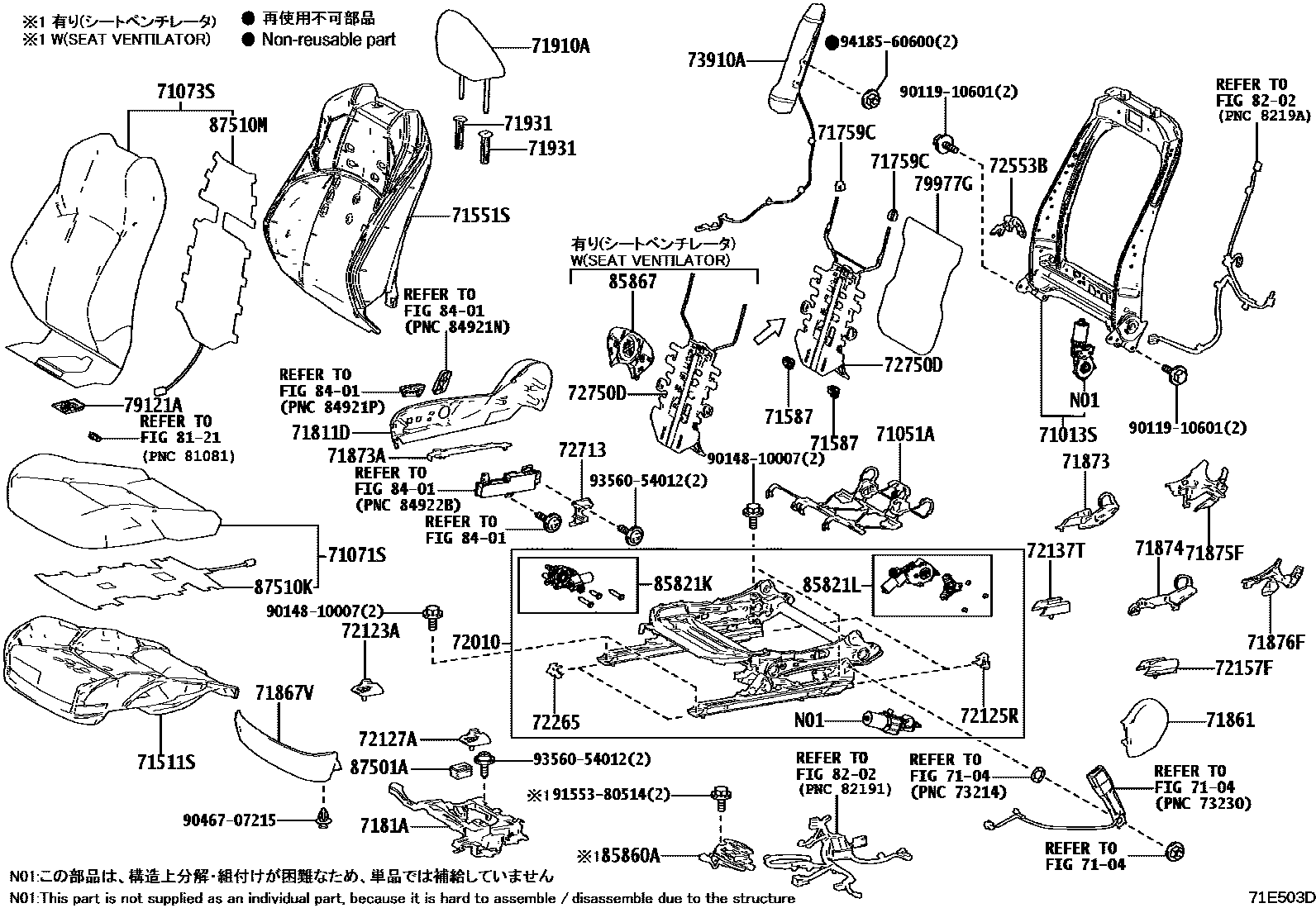

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
LT.GRAY,TRIM1#
BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759CHOOK, FRONT SEATBACK, NO.1
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71867VSHIELD, FRONT SEAT CUSHION, FRONT RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
BLACK,TRIM1#,2#
BLACK,TRIM2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
BLACK,TRIM1#,2#
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
LT.GRAY,TRIM1#
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72265COVER, SEAT TRACK UPPER RAIL, RH
72553BPROTECTOR, RECLINING COVER, RH
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
79121ABRACKET, FRONT SEAT CUSHION, RH
79977GFELT, FRONT SEATBACK, RH
8121
8202
8401
85821KMOTOR ASSY, POWER SEAT TILT, RH
85821LMOTOR ASSY, POWER SEAT LIFTER, RH
85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
9011910601
main90119-10601
9014810007
main90148-10007
9046707215
main90467-07215
9155380514
main91553-80514
9356054012
main93560-54012
9418560600
main94185-60600
49 parts on this diagram · 4 diagrams in section
