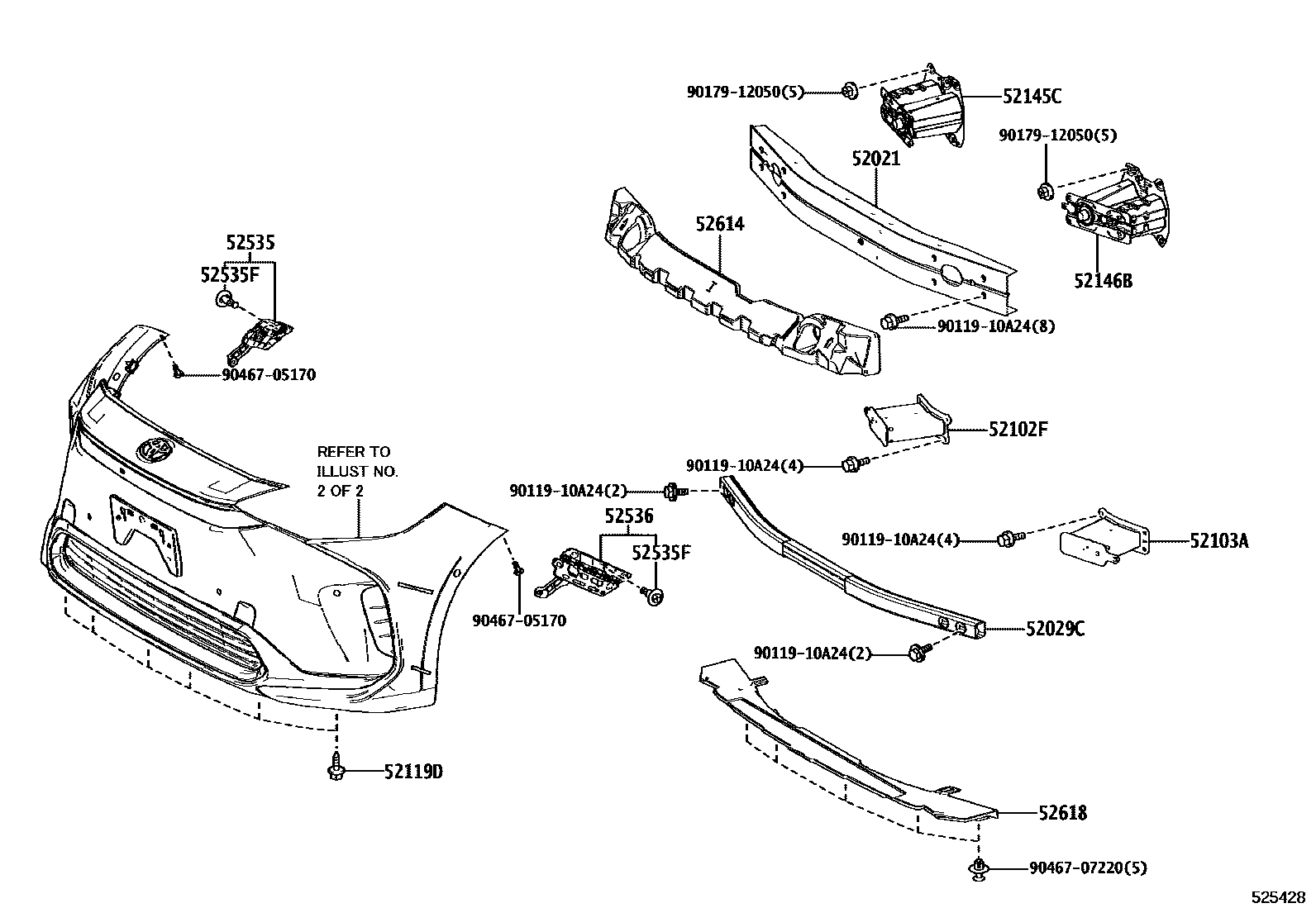

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-42240iXEAM10,YEAM15202203-202411

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-42120iXEAM10,YEAM15202203-202411

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0R100iXEAM10,YEAM15202203-202411

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0R100iXEAM10,YEAM15202203-202411

52119DSCREW, NO.1

main90159-60477iXEAM10,YEAM15202203-202411

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main57107-42040iXEAM10,YEAM15202203-202411

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main57108-42040iXEAM10,YEAM15202203-202411

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42040iXEAM10,YEAM15202412

main52535-42040iXEAM10,YEAM15202203-202411

52535FCLIP, FRONT BUMPER SIDE RETAINER

main90467-09237iXEAM10,YEAM15202203-202411

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42060iXEAM10,YEAM15202412

main52536-42060iXEAM10,YEAM15202203-202411

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42160iXEAM10,YEAM15202203-202411

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42100iXEAM10,YEAM15202203-202411

9011910A24

main90119-10A24

9017912050

main90179-12050

9046705170

main90467-05170

9046707220

main90467-07220

16 parts on this diagram · 2 diagrams in section
