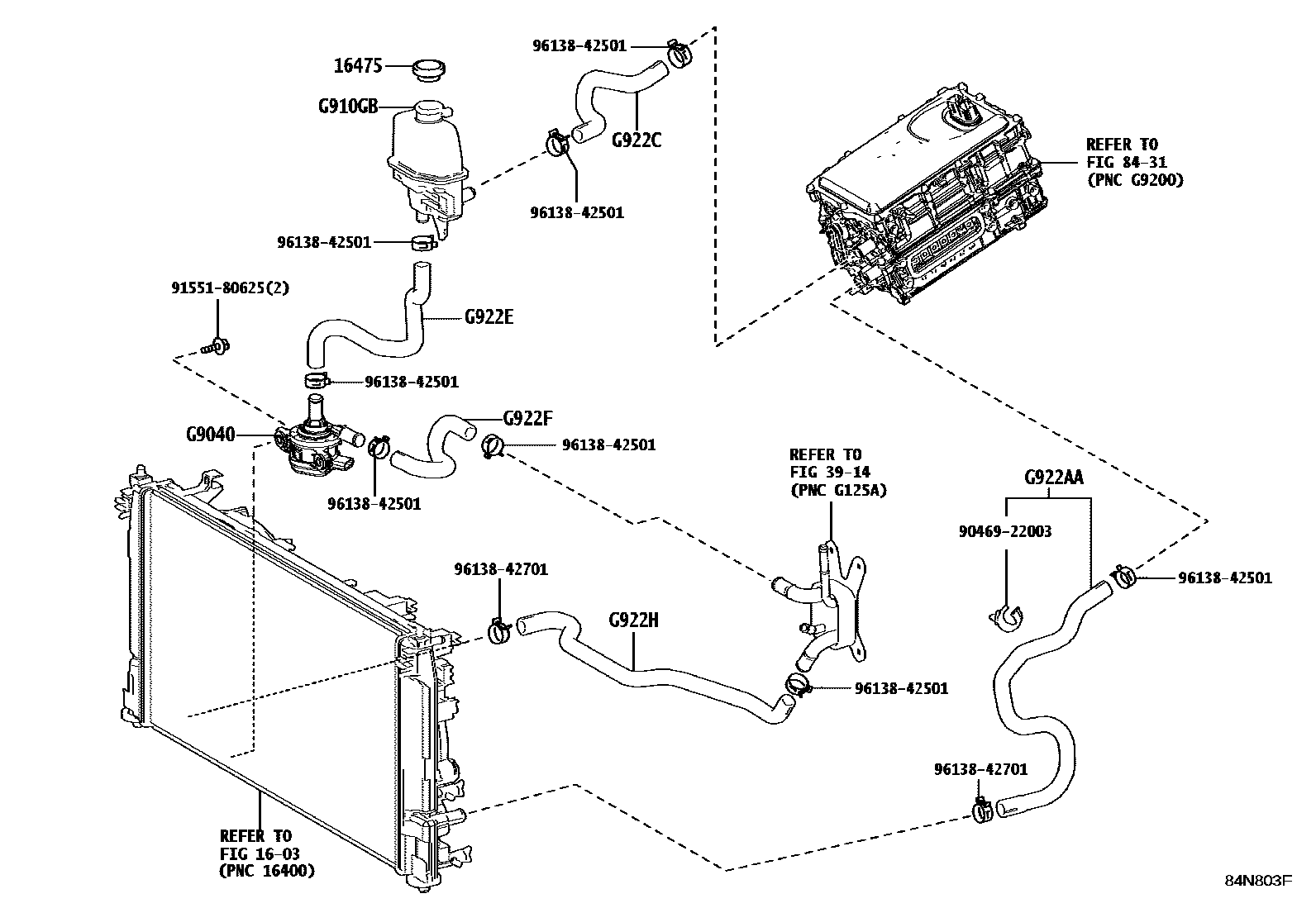

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZVG1#202108-202310

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iZVG1#202310

mainG904047040iZVG1#202108-202310

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G12010iZVG1#202108-202310

mainG910G16010iZVG1#202310

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iZVG1#202310

mainG922A47010iZVG1#202108-202310

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZVG1#202310

mainG922C47010iZVG1#202108-202310

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16030iZVG1#202310

mainG922E47010iZVG1#202108-202310

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZVG1#202108-202310

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iZVG1#202310

mainG922H47010iZVG1#202108-202310

9046922003

main90469-22003

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

15 parts on this diagram · 2 diagrams in section
