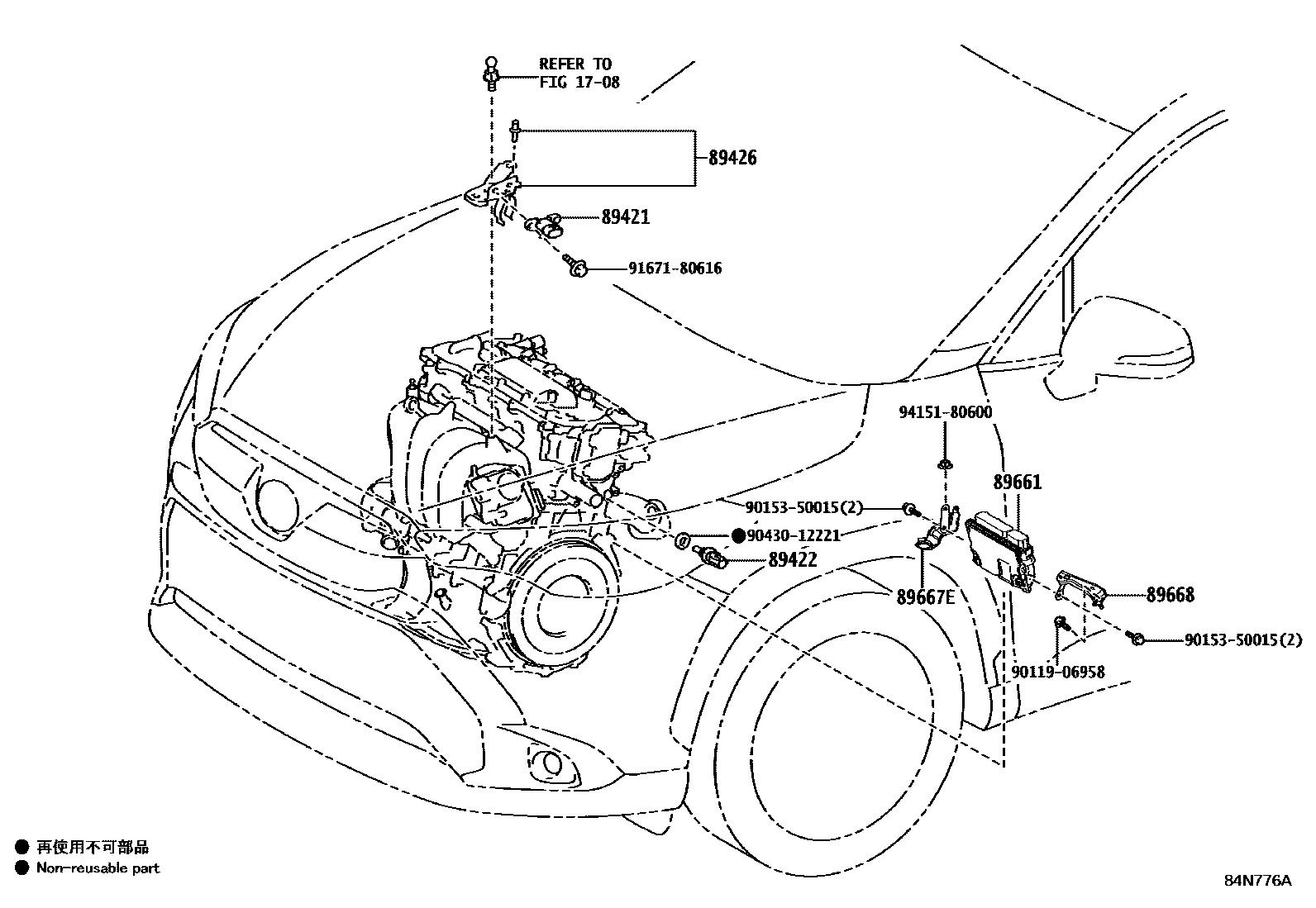

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVG1#202310

main89421-33010iMXGA10202310

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVG1#202310

89426BRACKET, VACUUM SENSOR

main89426-13020iZSG10202108-202310

89661COMPUTER, ENGINE CONTROL

main89661-12W10iZVG11202108-202310

main89661-12Z20iZVG15202108-202310

main89661-16760iZSG10202108-202310

main89661-16820iZVG1#202310

main89661-16830iMXGA10202310

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350iMXGA10202310

main89667-12360iZSG10202108-202310

main89667-12370iZVG1#202108-202310

main89667-47120iZVG1#202310

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMXGA10202310

main89668-12290iZSG10202108-202310

main89668-47050iZVG1#202108-202310

main89668-47070iZVG1#202310

9011906958

main90119-06958

9015350015

main90153-50015

9043012221

main90430-12221

9167180616

main91671-80616

9415180600

main94151-80600

12 parts on this diagram · 4 diagrams in section
