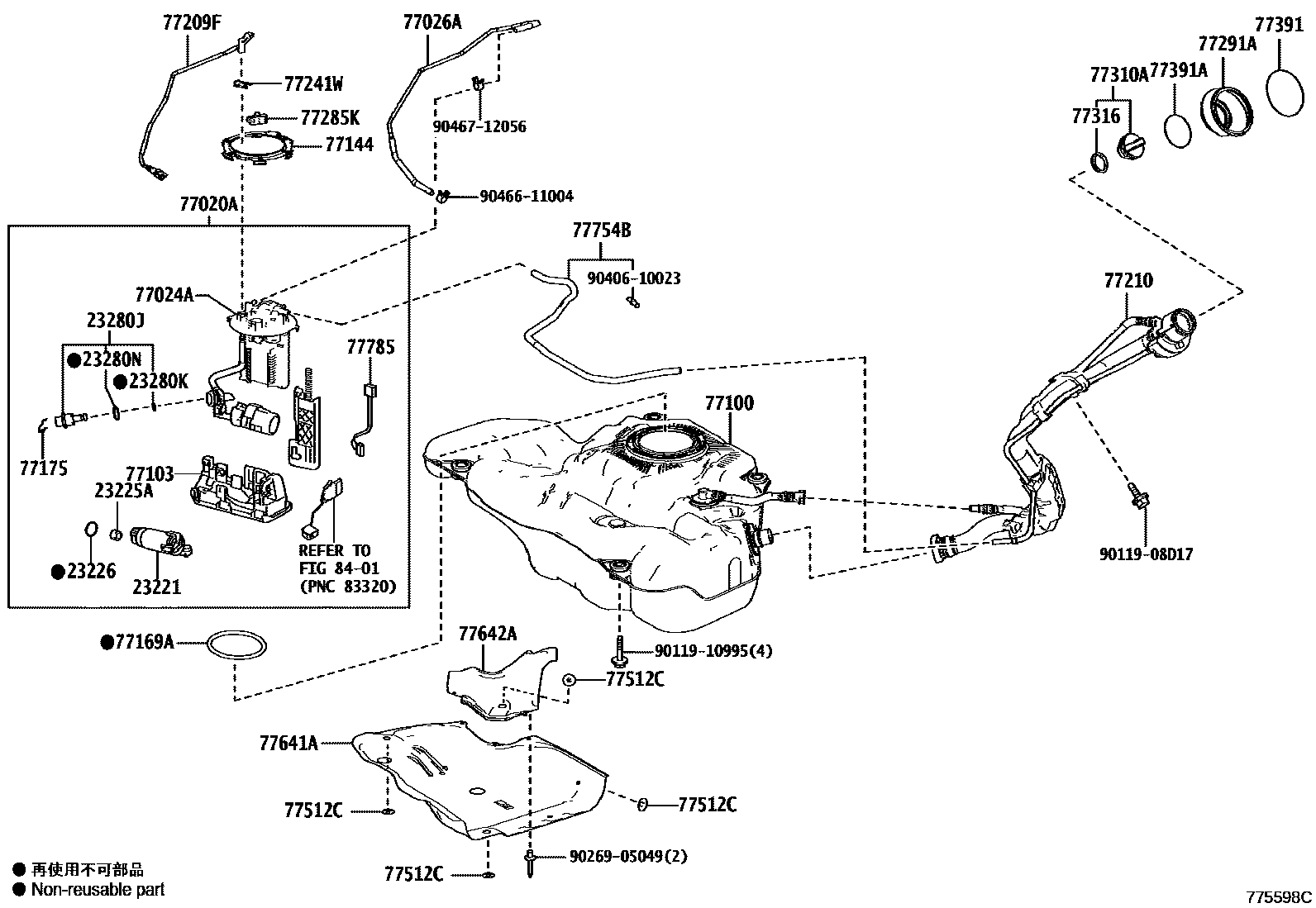

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1�������� 0007 1�������� 0008 1�������� 0009 1�������� 0010 1���������� 0011 1���������� 0012 1���������� 0013 1���������� 0014 1���������� 0015 1���������� 0016 1��������������

23221PUMP, FUEL

main23210-37010i2ZRFAE..ZSG10202108-202310

main23210-37020i2ZRFXE..ZVG1#202108-202310

main23221-24010iM20AFKS..MXGA10202310

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVG1#202310

23226RING, O(FOR FUEL PUMP)

main90301-08020i2ZRFXE..ZVG1#202310

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZVG1#202310

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFXE..ZVG1#202310

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i2ZRFXE..ZVG1#202310

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-12A60iZVG16202310

main77020-12B30iMXGA10202310

main77020-16230iZSG10202108-202310

main77020-16240iZVG13202310

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10020iZVG16202310

main77024-12380iMXGA10202310

main77024-16070iZVG13202310

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-12070iMXGA10202310

main77026-16010iZVG13202310

main77026-16020iZSG10202108-202310

main77026-47040iZVG15202108-202310

77100TANK ASSY, FUEL

main77001-16310iZVG11202108-202208

main77001-16320iZSG10202108-202208

main77001-16330iMXGA10202310

main77001-16340iZVG13202310

main77001-16350iZVG15202108-202310

77103SUB-TANK SUB-ASSY, FUEL

main77103-12130iZSG10,ZVG15202108-202310

main77103-12140iZVG11202108-202310

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iZSG10,ZVG1#202108-202310

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iZSG10,ZVG11202108-202310

main77169-47040iZVG16202310

77175SUPPORT, FUEL SUCTION, NO.2

main77175-78010iZVG1#202310

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12390iMXGA10202310

main77209-16100iZVG13202310

main77209-16110iZSG10202108-202310

main77209-76050iZVG16202310

77210PIPE ASSY, FUEL TANK FILLER

main77210-16210iZSG10,ZVG11202108-202208

main77210-16220iZVG15202108-202208

77241WCLIP, TUBE JOINT

main77241-33011iZSG10,ZVG1#202108-202111

main77241-60550iMXGA10,ZVG1#202310

77285KCLAMP, FUEL TUBE, NO.1

main77285-16160iZVG13202310

main77285-30350iZSG10,ZVG15202108-202310

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-16130iMXGA10,ZVG1#202310

77310ACAP ASSY, FUEL TANK

main77300-12020iMXGA10,ZVG1#202310

77316GASKET, FUEL TANK CAP

main77316-52040iZSG10,ZVG1#202108-202310

77391RING, FUEL INLET BOX

main77391-42010iMXGA10,ZVG1#202310

77391ARING, FUEL INLET BOX

main77391-12020iMXGA10,ZVG1#202310

77512CBRACKET, FUEL TANK

main77512-35140×3iMXGA10,ZVG16202310

77641APROTECTOR, FUEL TANK, NO.1

main77641-16040iMXGA10202310

main77641-16050iZVG11202108-202310

main77641-47070iZVG16202310

77642APROTECTOR, FUEL TANK, NO.2

main77642-16020iZSG10202108-202310

main77642-16030iZVG11202108-202310

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-16090iZVG13202310

main77754-16100iZSG10202108-202310

main77754-16120iZVG16202401

main77754-47090iZVG15202108-202310

77785HARNESS, FUEL PUMP

main77785-12010iZVG15202108-202310

main77785-52141iZVG13202310

main77785-76010iMXGA10202310

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9026905049

main90269-05049

9040610023

main90406-10023

9046611004

main90466-11004

9046712056

main90467-12056

35 parts on this diagram · 16 diagrams in section
