ARMREST & VISOR

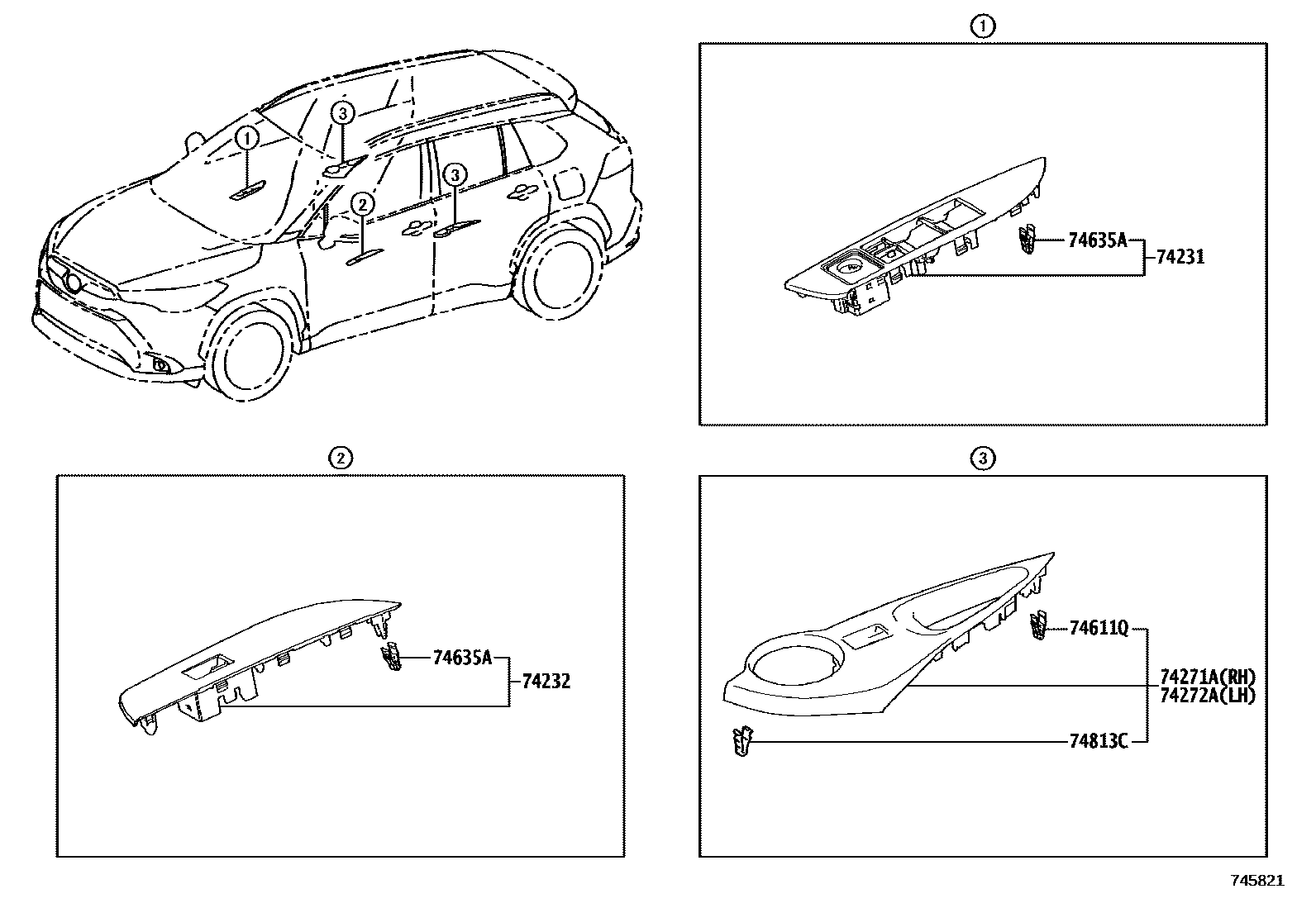

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12E30i202108-202310

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12B00i202108-202310

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-16010i202108-202310

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-16010i202108-202310

74611QCLIP

main90467-10203i202108-202310

74635ACLIP

main90467-10203i202108-202310

74813CCLIP

main90467-12080i202108-202310

7 parts on this diagram · 2 diagrams in section
