REAR SEAT & SEAT TRACK

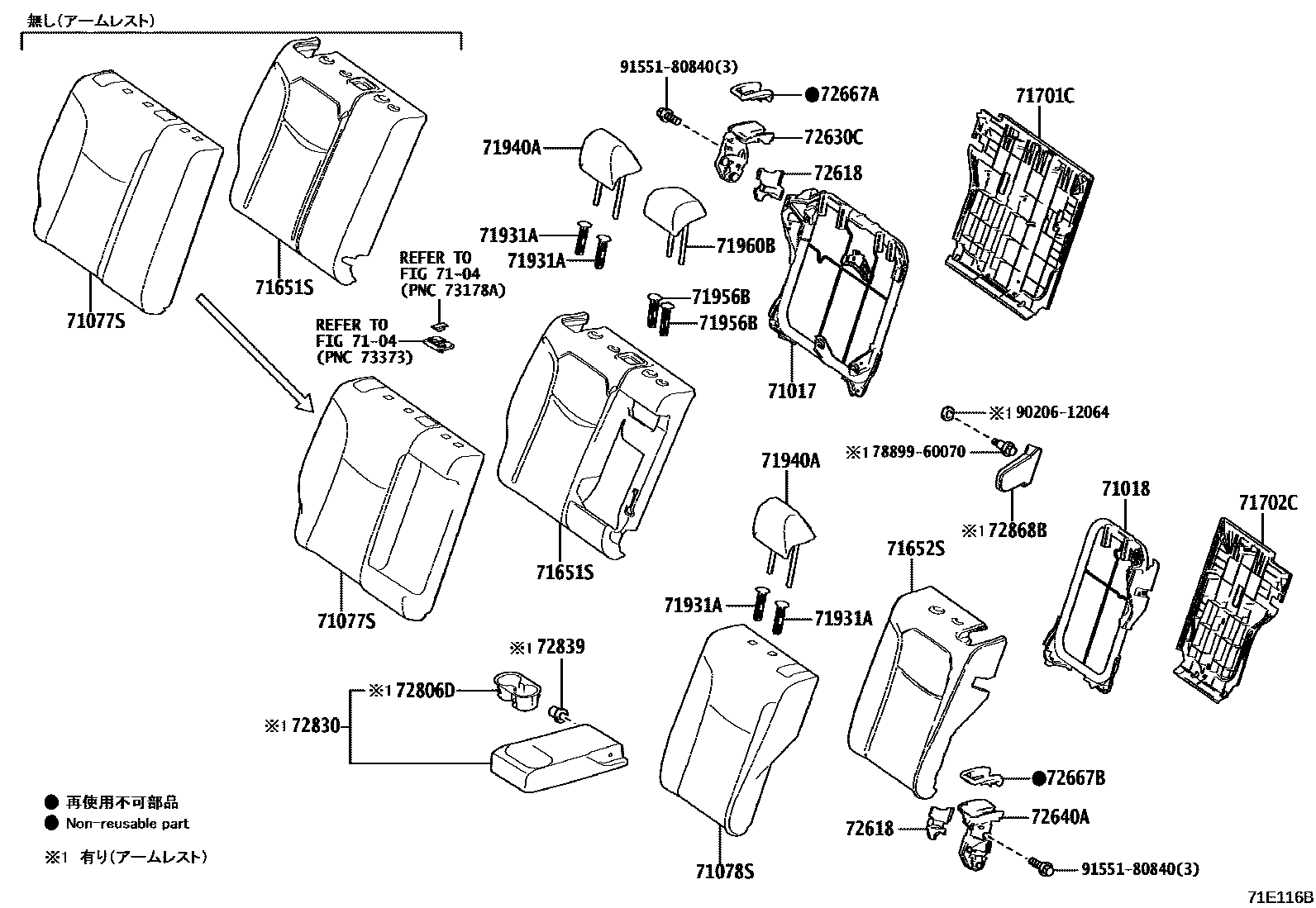

Parts diagram

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-16290i202108-202310

main71017-16300i202310

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-16150i202108-202310

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-16A00-C0i202108-202302

BLACK,TRIM2#

main71077-16A01-C0i202310

BLACK,TRIM2#

main71077-16A10-C0i202108-202207

BLACK,TRIM2#

main71077-16A10-C1i202207-202302

BLACK,TRIM2#

main71077-16A11-C1i202310

BLACK/MEDIUM GRAY,TRIM2#

main71077-16A30-C2i202108-202207

BLACK,TRIM2#

main71077-16A30-C3i202207-202302

BLACK,TRIM2#

main71077-16A31-C3i202302-202310

BLACK/DK.GRAY/MEDIUM GRAY,TRIM2#

main71077-16A31-C4i202310

BLACK/BLUE/MD.GRAY,TRIM8#

main71077-16A90-C0i202108-202302

main71077-16A91-C0i202302-202310

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-16A00-C0i202108-202207

BLACK,TRIM2#

main71078-16A00-C2i202207-202302

BLACK,TRIM2#

main71078-16A01-C2i202310

BLACK/MEDIUM GRAY,TRIM2#

main71078-16A20-C2i202108-202207

BLACK,TRIM2#

main71078-16A20-C3i202207-202302

BLACK,TRIM2#

main71078-16A21-C3i202302-202310

BLACK/DK.GRAY/MEDIUM GRAY,TRIM2#

main71078-16A21-C4i202310

BLACK/BLUE/MD.GRAY,TRIM8#

main71078-16A40-C0i202108-202302

main71078-16A41-C0i202310

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-16400i202108-202310

main71651-16410i202310

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-16190i202310

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-16010i202310

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-16010i202310

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5×2i202310

main71931-47030-C4×2i202310

71940AHEADREST ASSY, REAR SEAT

main71940-16090-C0×2i202108-202207

BLACK,TRIM2#

main71940-16090-C2×2i202310

BLACK,TRIM2#

main71940-16100-C2×2i202108-202207

BLACK,TRIM2#

main71940-16100-C3×2i202310

BLACK,TRIM2#

main71940-16100-C4×2i202310

BLACK/MD.GRAY,TRIM8#

main71940-16130-C0×2i202108-202310

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-C5i202310

main71931-47030-C4i202310

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-16020-C0i202108-202207

BLACK,TRIM2#

main71960-16020-C2i202207-202310

BLACK,TRIM2#

main71960-16030-C3i202108-202207

BLACK,TRIM2#

main71960-16030-C4i202207-202310

BLACK,TRIM2#

main71960-16030-C5i202310

BLACK/MD.GRAY,TRIM8#

main71960-12880-C0i202310

72618PROTECTOR, REAR SEATBACK LOCK STRIKER

main72618-16020i202310

main72618-16030i202310

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-16250-C1i202310

BLACK,TRIM2#,8#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-16170-C1i202310

BLACK,TRIM2#,8#

72667ABEZEL, REAR SEATBACK LOCK, UPPER RH

main72667-16010-C1i202310

BLACK,TRIM2#,8#

72667BBEZEL, REAR SEATBACK LOCK, UPPER LH

main72667-16020-C1i202310

BLACK,TRIM2#,8#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-47010-C1i202310

BLACK,TRIM2#,8#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-16010-C0i202310

BLACK,TRIM2#

main72830-16020-C1i202310

BLACK,TRIM2#,8#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010i202310

72868BCOVER, CENTER ARMREST HINGE

main72868-12080-C0i202310

BLACK,TRIM2#,8#

7889960070BOLT, FRONT SEAT

main78899-60070

9020612064

main90206-12064

9155180840

main91551-80840

25 parts on this diagram · 3 diagrams in section
