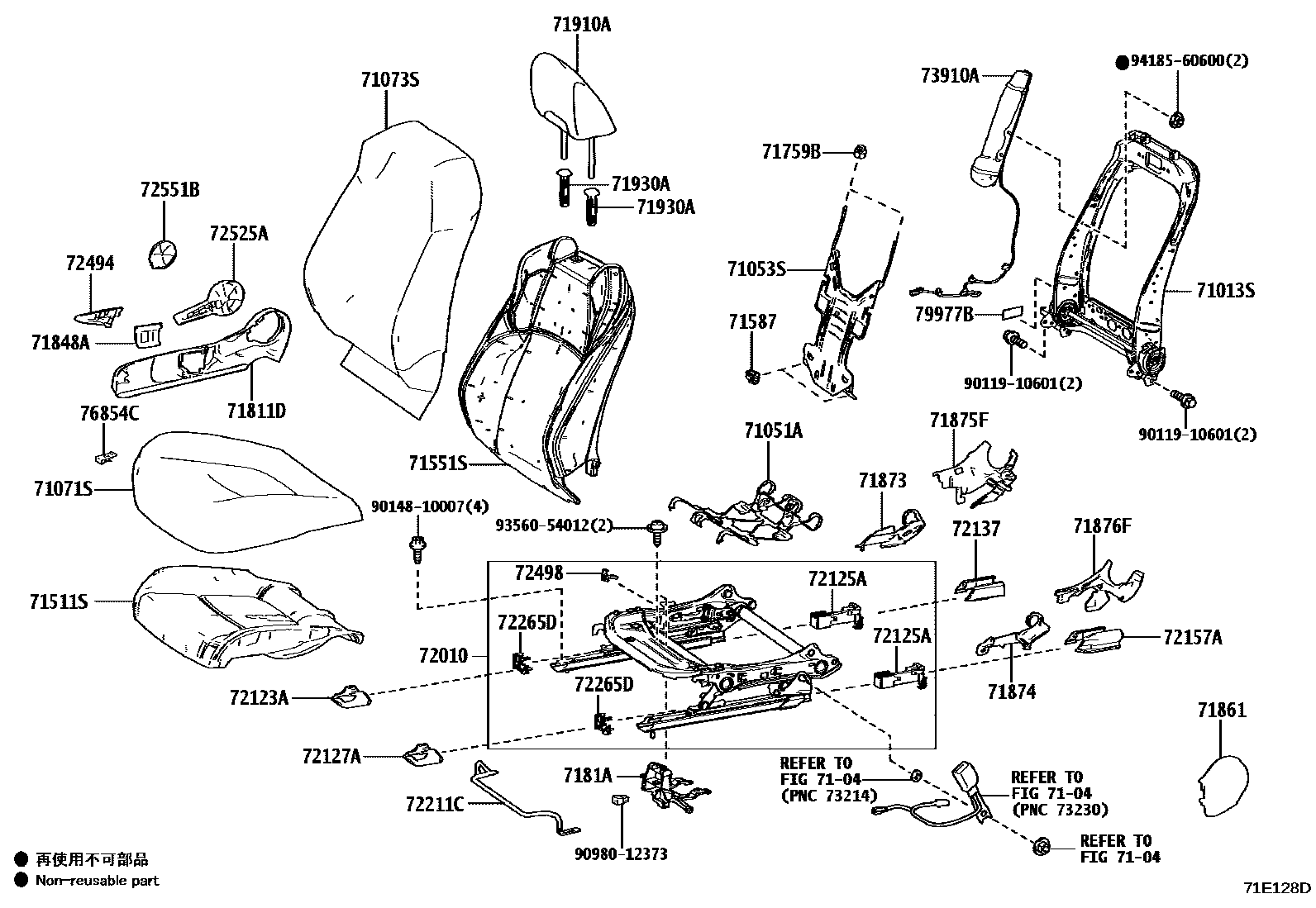

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/BLUE/MD.GRAY,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/BLUE/MD.GRAY,TRIM8#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM2#,8#
BLACK,TRIM1#,2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71848ACAP, SEAT ADJUSTER COVER, RH
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/MD.GRAY,TRIM8#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
72125ACOVER, SEAT TRACK, UPPER REAR
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137COVER, SEAT TRACK, OUTER RH
72157ACOVER, SEAT TRACK BRACKET, INNER RH
72211CHANDLE, SEAT TRACK ADJUSTING
72265DCOVER, SEAT TRACK UPPER RAIL
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM2#
72498COVER, VERTICAL ADJUSTER BRACKET
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
BLACK,TRIM2#
72551BCOVER, RECLINING HINGE, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
76854CRETAINER, FRONT SEAT CUSHION COVER
79977BFELT, SEATBACK FRAME
9011910601
9014810007
9098012373
9356054012
9418560600
40 parts on this diagram · 3 diagrams in section
