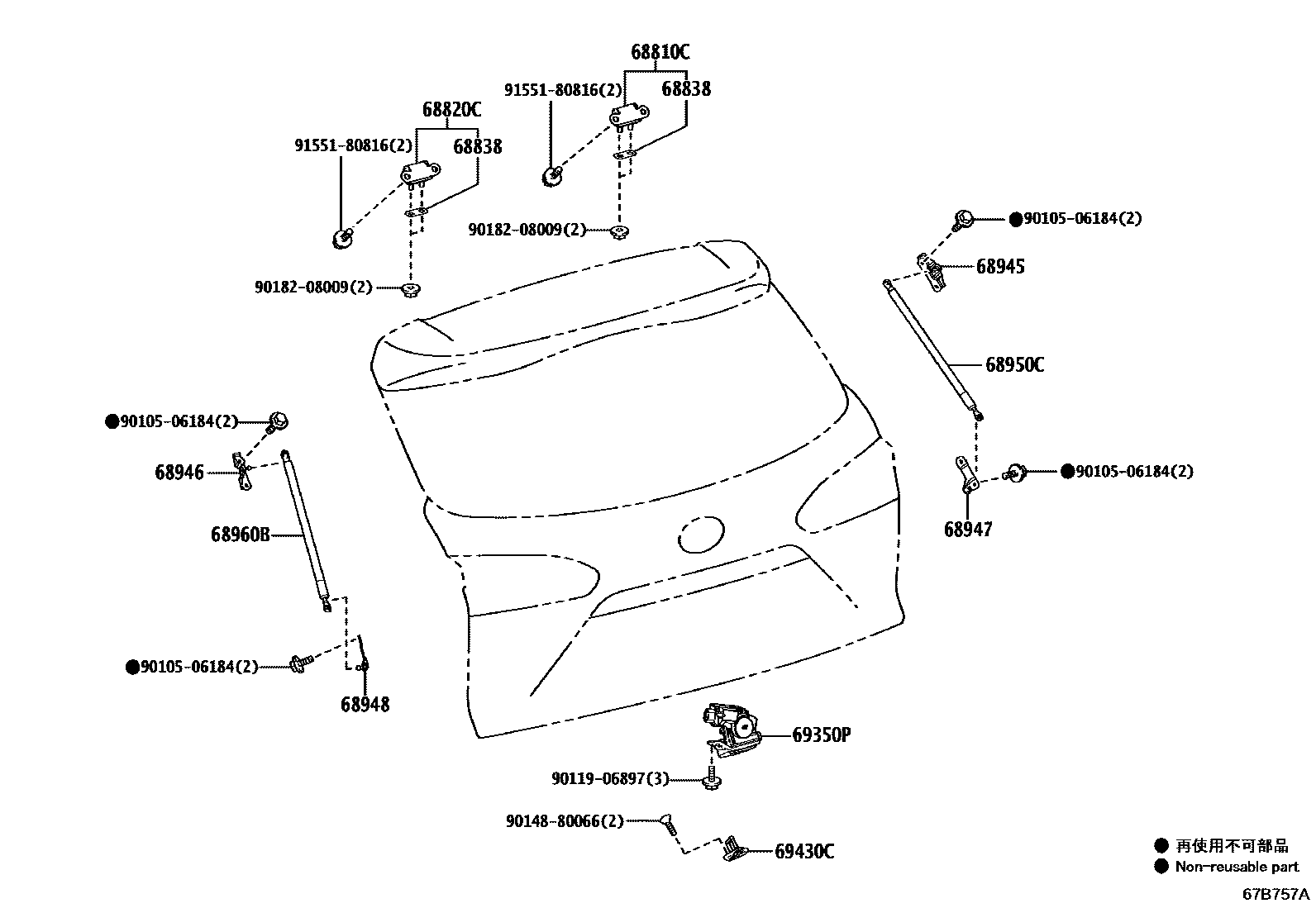

BACK DOOR LOCK & HANDLE

0001 1��(�����������) 0002 1��(�����������)

68810CHINGE ASSY, BACK DOOR, RH

main68810-16050iMXGA10,ZVG1#202310

68820CHINGE ASSY, BACK DOOR, LH

main68810-16050iZSG10,ZVG1#202108-202310

68838PAD, BACK DOOR HINGE, NO.1

main68838-42010×2iZSG10,ZVG1#202108-202310

main68838-42020×2iMXGA10,ZVG1#202310

main68838-42030×2iZSG10,ZVG1#202108-202310

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-16010iMXGA10,ZVG1#..G,S202310

main68945-16020iZSG10,ZVG1#..Z202108-202310

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-16010iZSG10,ZVG1#..G,S202108-202310

main68946-16020iZSG10,ZVG1#..Z202108-202310

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-16030iZSG10,ZVG1#202108-202310

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-16030iMXGA10,ZVG1#202310

68950CSTAY ASSY, BACK DOOR, RH

main68950-0A040iMXGA10,ZVG1#..G,S202310

68960BSTAY ASSY, BACK DOOR, LH

main68960-0A040iMXGA10,ZVG1#..G,S202310

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42070iMXGA10,ZVG1#..G,S202310

main69350-78090iZSG10,ZVG1#..Z202108-202310

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iZSG10,ZVG1#202108-202310

9010506184

main90105-06184

9011906897

main90119-06897

9014880066

main90148-80066

9018208009

main90182-08009

9155180816

main91551-80816

16 parts on this diagram · 2 diagrams in section
