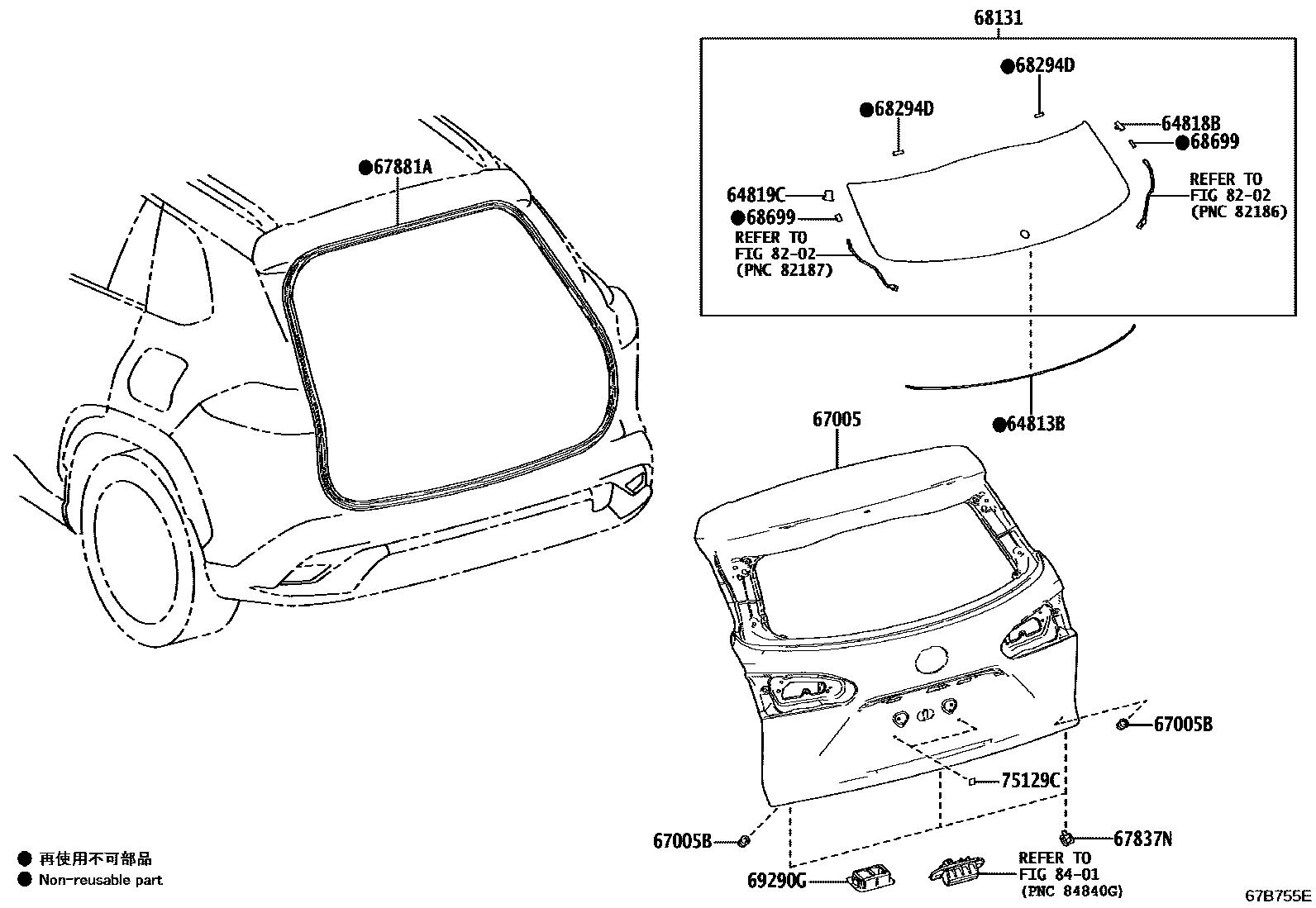

BACK DOOR PANEL & GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2
68699SPACER, BACK DOOR WINDOW FRAME
69290GBASE ASSY, GLIDE DOOR INSIDE HANDLE
BLACK,TRIM1#,2#
BLACK,TRIM2#,8#
75129CCUSHION, REAR LICENCE PLATE
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
14 parts on this diagram · 2 diagrams in section
