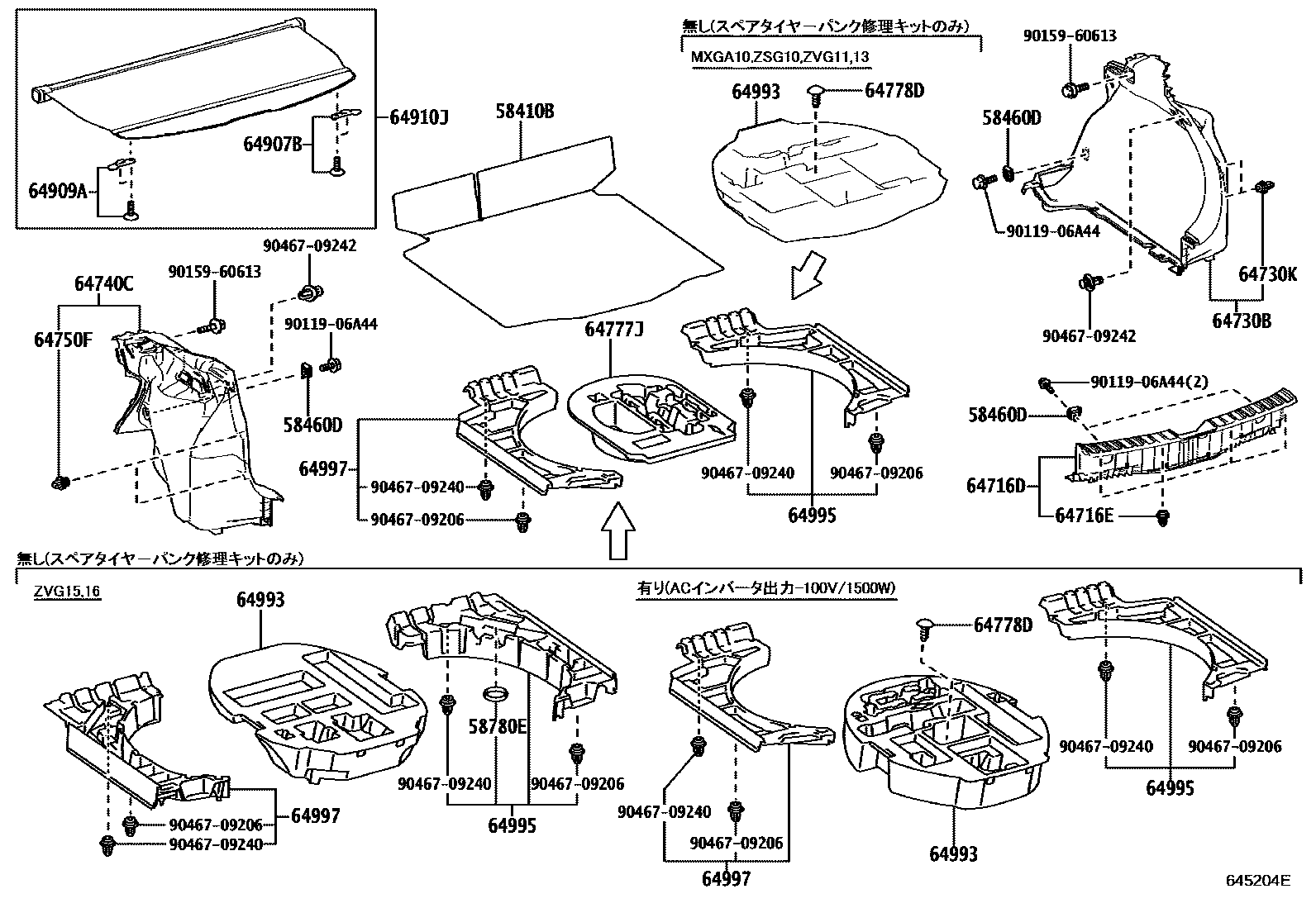

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-16030-C0iZVG15202108-202310

BLACK,TRIM1#,2#

main58410-16020-C0supersedes 58410-16010-C0iZVG13..G,S202310

main58410-WY010iMXGA10,ZVG1#202310

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×4iMXGA10,ZVG1#202310

58780EBAND ASSY, TOOL BOX

main58781-52010iZVG16202310

64716DCOVER, DECK TRIM, REAR

main64716-16110-C0iMXGA10,ZVG1#..G,S202310

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iMXGA10,ZVG1#202310

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-16040-C0iMXGA10,ZVG1#..G,S202310

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×2iMXGA10,ZVG1#202310

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-16040-C0iMXGA10,ZVG1#..G,S202310

BLACK,TRIM2#

main64740-16060-C0iZVG1#..G,S202310

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×2iZSG10,ZVG1#202108-202310

64777JCUSHION, SPARE WHEEL

main64777-16050iMXGA10,ZVG13202310

64778DPROTECTOR, SPARE WHEEL

main64778-52160iZSG10,ZVG11202108-202310

64907BSTOPPER SUB-ASSY, TONNEAU COVER, RH

main64907-48010iMXGA10,ZVG1#202310

64909ASTOPPER SUB-ASSY, TONNEAU COVER, LH

main64909-48010iMXGA10,ZVG1#202310

64910JCOVER ASSY, TONNEAU

main64910-16010-C0iMXGA10,ZVG1#..G,S202310

64993BOX, DECK FLOOR, REAR

main64993-16020iMXGA10,ZVG13202310

main64993-16040iZVG15202108-202310

main64993-16060iZVG16202310

main64993-16030iZVG13202310

64995BOX, DECK FLOOR, RH

main64995-16020-C0iZVG16..Z202310

BLACK,TRIM2#

main64995-16010-C0iMXGA10,ZVG13..Z202310

64997BOX, DECK FLOOR, LH

main64997-16020-C0iZVG15202108-202310

BLACK,TRIM1#,2#

main64997-16030-C0iZVG16..Z202310

BLACK,TRIM2#

main64997-16010-C0iMXGA10,ZVG13..Z202310

9011906A44

main90119-06A44

9015960613

main90159-60613

9046709206

main90467-09206

9046709240

main90467-09240

9046709242

main90467-09242

22 parts on this diagram · 1 diagram in section
