OIL COOLER & TUBE (HEV OR BEV OR FCEV)

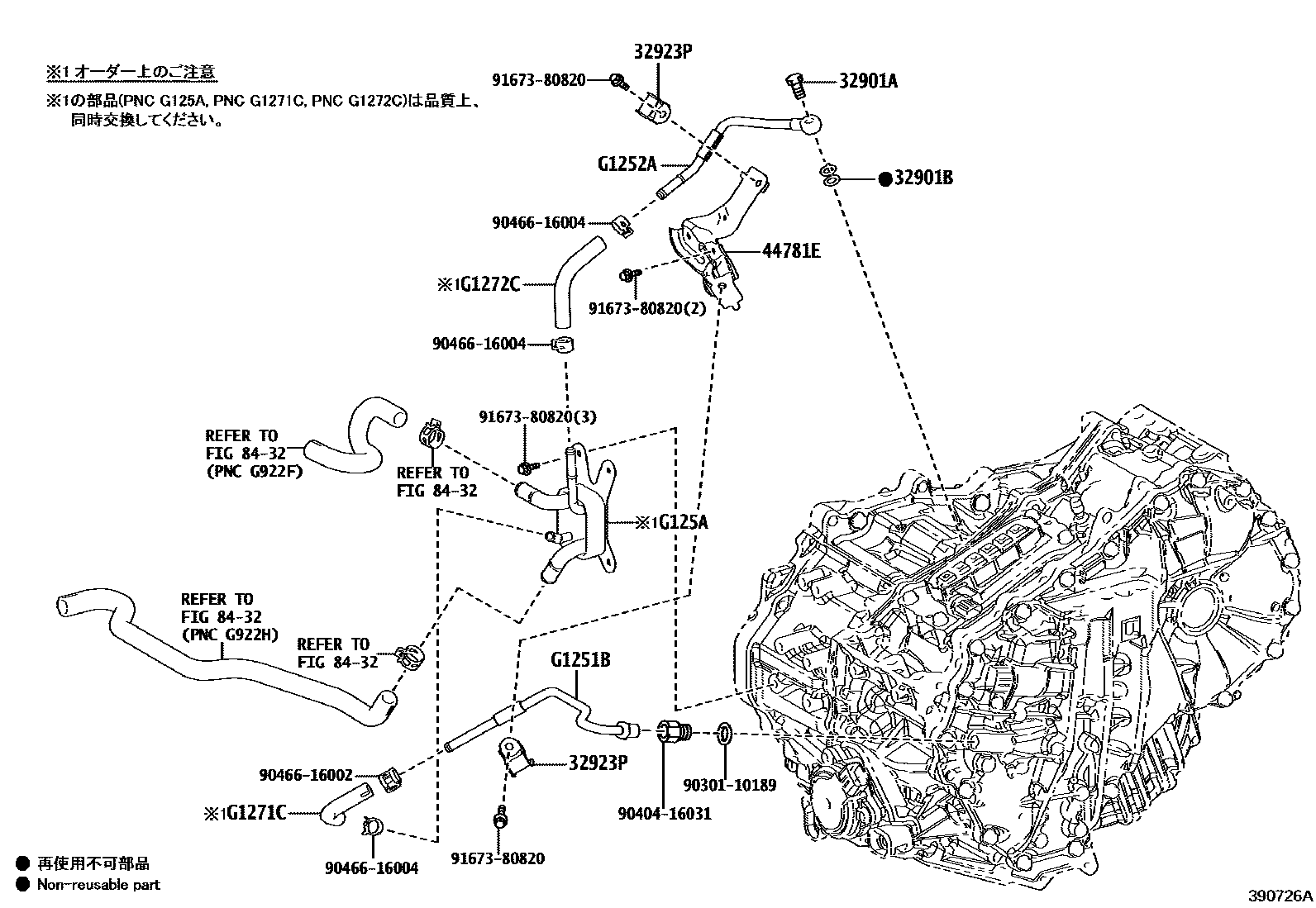

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i202108-202310

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i202108-202310

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i202108-202310

44781EBRACKET, HOSE

main44781-47010i202108-202310

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125147010i202108-202310

G1252APIPE, MOTOR COOLING, NO.2

mainG125247010i202108-202310

G125ACOOLER, MOTOR COOLING

mainG125A47010i202108-202310

G1271CHOSE, MOTOR COOLING, NO.1

mainG127147010i202108-202310

G1272CHOSE, MOTOR COOLING, NO.2

mainG127247010i202108-202310

9030110189

main90301-10189

9040416031

main90404-16031

9046616002

main90466-16002

9046616004

main90466-16004

9167380820

main91673-80820

15 parts on this diagram · 1 diagram in section
