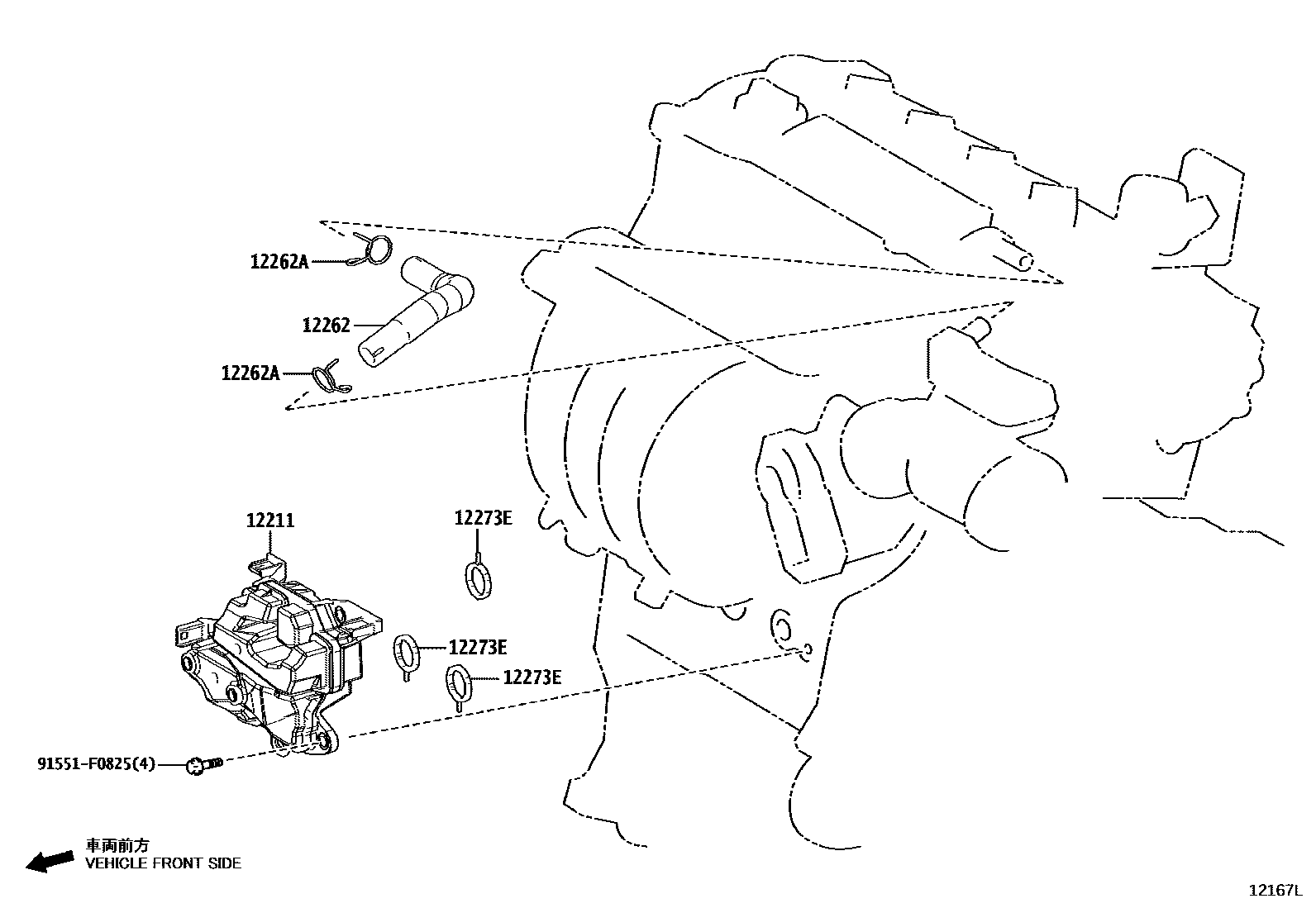

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12211CASE, VENTILATION, NO.1

main12211-24020iM20AFKS..MXGA10202310-202311

main12211-37010i2ZRFXE..ZVG1#202310

12262HOSE, VENTILATION, NO.2

main12262-24020iM20AFKS..MXGA10202310

main12262-37020i2ZRFAE..ZSG10202108-202310

main12262-37060i2ZRFXE..ZVG1#202108-202310

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZR#..ZSG10,ZVG1#202108-202310

12273EGASKET(FOR VENTILATION CASE)

main12273-24010×3iM20AFKS..MXGA10202310-202311

91551F0825

main91551-F0825

5 parts on this diagram · 4 diagrams in section
