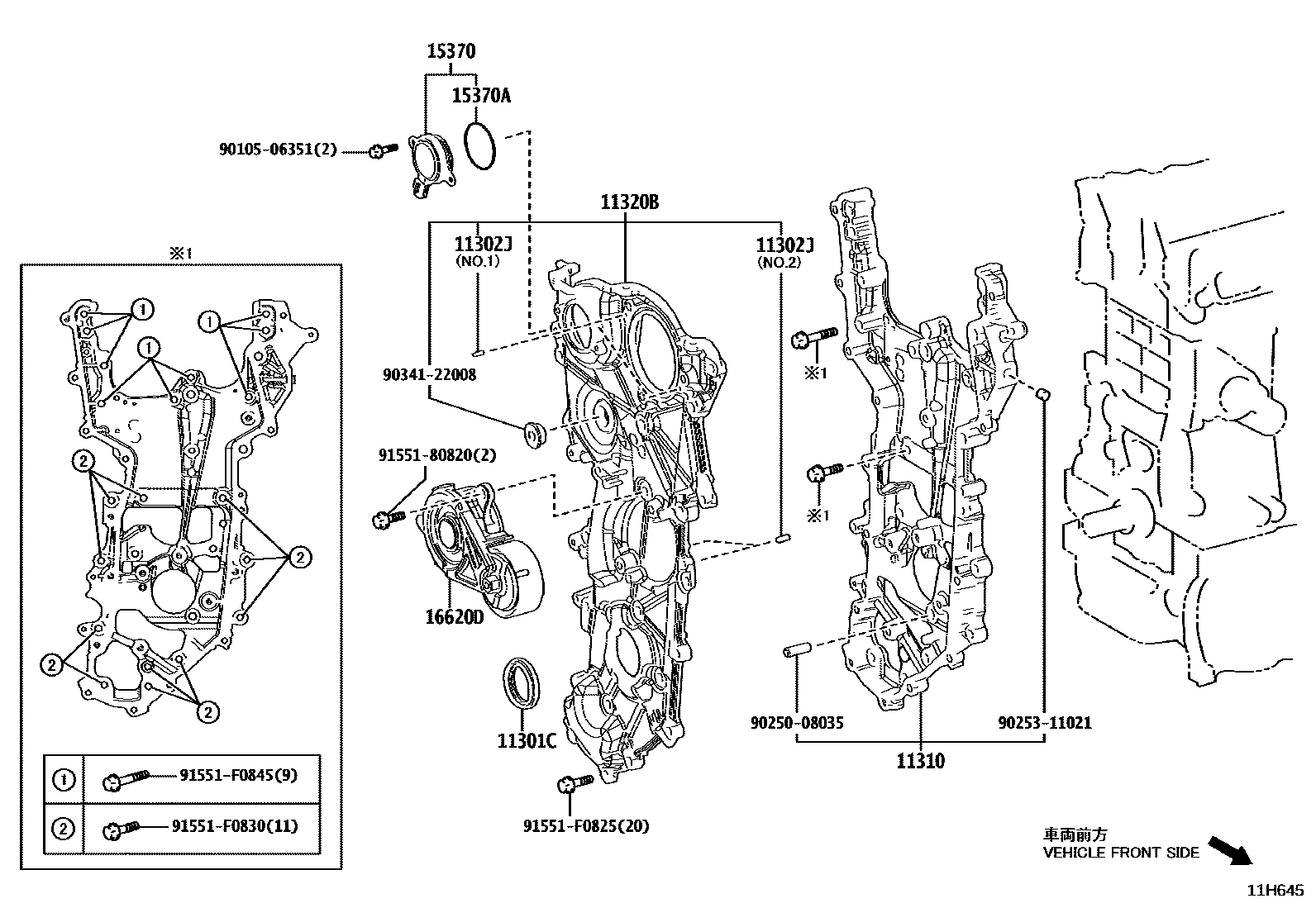

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
11310COVER ASSY, TIMING CHAIN
11320BCOVER ASSY, TIMING CHAIN, NO.2
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16620DTENSIONER ASSY, V-RIBBED BELT
9010506351
main90105-06351
9025008035
main90250-08035
9025311021
main90253-11021
9034122008
main90341-22008
9155180820
main91551-80820
91551F0825
main91551-F0825
91551F0830
main91551-F0830
91551F0845
main91551-F0845
16 parts on this diagram · 4 diagrams in section
