SHORT BLOCK ASSEMBLY

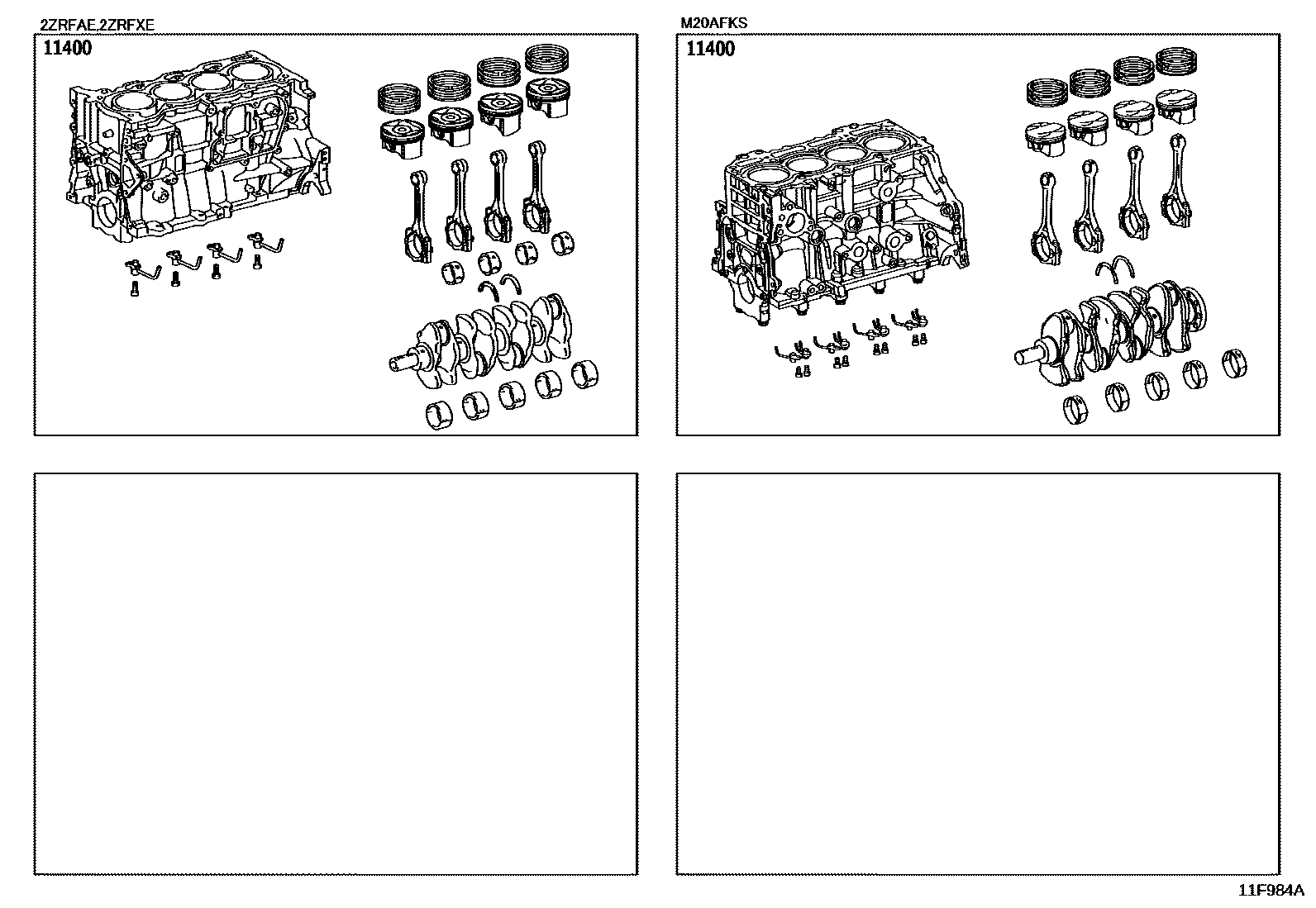

Parts diagram
11400BLOCK ASSY, SHORT
main11400-24030i202310-202408
main11400-2U020i202409
main11400-37280i202108-202110
sub11400-37380
sub16278-37021
sub16281-37071
sub16281-37190
sub16295-37021
sub25601-37050
main11400-37310i202108-202310
main11400-37370i202310
main11400-37380i202110-202310

1 parts on this diagram · 1 diagram in section
