ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iGAYA16¥5,900202408

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-12170iGAYA16¥5,900202408

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-12170iGAYA16¥5,900202408

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iGAYA16¥5,700202408

89458SENSOR, FUEL PRESSURE

main89458-78030iGAYA16¥4,320202408

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iGAYA16¥4,320202408

89571COMPUTER, FUEL PUMP CONTROL

main89571-58020iGAYA16¥10,300202408

89573ABRACKET, FUEL PUMP CONTROL COMPUTER, NO.2

main89573-52100iGAYA16¥350202408

89661COMPUTER, ENGINE CONTROL

main89661-5CL20iGAYA16..6F¥75,800202408

main89661-5CL80iGAYA16..8FC¥75,800202408

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52400iGAYA16..6F¥1,050202408

main89667-52410iGAYA16..8FC¥1,050202408

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52420iGAYA16..6F¥670202408

main89668-52460iGAYA16..8FC¥610202408

9011906958

main90119-06958¥60

9015350015

main90153-50015¥60

9017806016

main90178-06016¥60

9017906274

main90179-06274¥70

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

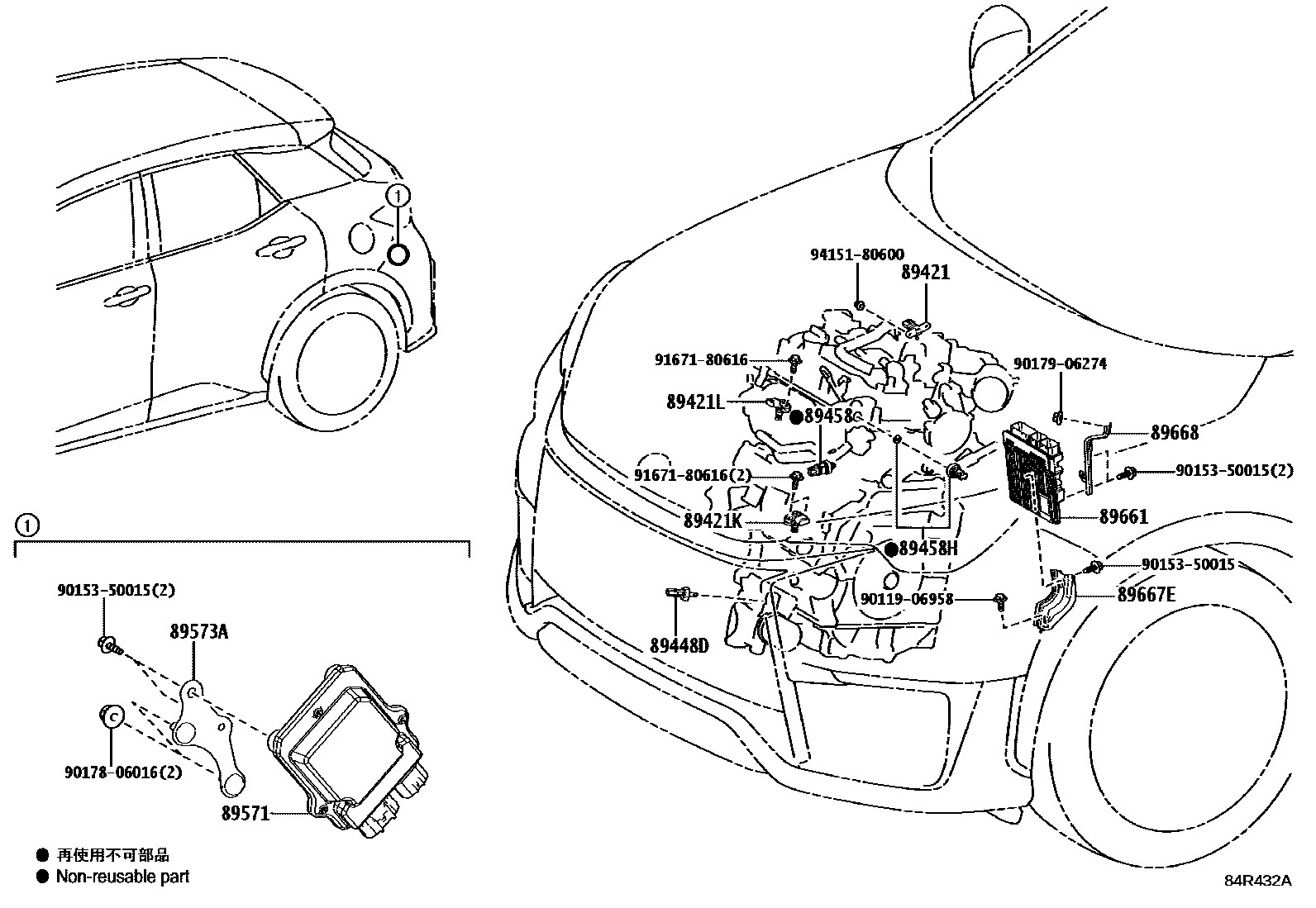

17 parts on this diagram · 2 diagrams in section
