MUDGUARD & SPOILER
62653MPACKING
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65631ECLIP, REAR WHEEL HOUSE PLATE
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
BLACK,2TB ,2YH ,2ZT ,2ZV
GRAPHITE BLACK GF.,223
76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH
76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76873BPROTECTOR, REAR SPOILER, NO.2
76874CPROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76876APROTECTOR, REAR SPOILER, NO.10
76879CLIP, REAR SPOILER, NO.1
76879BCLIP, REAR SPOILER, NO.2
76883APROTECTOR, REAR SOPILER, NO.7
76883BPROTECTOR, REAR SPOILER, NO.7
76889DCLIP, REAR SPOILER, NO.2
76895PROTECTOR, REAR SPOILER, NO.5
76896PROTECTOR, REAR SPOILER, NO.6
82711CCLAMP, WIRING HARNESS
9010506333
main90105-06333
9011906871
main90119-06871
9015960477
main90159-60477
9016750063
main90167-50063
9018906006
main90189-06006
9095001959
main90950-01959

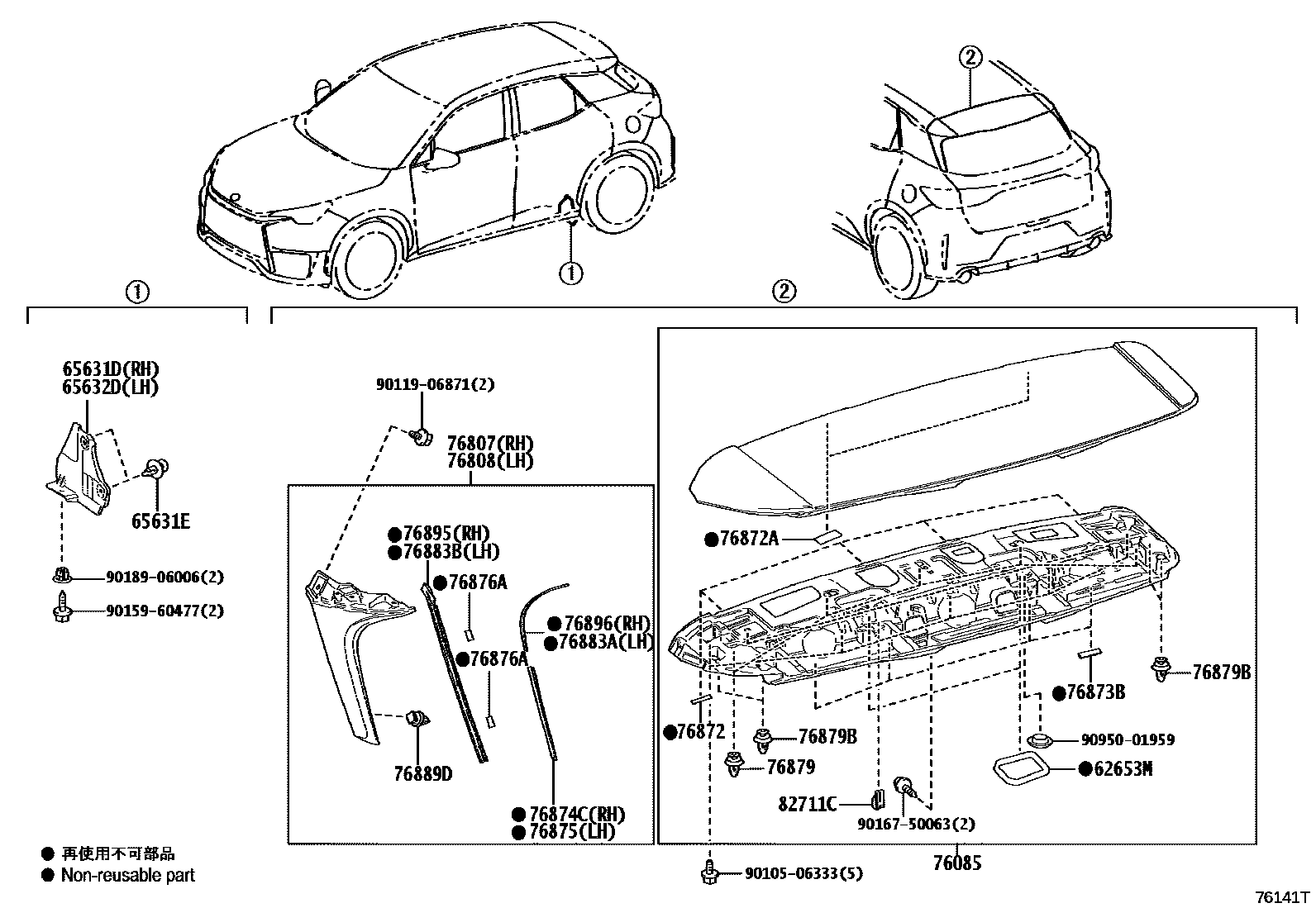

27 parts on this diagram · 1 diagram in section
