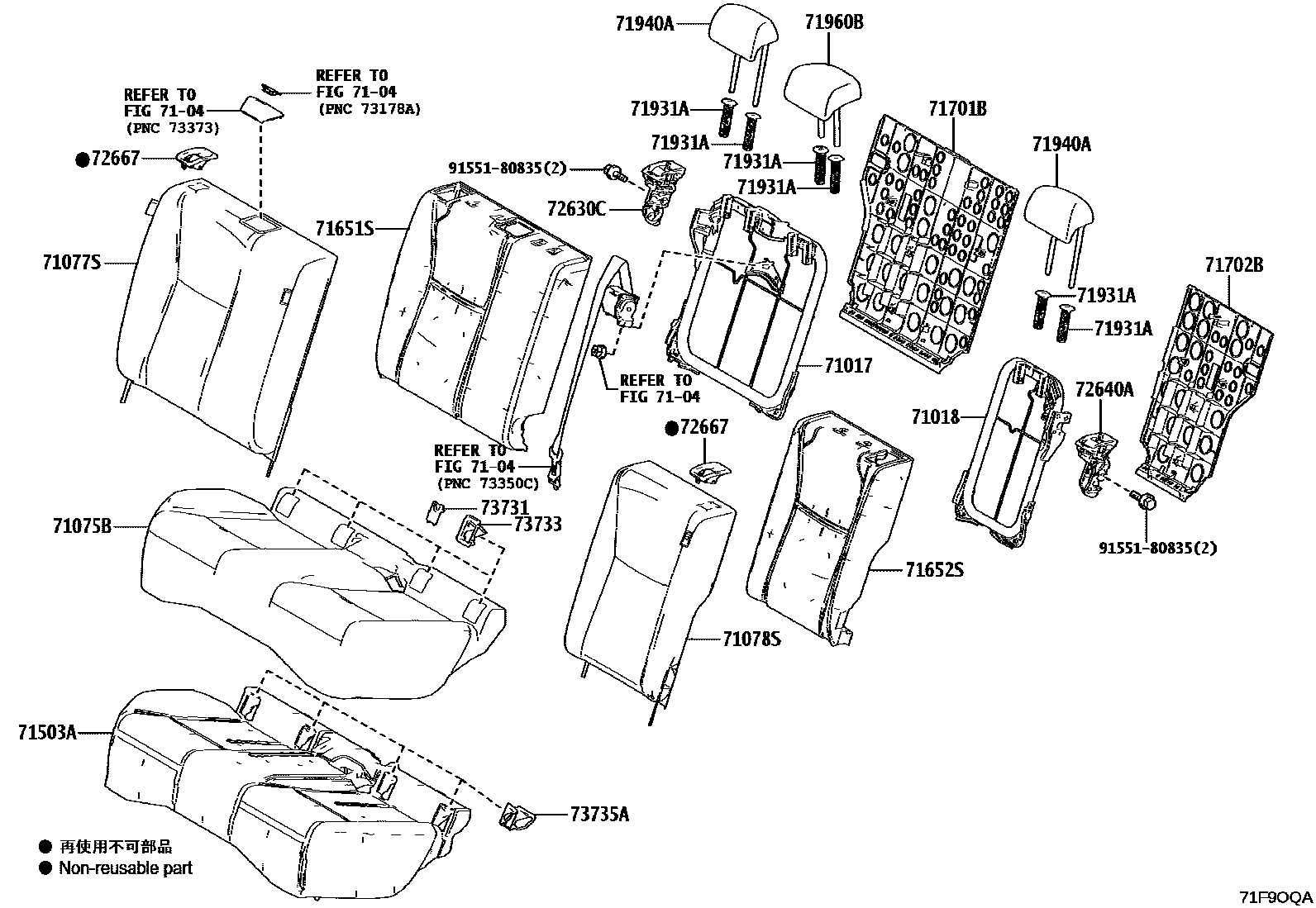

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK/RED,TRIM2#
71503APAD SUB-ASSY, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72667BEZEL, REAR SEATBACK LOCK, UPPER
BLACK,TRIM2#
73731COVER, CHILD RESTRAINT SEAT
BLACK,TRIM2#
73733COVER, CHILD RESTRAINT SEAT BASE
BLACK,TRIM2#
73735ACUP, CHILD RESTRAINT SEAT GUIDE
BLACK,TRIM2#
9155180835
main91551-80835
21 parts on this diagram · 2 diagrams in section
