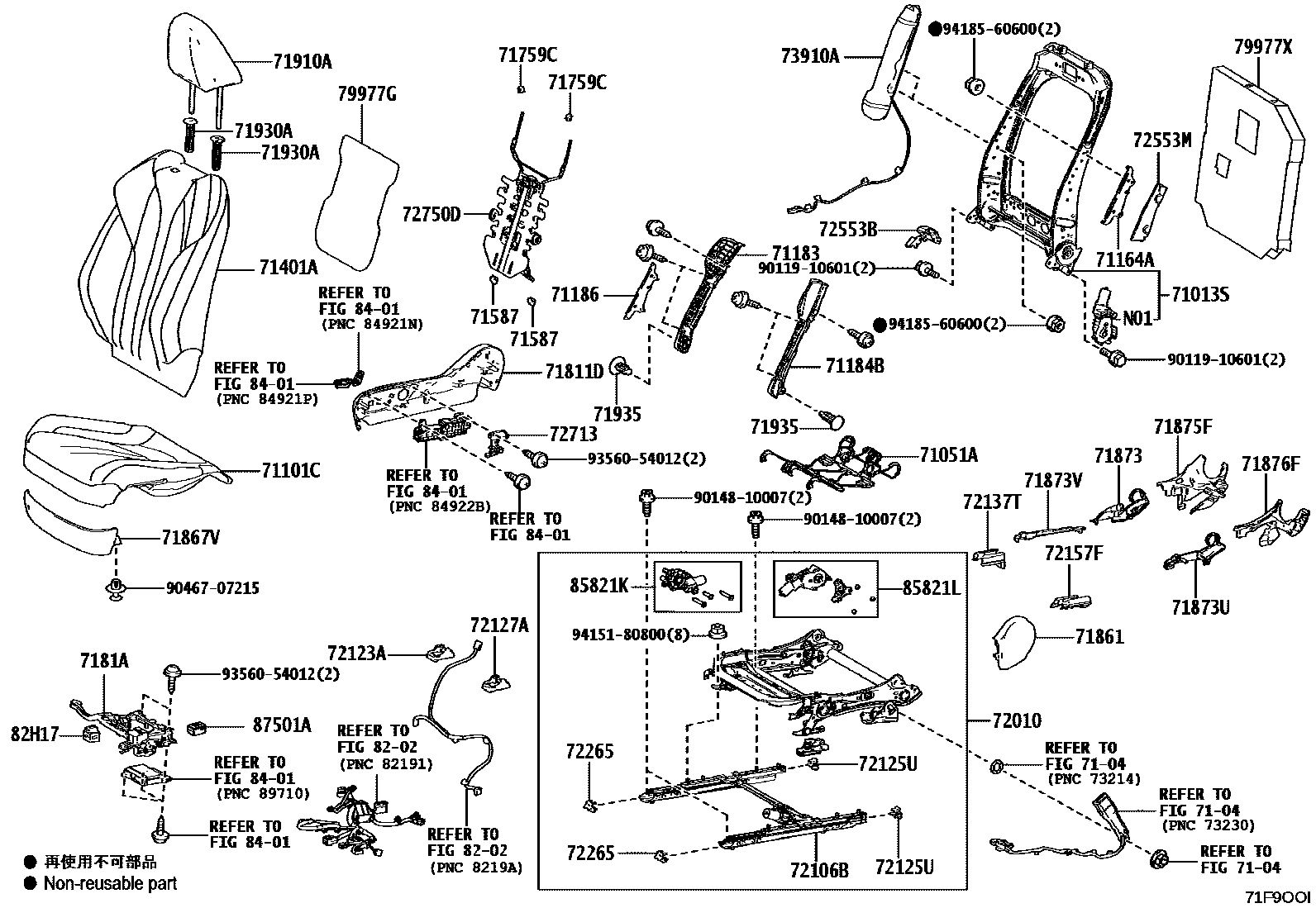

FRONT SEAT & SEAT TRACK

0001 1������(8���) 0002 1�������(4���)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-47220iGAYA16¥30,300202408

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iGAYA16¥4,110202408

71101CSEAT SUB-ASSY, FRONT RH

main71101-52660-C3iGAYA16202408

BLACK,TRIM2#

71164ABRACKET, FRONT SEATBACK SUPPORT, LH

main71164-11010iGAYA16¥490202408

71183SUPPORT, FRONT SEATBACK, RH

main71183-78010iGAYA16¥2,240202408

71184BSUPPORT, FRONT SEATBACK, LH

main71184-78010iGAYA16¥2,240202408

71186BRACKET, FRONT SEAT SIDE SUPPORT, RH

main71186-78010iGAYA16¥490202408

71401ABACK SUB-ASSY, FRONT SEAT, RH

main71401-52020-C1iGAYA16202408

BLACK,TRIM2#

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iGAYA16¥200202408

71759CHOOK, FRONT SEATBACK, NO.1

main71759-50040iGAYA16¥130202408

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52480-C0iGAYA16202408

BLACK,TRIM2#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-33010iGAYA16¥3,040202408

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iGAYA16202408

BLACK,TRIM2#

sub71861-47070¥1,090

71867VSHIELD, FRONT SEAT CUSHION, FRONT RH

main71867-47010-C1iGAYA16202408

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iGAYA16¥740202408

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-K0010iGAYA16¥920202408

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47090iGAYA16¥570202408

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-30220-C0iGAYA16202408

BLACK,TRIM2#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iGAYA16202408

BLACK,TRIM2#

sub71875-47070¥1,760

71910AHEADREST ASSY, FRONT SEAT

main71910-52T90-C0iGAYA16202408

BLACK,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-47050-C5iGAYA16202408

main71931-47030-C4iGAYA16202408

71935CLIP

main90467-06020-C4iGAYA16202408

BLACK,TRIM2#

sub90467-06020¥190

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-52D10iGAYA16¥80,100202408

72106BRAIL SUB-ASSY, SEAT TRACK, UPPER RH

main72106-52010iGAYA16¥35,800202408

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-K0020-C0iGAYA16202408

BLACK

72125UCOVER, SEAT TRACK, UPPER REAR RH

main72125-47020iGAYA16¥160202408

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-K0020-C0iGAYA16202408

BLACK

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-52200iGAYA16¥590202408

72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iGAYA16¥460202408

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47020iGAYA16¥160202408

72553BPROTECTOR, RECLINING COVER, RH

main72553-52040-C0iGAYA16202408

BLACK

sub72553-52040¥680

72553MPROTECTOR, RECLINING COVER, RH, NO.2

main72553-78010iGAYA16¥590202408

72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

main72713-47010iGAYA16¥450202408

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-33140iGAYA16¥20,300202408

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-42090iGAYA16¥20,000202408

79977GFELT, FRONT SEATBACK, RH

main79977-52250iGAYA16¥1,080202408

79977XFELT, SEATBACK, RH

main79977-46010iGAYA16¥770202408

8202

82H17PROTECTOR, WIRING HARNESS, RH

main82817-52T90iGAYA16¥250202408

8401

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-11020iGAYA16¥13,600202408

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-30100iGAYA16¥13,600202408

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-33010iGAYA16¥4,330202408

9011910601

main90119-10601¥90

9014810007

main90148-10007¥60

9046707215

main90467-07215¥80

9356054012

main93560-54012¥60

9415180800

main94151-80800¥80

9418560600

main94185-60600¥70

50 parts on this diagram · 2 diagrams in section
