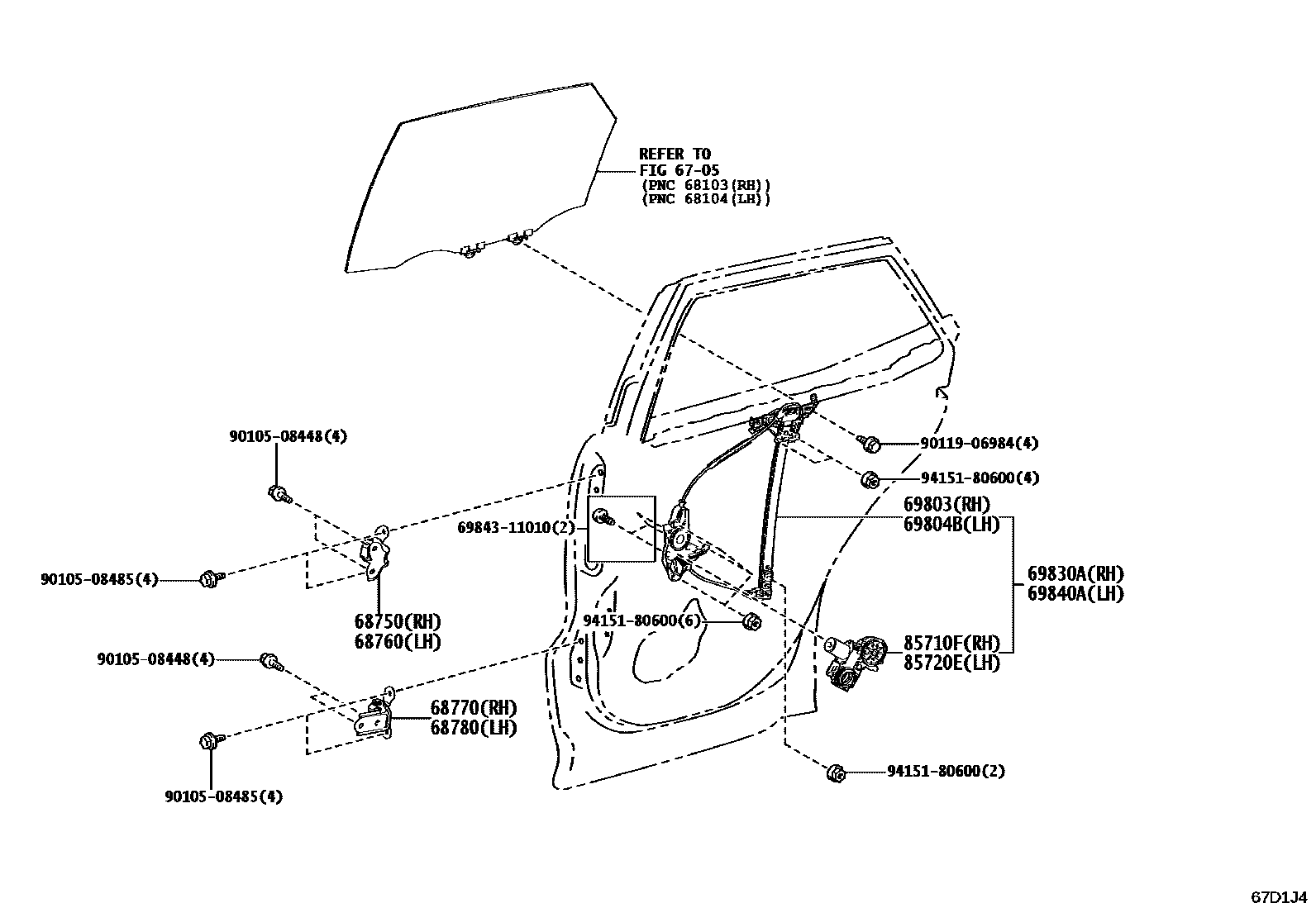

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iGAYA16¥1,850202408

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iGAYA16¥1,850202408

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52050iGAYA16¥2,540202408

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52050iGAYA16¥2,540202408

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52180iGAYA16¥4,560202408

69804BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH

main69804-52190iGAYA16¥4,560202408

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-52380iGAYA16¥15,900202408

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-52360iGAYA16¥15,900202408

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52390iGAYA16¥12,600202408

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52360iGAYA16¥12,600202408

6984311010

main69843-11010¥780

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
