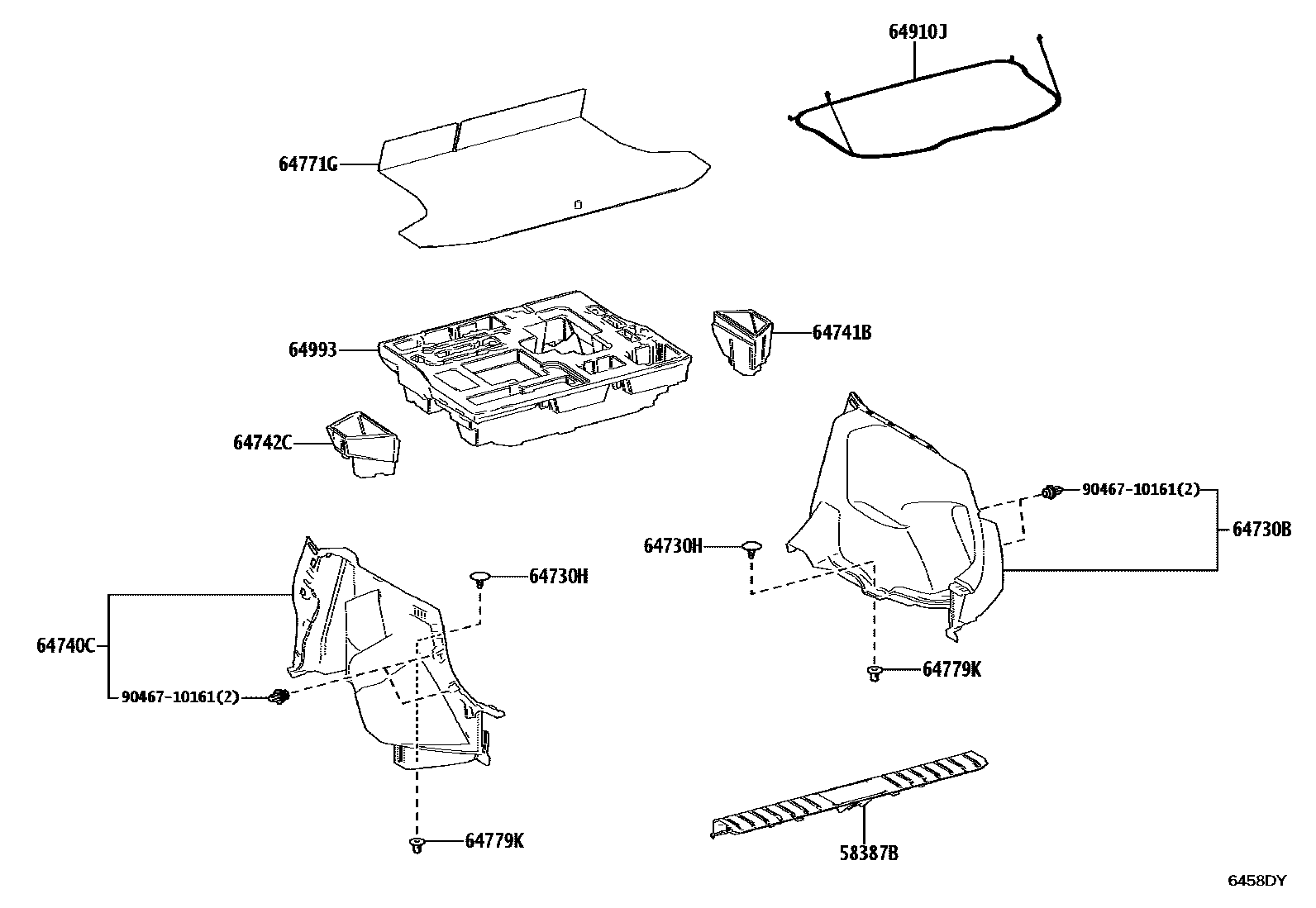

DECK BOARD & DECK TRIM COVER

58387BPLATE, REAR FLOOR FINISH

main58387-52080-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52A60-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main64726-26010-C2iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52B60-C1iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

64741BBOX, DECK SIDE TRIM, RH

main64741-52040iGAYA16202408

64742CBOX, DECK SIDE TRIM, LH

main64742-52040iGAYA16202408

64771GCOVER, SPARE WHEEL

main64771-52310-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

64779KSTOPPER, SPARE WHEEL COVER

main64779-26010iGAYA16202408

64910JCOVER ASSY, TONNEAU

main64910-52100-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

64993BOX, DECK FLOOR, REAR

main64993-52370iGAYA16202408

9046710161

main90467-10161

11 parts on this diagram · 1 diagram in section
