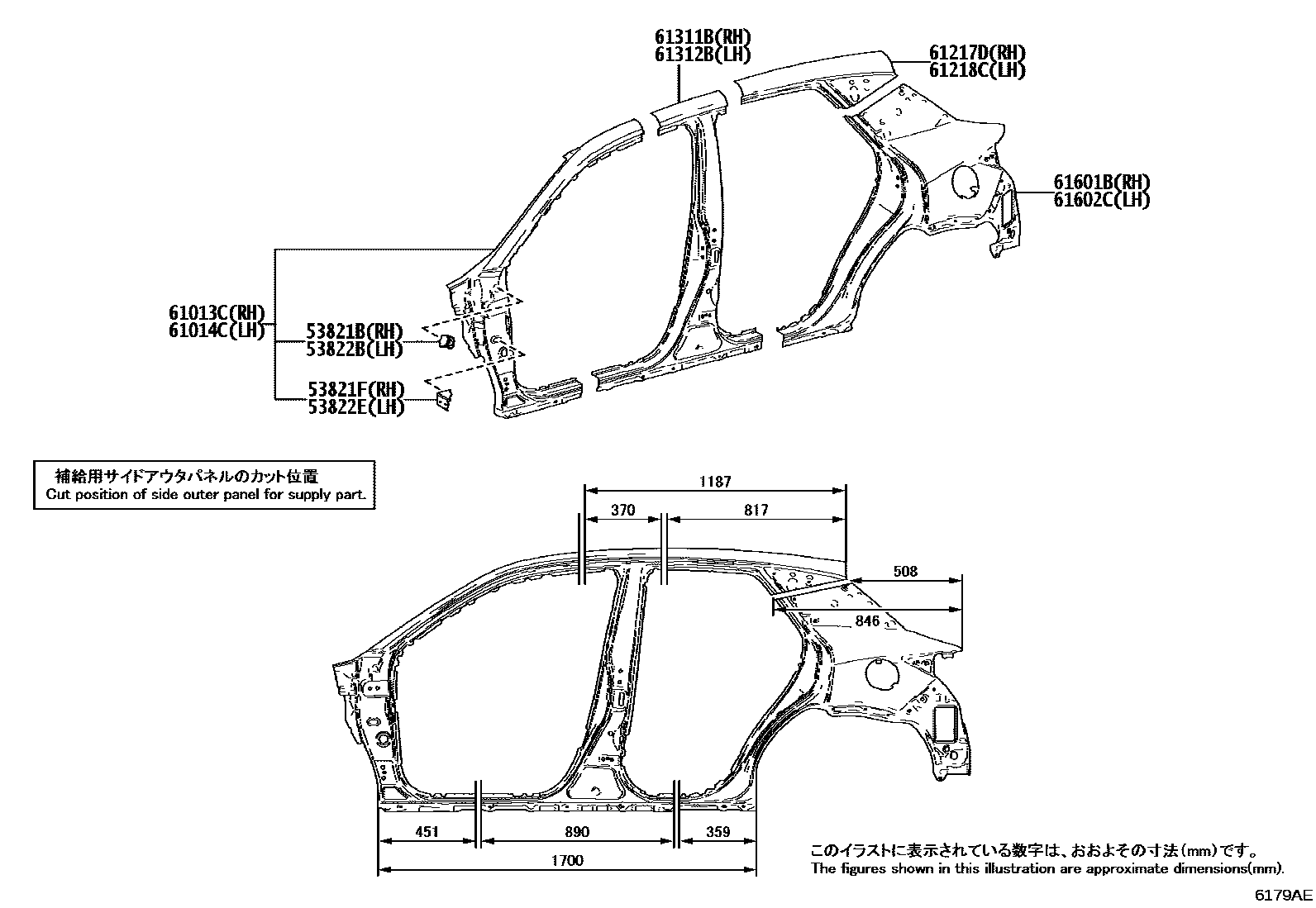

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030iGAYA16202408

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-52050iGAYA16202408

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030iGAYA16202408

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

main53821-52050iGAYA16202408

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-52130iGAYA16202408

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-52120iGAYA16202408

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-52060iGAYA16202408

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-52060iGAYA16202408

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52160iGAYA16202408

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52150iGAYA16202408

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-52780iGAYA16202408

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-52A20iGAYA16202408

12 parts on this diagram · 3 diagrams in section
