COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55224CCLIP, DASH PANEL INSULATOR
BLACK
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55735APLATE, WATER GUARD, LH
55748ABRACE, COWL TOP INNER TO PILLAR
55749ABRACE, COWL TOP INNER TO PILLAR, LH
55751CSHIELD, COWL VENTILATOR SPLASH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1
55797ASEAL, COWL WATER EXTRACT
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
61105EPANEL SUB-ASSY, SIDE, NO.3 RH
61106DPANEL SUB-ASSY, SIDE, NO.3 LH
61113CPANEL, SIDE, INNER RH
61114CPANEL, SIDE, INNER LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
8617
9011906802
main90119-06802
9011906A18
main90119-06A18
9056010098
main90560-10098
9167380616
main91673-80616

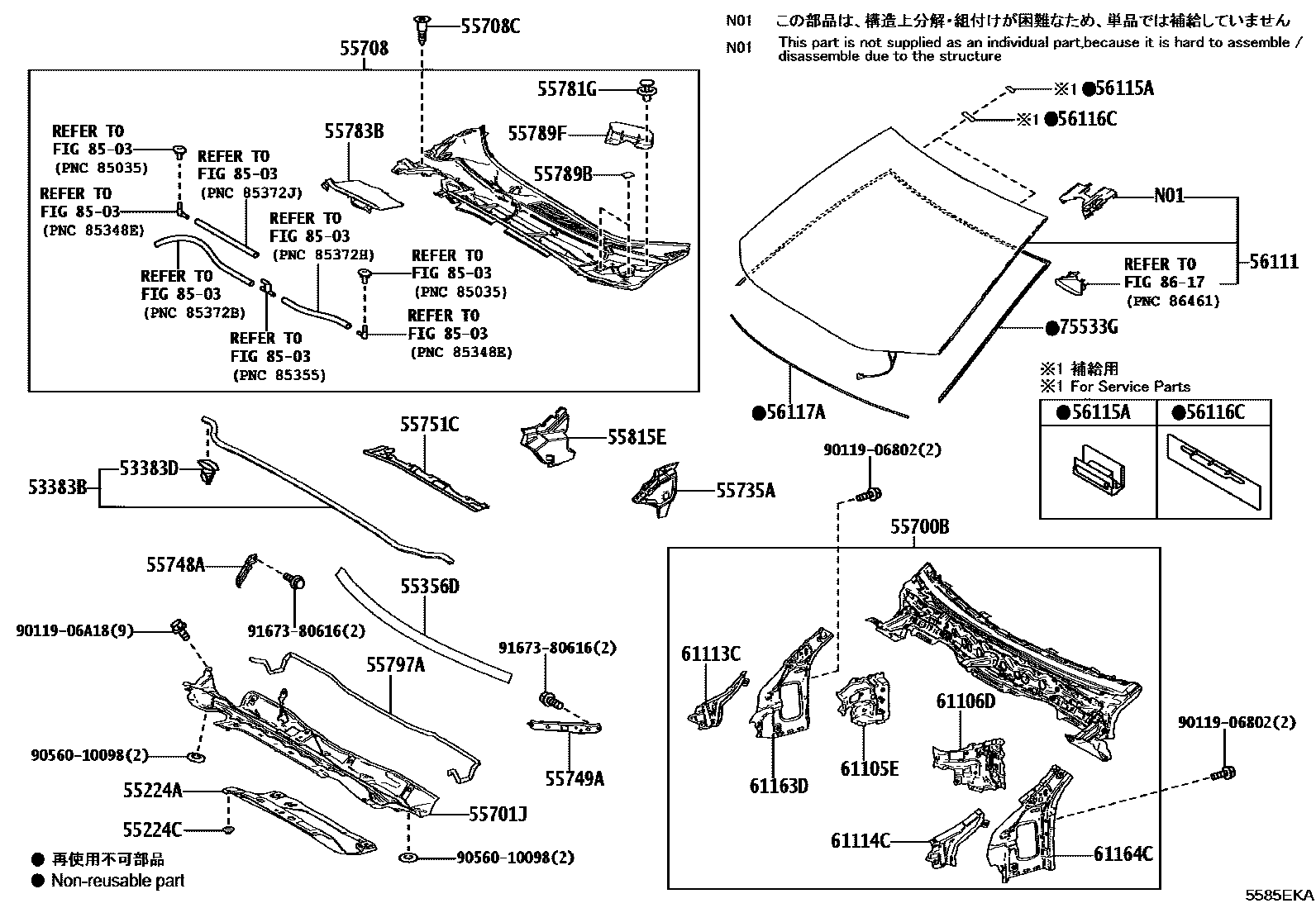

36 parts on this diagram · 1 diagram in section
