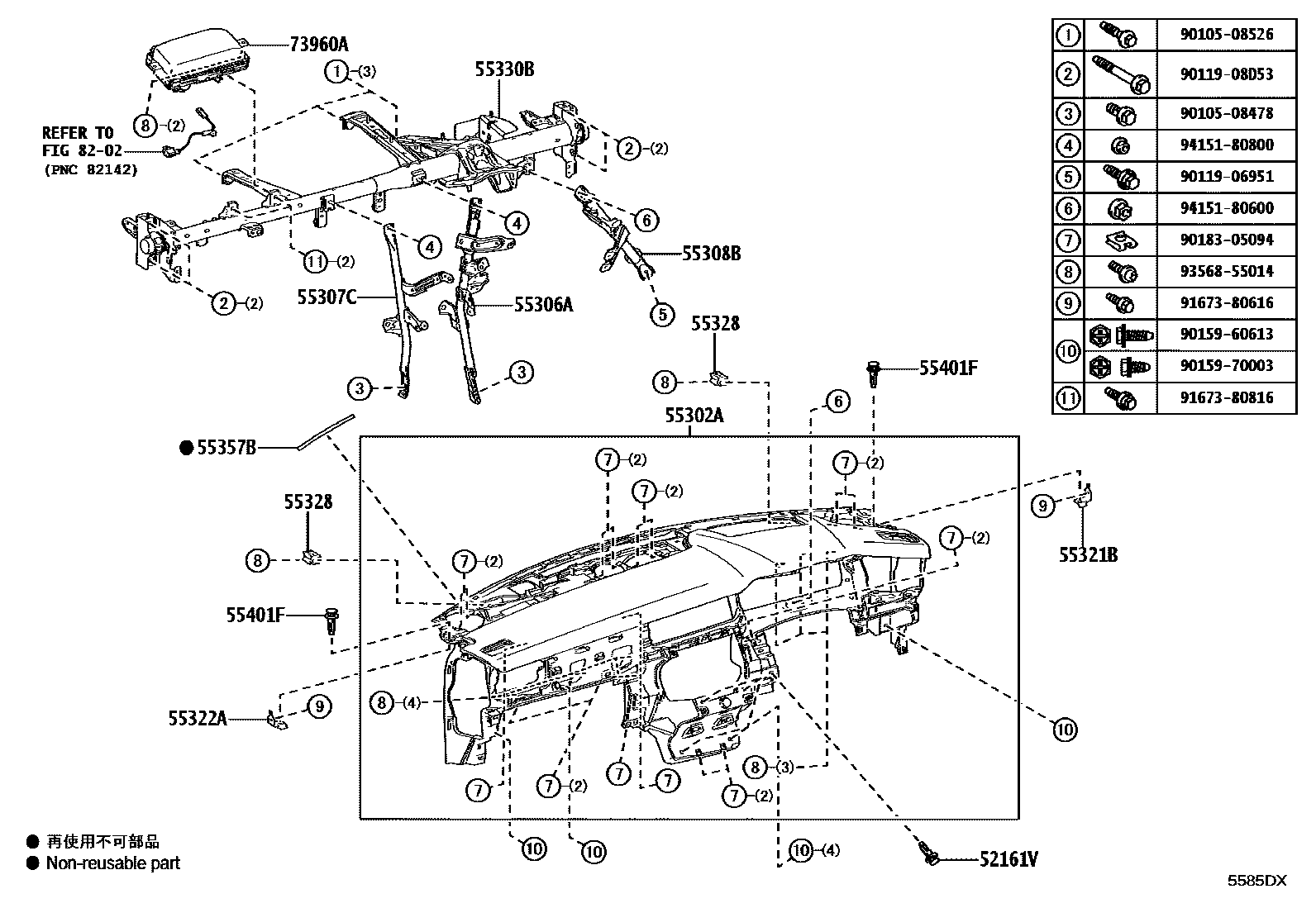

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1�����&���������� 0005 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-16010iGAYA16202408

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52270-C0iGAYA16202408

SOFT BLACK,TRIM0#,2#,3#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52470iGAYA16202408

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52120iGAYA16202408

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-52130iGAYA16202408

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55363-52010iGAYA16202408

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55363-52020iGAYA16202408

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iGAYA16202408

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52A30iGAYA16202408

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52230iGAYA16202408

55401FCLIP(FOR SAFETY PAD)

main52161-16010iGAYA16202408

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52230iGAYA16202408

8202

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908D53

main90119-08D53

9015960613

main90159-60613

9015970003

main90159-70003

9018305094

main90183-05094

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

25 parts on this diagram · 5 diagrams in section
