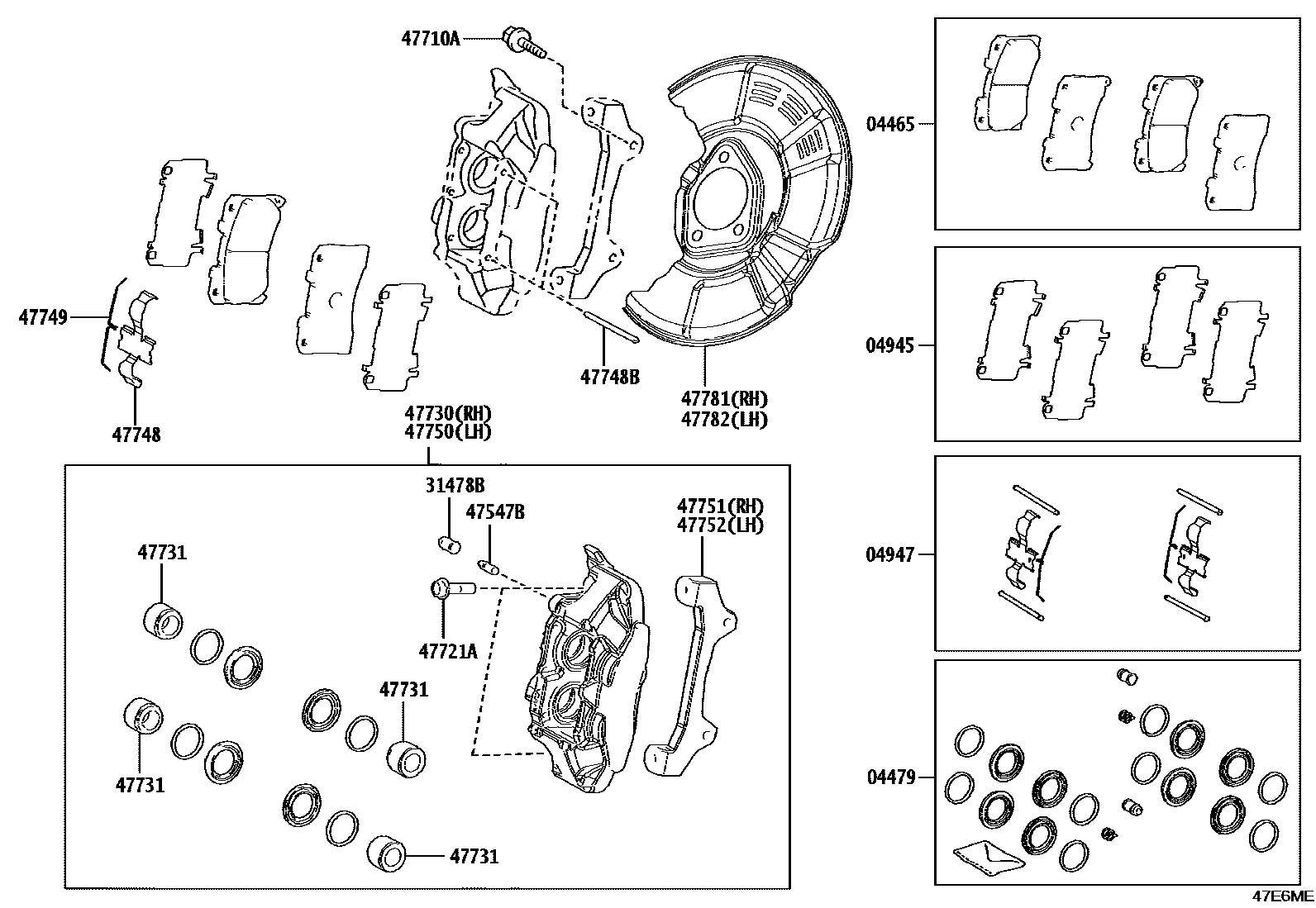

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52370iGAYA16202408

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52270iGAYA16202408

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52210iGAYA16202408

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52080iGAYA16202408

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGAYA16202408

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGAYA16202408

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401iGAYA16202408

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA604iGAYA16202408

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52440iGAYA16202408

47731PISTON, FRONT DISC BRAKE

main47731-52350iGAYA16202408

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-52350iGAYA16202408

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-60300iGAYA16202408

47749CLIP, PIN HOLD

main90468-12015iGAYA16202408

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52490iGAYA16202408

47751BRACKET, CALIPER SUPPORT, RH

main47751-52010iGAYA16202408

47752BRACKET, CALIPER SUPPORT, LH

main47751-52010iGAYA16202408

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52090iGAYA16202408

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52090iGAYA16202408

18 parts on this diagram · 1 diagram in section
