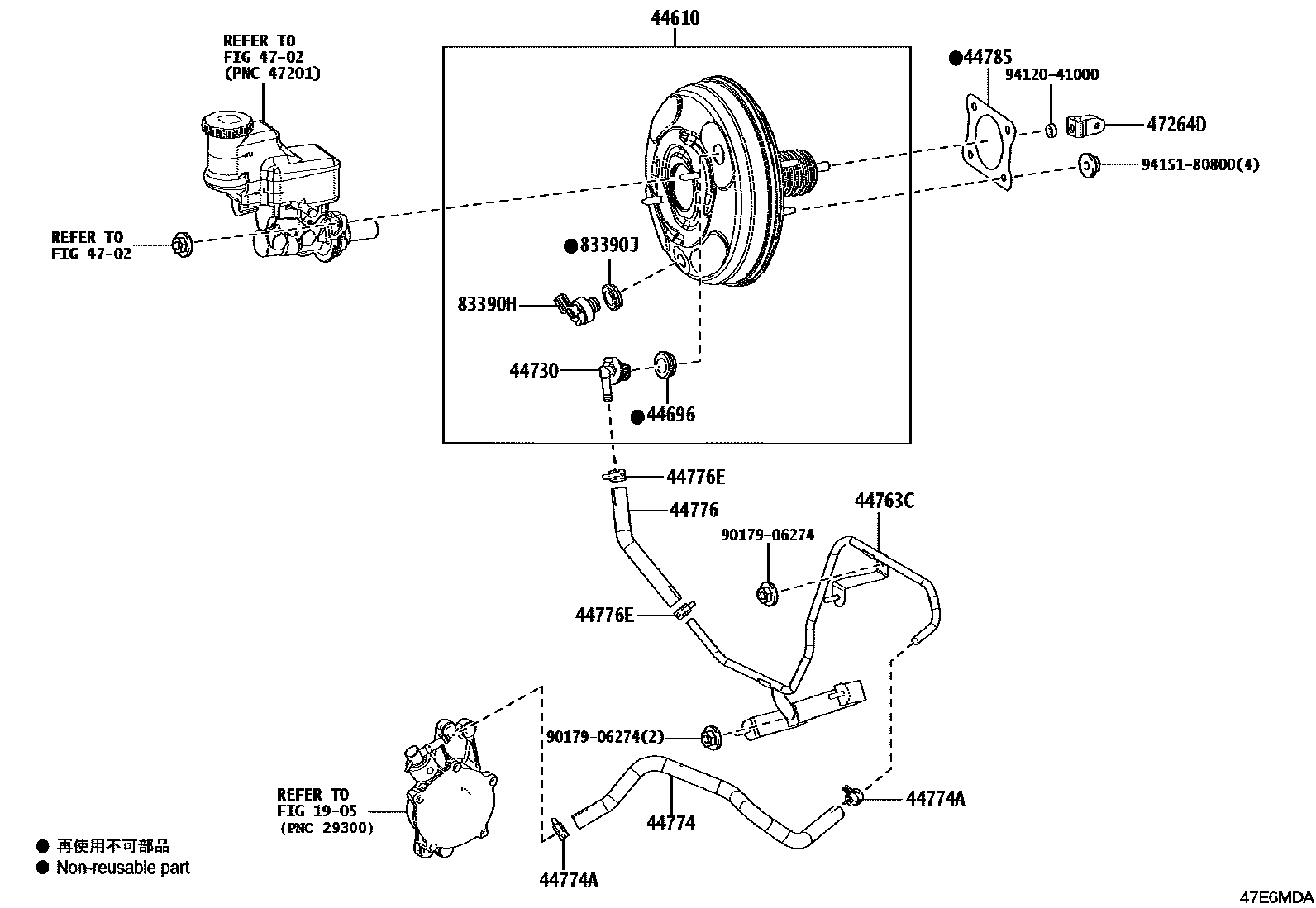

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-52K40iGAYA16..6F202408

main44610-52K50iGAYA16..8FC¥34,100202408

44696GROMMET, CHECK VALVE

main90480-24439iGAYA16¥390202408

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iGAYA16¥1,300202408

44763CTUBE, HOSE TO HOSE, NO.2

main44763-52220iGAYA16¥2,270202408

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52230iGAYA16¥1,360202408

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iGAYA16¥230202408

44776HOSE, BRAKE BOOSTER

main44776-52100iGAYA16¥520202408

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main90467-16014iGAYA16¥230202408

44785GASKET, BRAKE BOOSTER

main44785-12040iGAYA16¥200202408

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iGAYA16¥250202408

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGAYA16¥3,780202408

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGAYA16¥390202408

9017906274

main90179-06274¥70

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

17 parts on this diagram · 1 diagram in section
