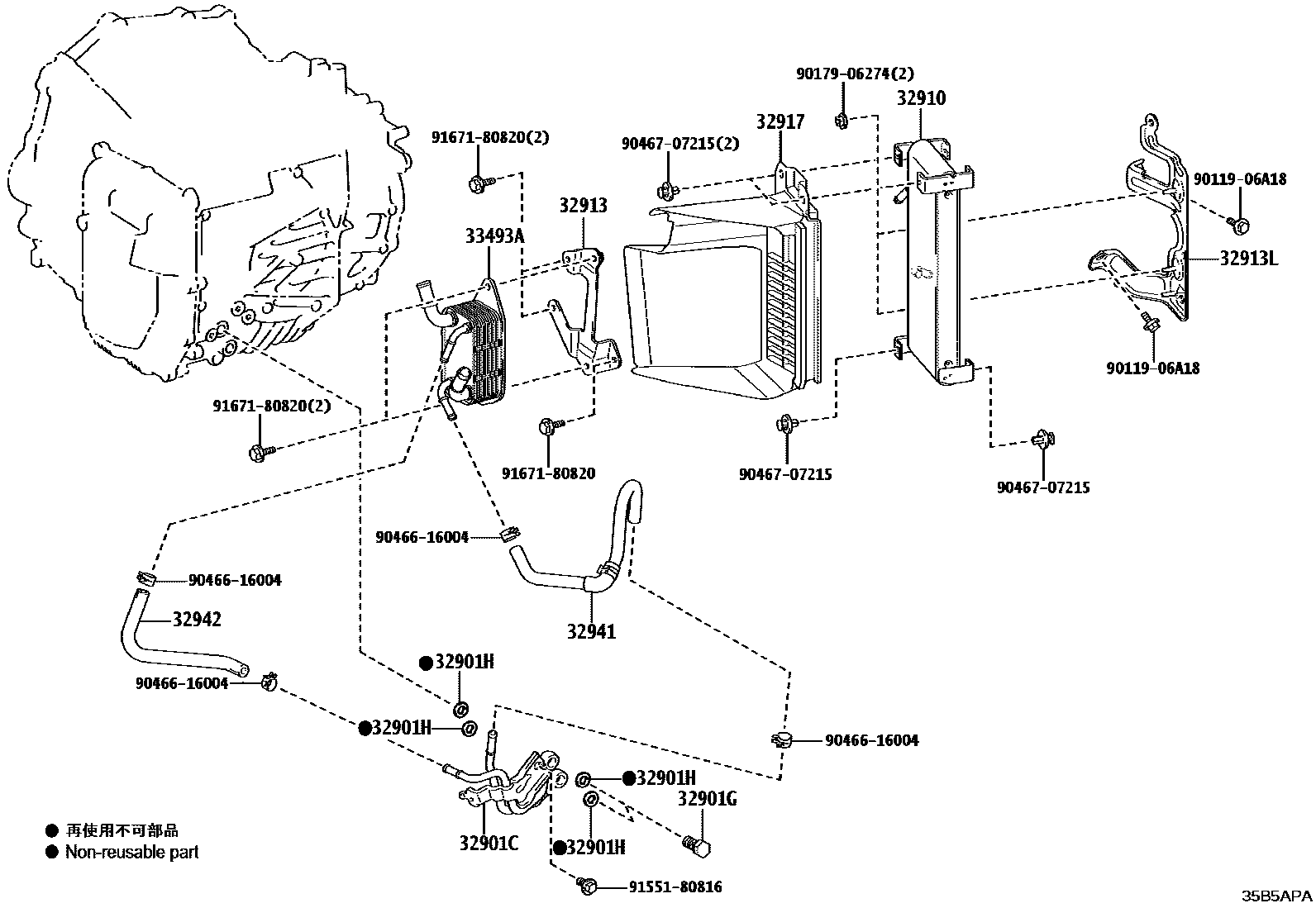

OIL COOLER & TUBE (ATM)

0001 1UC80F 0002 1UC80F,COMFORT PACKAGE

32901CUNION SUB-ASSY, OIL COOLER

main32901-52020iGAYA16..8FC202408

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iGAYA16..8FC202408

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016iGAYA16..8FC202408

32910COOLER ASSY, OIL

main32910-52010iGAYA16..8FC202408

32913BRACKET, OIL COOLER

main32913-52020iGAYA16..8FC202408

32913LBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-52010iGAYA16..8FC202408

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-52020iGAYA16..8FC202408

32941HOSE, OIL COOLER INLET, NO.1

main32941-52060iGAYA16..8FC202408

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-52040iGAYA16..8FC202408

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-52080iGAYA16..8FC202408

9011906A18

main90119-06A18

9017906274

main90179-06274

9046616004

main90466-16004

9046707215

main90467-07215

9155180816

main91551-80816

9167180820

main91671-80820

16 parts on this diagram · 2 diagrams in section
