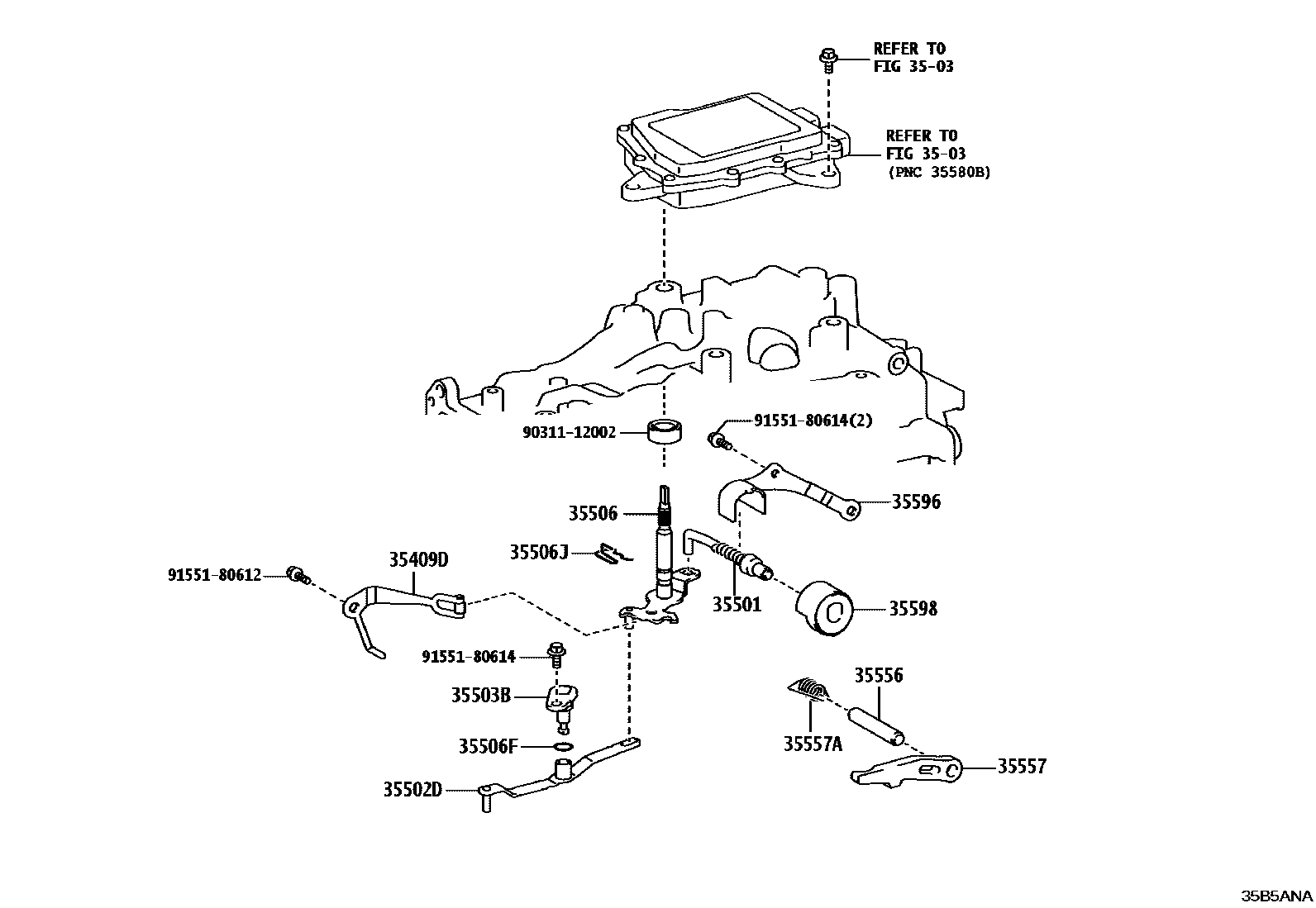

THROTTLE LINK & VALVE LEVER (ATM)

3503

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iGAYA16..8FC¥400202408

35501ROD SUB-ASSY, PARKING LOCK

main35501-48040iGAYA16..8FC¥1,210202408

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-48010iGAYA16..8FC¥230202408

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iGAYA16..8FC¥300202408

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-78020iGAYA16..8FC¥850202408

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iGAYA16..8FC¥140202408

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iGAYA16..8FC¥60202408

35556SHAFT, PARKING LOCK PAWL

main35556-48040iGAYA16..8FC202408

35557PAWL, PARKING LOCK

main35557-48040iGAYA16..8FC¥2,810202408

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iGAYA16..8FC¥180202408

35596PLATE, PAWL STOPPER

main35596-48030iGAYA16..8FC¥380202408

35598SLEEVE, PARKING LOCK

main35598-48040iGAYA16..8FC¥770202408

9031112002

main90311-12002¥270

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

16 parts on this diagram · 1 diagram in section
