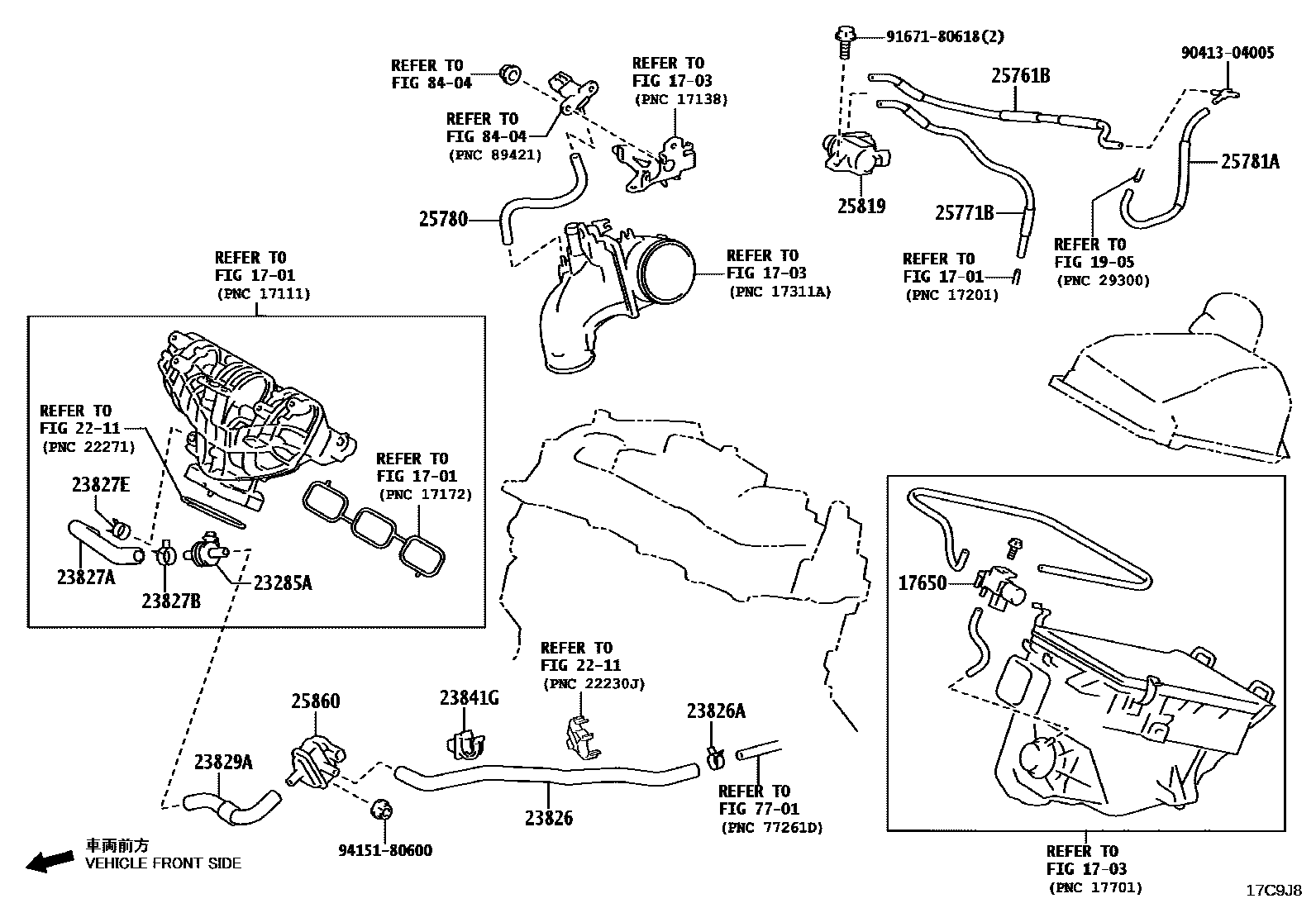

VACUUM PIPING

1701

1703

17650VALVE ASSY, VACUUM SWITCHING

main90910-12088iG16EGTS..GAYA16202408

1905

2211

23285AVALVE, CHECK, NO.1

main25748-25030iG16EGTS..GAYA16202408

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-18020iG16EGTS..GAYA16202408

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iG16EGTS..GAYA16202408

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-18010iG16EGTS..GAYA16202408

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96136-42201iG16EGTS..GAYA16202408

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96137-41901iG16EGTS..GAYA16202408

23829AHOSE, FUEL VAPOR FEED

main23826-18010iG16EGTS..GAYA16202408

23841GCLAMP, FUEL HOSE

main77196-33040iG16EGTS..GAYA16202408

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-18010iG16EGTS..GAYA16202408

25771BHOSE, VACCUM TRANSMITTING, NO.2

main25771-18010iG16EGTS..GAYA16202408

25780HOSE ASSY, VACUUM TRANSMITTING, NO.3

main25780-18010iG16EGTS..GAYA16202408

25781AHOSE, VACUUM TRANSMITTING, NO.3

main25791-18010iG16EGTS..GAYA16202408

25819VALVE ASSY, VACUUM REGULATING

main25819-0W010iG16EGTS..GAYA16202408

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-18010iG16EGTS..GAYA16202408

7701

8404

9041304005

main90413-04005

9167180618

main91671-80618

9415180600

main94151-80600

24 parts on this diagram · 1 diagram in section
