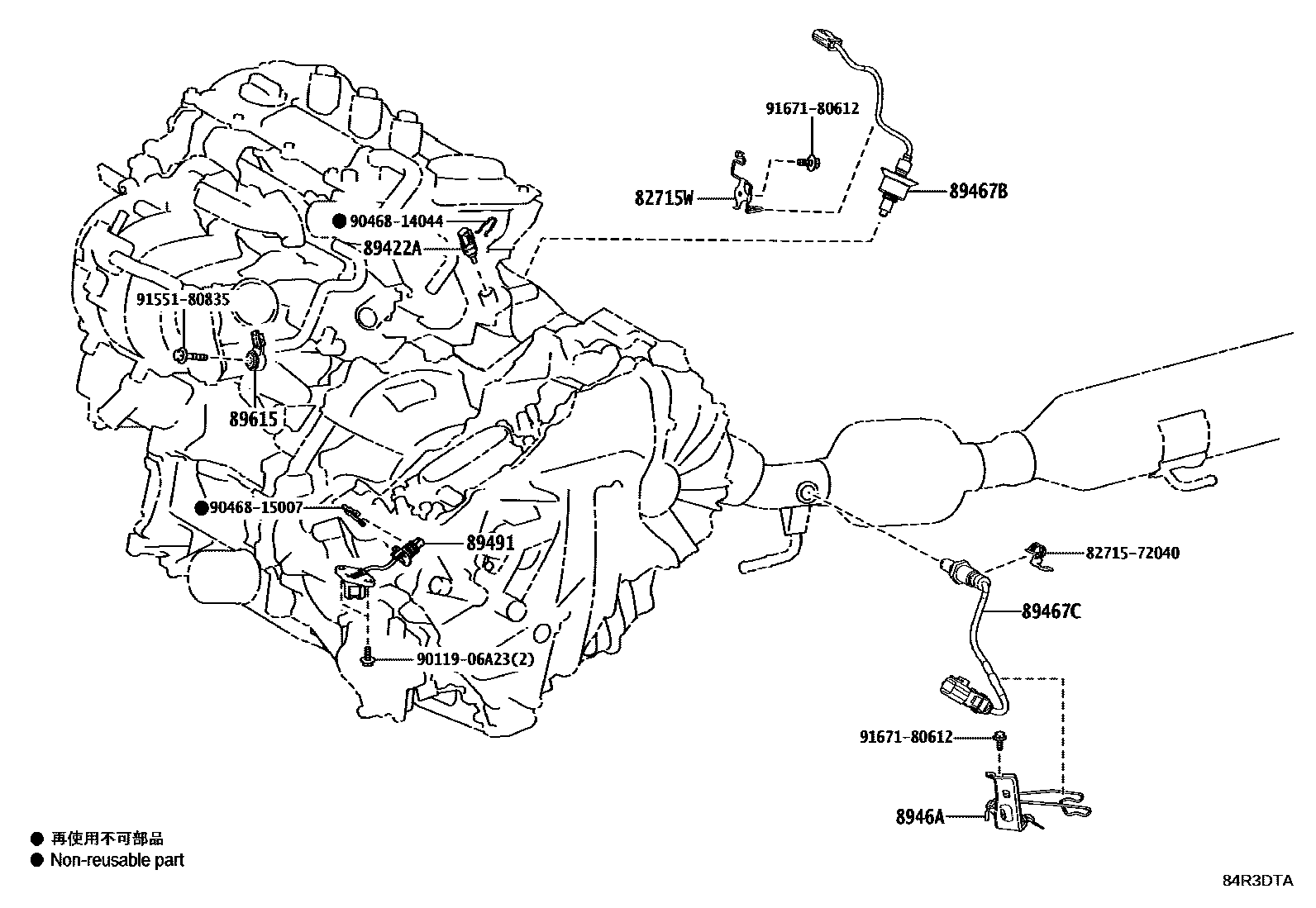

82715WBRACKET, WIRING HARNESS CLAMP

main82715-K0030iMAYH1#202312

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMAYH1#202312

89467BSENSOR, AIR FUEL RATIO

main89467-K0020iMAYH1#202312

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52330iMAYH1#202312

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-52100iMAYH1#202312

89491SENSOR, ENGINE OIL LEVEL

main89491-50082iMAYH1#202312

89615SENSOR, KNOCK CONTROL

main89615-20090iMAYH1#202312

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180612

main91671-80612

13 parts on this diagram · 11 diagrams in section
