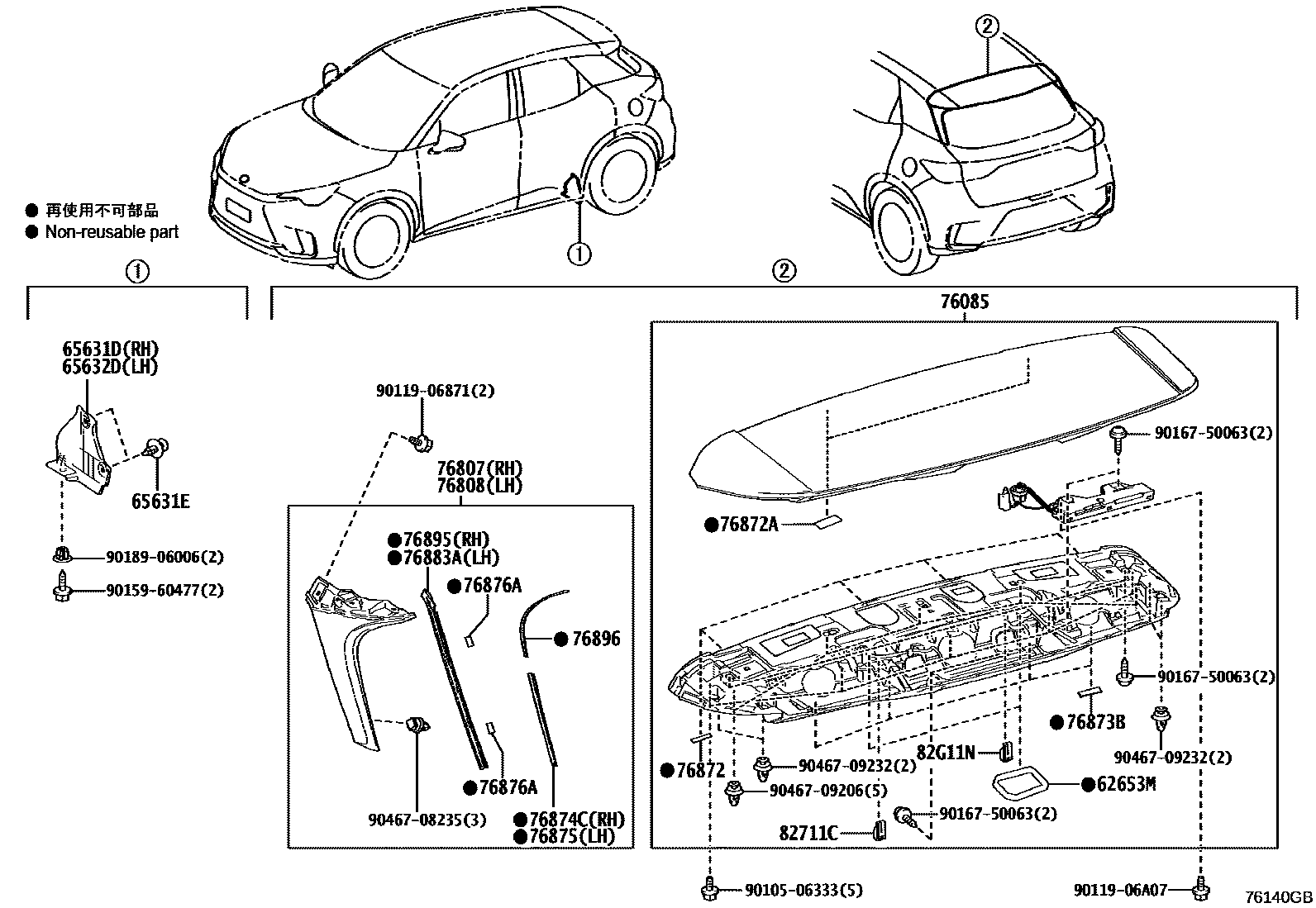

MUDGUARD & SPOILER
62653MPACKING
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65631ECLIP, REAR WHEEL HOUSE PLATE
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
SONIC QUARTZ,085
SILVER ME.,1F7
SONIC CHROME,1L1
CEMENT GRAY ME.,1H5
BLACK MC.,209
BLACK,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN
EMOTIONAL RED 2,3U5
SONIC COPPER,4Y5
YELLOW,5A3
DK.BLUE M.M.,8W7
76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH
76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76873BPROTECTOR, REAR SPOILER, NO.2
76874CPROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76876APROTECTOR, REAR SPOILER, NO.10
76883APROTECTOR, REAR SOPILER, NO.7
76895PROTECTOR, REAR SPOILER, NO.5
76896PROTECTOR, REAR SPOILER, NO.6
82711CCLAMP, WIRING HARNESS
82G11NCLAMP, WIRING HARNESS, NO.2
9010506333
main90105-06333
9011906871
main90119-06871
9011906A07
main90119-06A07
9015960477
main90159-60477
9016750063
main90167-50063
9018906006
main90189-06006
9046708235
main90467-08235
9046709206
main90467-09206
9046709232
main90467-09232
27 parts on this diagram · 1 diagram in section
