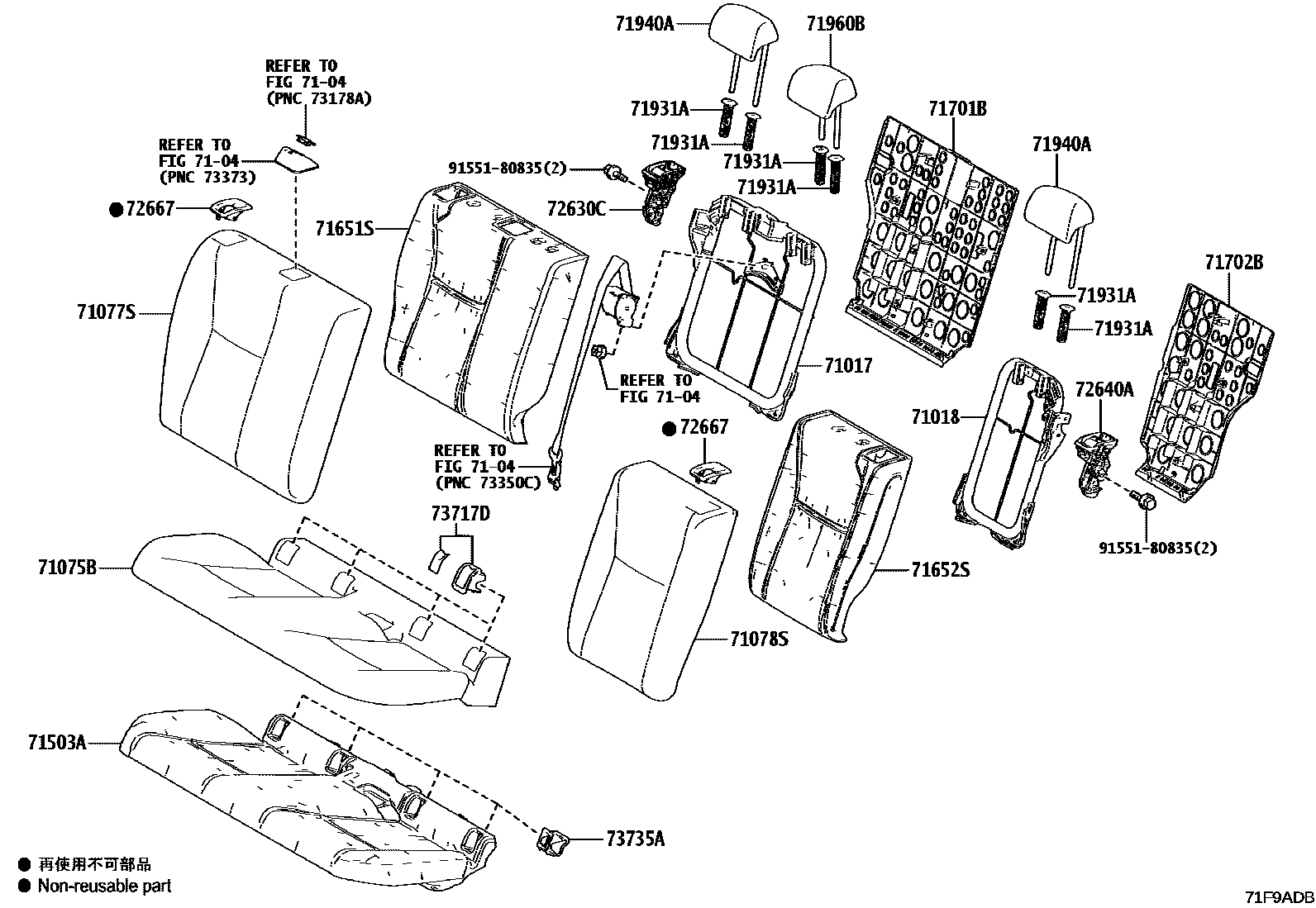

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71503APAD SUB-ASSY, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71940AHEADREST ASSY, REAR SEAT
71960BHEADREST ASSY, REAR SEAT, CENTER
72630CLOCK ASSY, REAR SEATBACK, RH
BLACK,TRIM0#,2#,3#,4#,8#
72640ALOCK ASSY, REAR SEATBACK, LH
BLACK,TRIM0#,2#,3#,4#,8#
72667BEZEL, REAR SEATBACK LOCK, UPPER
BLACK,TRIM0#,2#,3#,4#,8#
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73735ACUP, CHILD RESTRAINT SEAT GUIDE
9155180835
main91551-80835
20 parts on this diagram · 2 diagrams in section
