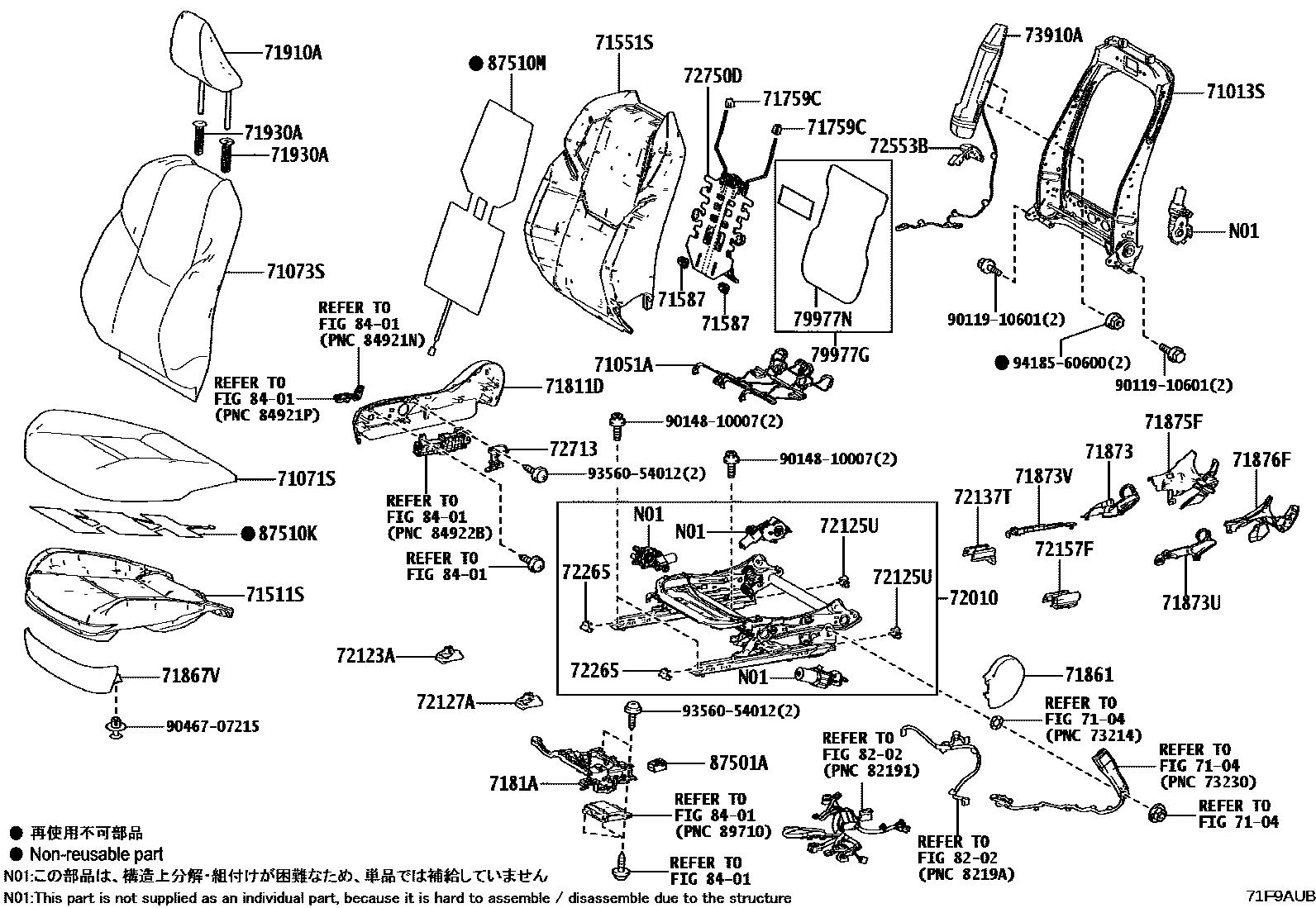

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
DK.GRAY,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
DK.GRAY,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759CHOOK, FRONT SEATBACK, NO.1
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,2#,3#,4#,8#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71867VSHIELD, FRONT SEAT CUSHION, FRONT RH
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
71873VSHIELD, FRONT SEAT CUSHION, LOWER RH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910AHEADREST ASSY, FRONT SEAT
DK.GRAY,TRIM2#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
72010ADJUSTER ASSY, FRONT SEAT, RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
BLACK
72125UCOVER, SEAT TRACK, UPPER REAR RH
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
BLACK
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72265COVER, SEAT TRACK UPPER RAIL, RH
72553BPROTECTOR, RECLINING COVER, RH
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
sub72553-52040
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
79977GFELT, FRONT SEATBACK, RH
79977NFELT, SEATBACK
8202
8401
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
9011910601
main90119-10601
9014810007
main90148-10007
9046707215
main90467-07215
9356054012
main93560-54012
9418560600
main94185-60600
43 parts on this diagram · 3 diagrams in section
