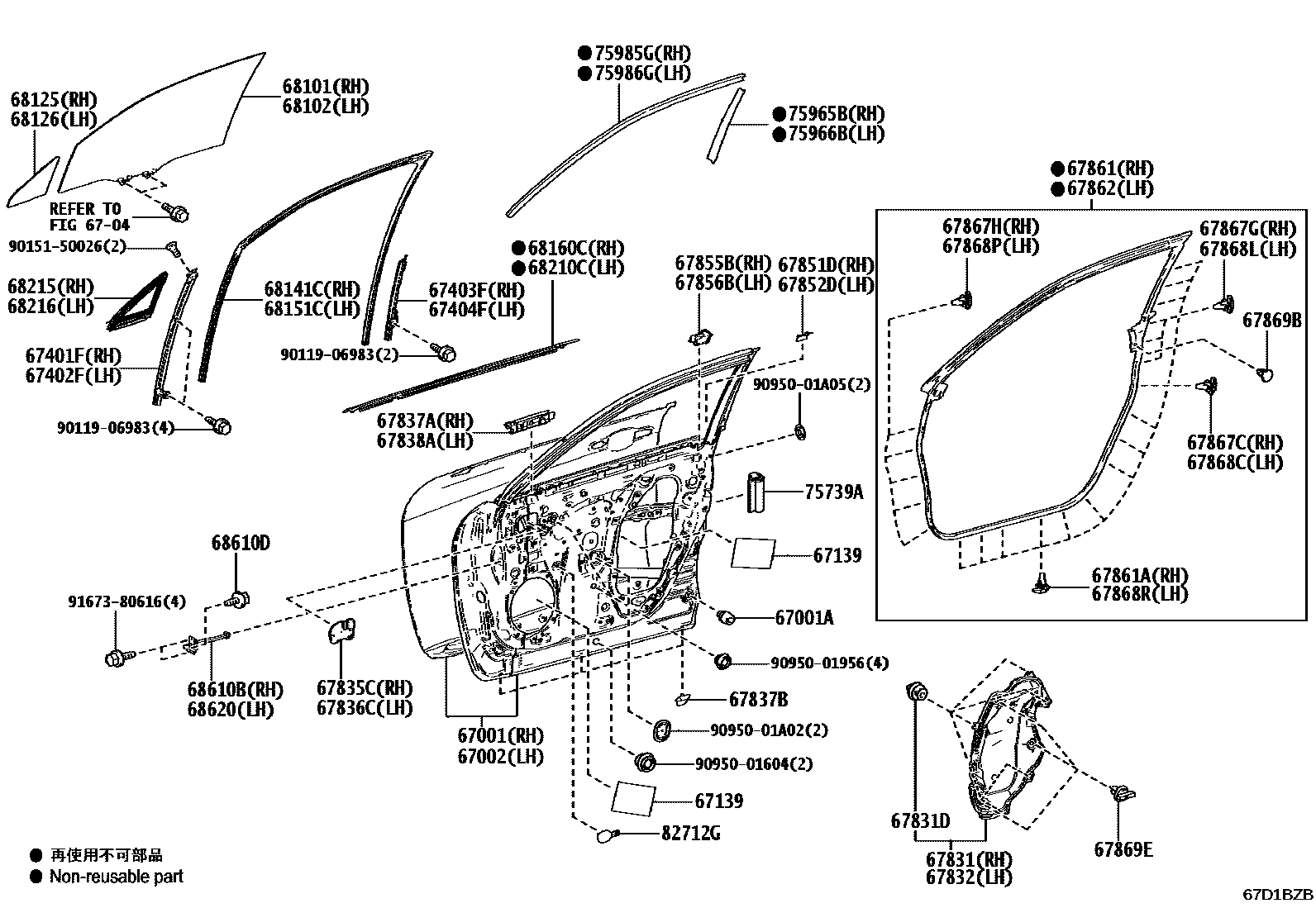

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52690iMAYH1#202312

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×2iMAYH1#202312

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52700iMAYH1#202312

6704

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-52190×4iMAYH1#202312

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52240iMAYH1#202312

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52220iMAYH1#202312

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52300iMAYH1#202312

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52270iMAYH1#202312

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52530iMAYH1#202312

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×10iMAYH1#202312

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52390iMAYH1#202312

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-52040iMAYH1#202312

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-52060iMAYH1#202312

67837ASEAL, FRONT DOOR VENT, RH

main67837-52160iMAYH1#202312

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060×6iMAYH1#202312

67838ASEAL, FRONT DOOR VENT, LH

main67838-52080iMAYH1#202312

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-52040iMAYH1#202312

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-52060iMAYH1#202312

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-52040iMAYH1#202312

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-52040iMAYH1#202312

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52410iMAYH1#202312

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×12iMAYH1#202312

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52380iMAYH1#202312

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-52010iMAYH1#202312

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×3iMAYH1#202312

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-50170×5iMAYH1#202312

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-52010iMAYH1#202312

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×3iMAYH1#202312

67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH

main67867-50170×5iMAYH1#202312

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×12iMAYH1#202312

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×2iMAYH1#202312

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iMAYH1#202312

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52270supersedes 68101-52260iMAYH1#202312

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-52200supersedes 68102-52190iMAYH1#202312

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-52170iMAYH1#202312

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-52140iMAYH1#202312

68141CRUN, FRONT DOOR GLASS, RH

main68141-52340iMAYH1#202312

68151CRUN, FRONT DOOR GLASS, LH

main68151-52340iMAYH1#202312

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52280iMAYH1#202312

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52280iMAYH1#202312

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-52100iMAYH1#202312

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-52090iMAYH1#202312

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52260iMAYH1#202312

68610DBOLT, FRONT DOOR CHECK

main90109-08295×2iMAYH1#202312

68620CHECK ASSY, FRONT DOOR, LH

main68610-52260iMAYH1#202312

75739AMOULDING DOOR EDGE

main75739-12011iMAYH1#202312

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-52010iMAYH1#202312

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-52010iMAYH1#202312

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-52050iMAYH1#202312

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-52050iMAYH1#202312

82712GSUPPORT, WIRING HARNESS

main82712-60550×2iMAYH1#202312

9011906983

main90119-06983

9015150026

main90151-50026

9095001604

main90950-01604

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9167380616

main91673-80616

59 parts on this diagram · 2 diagrams in section
