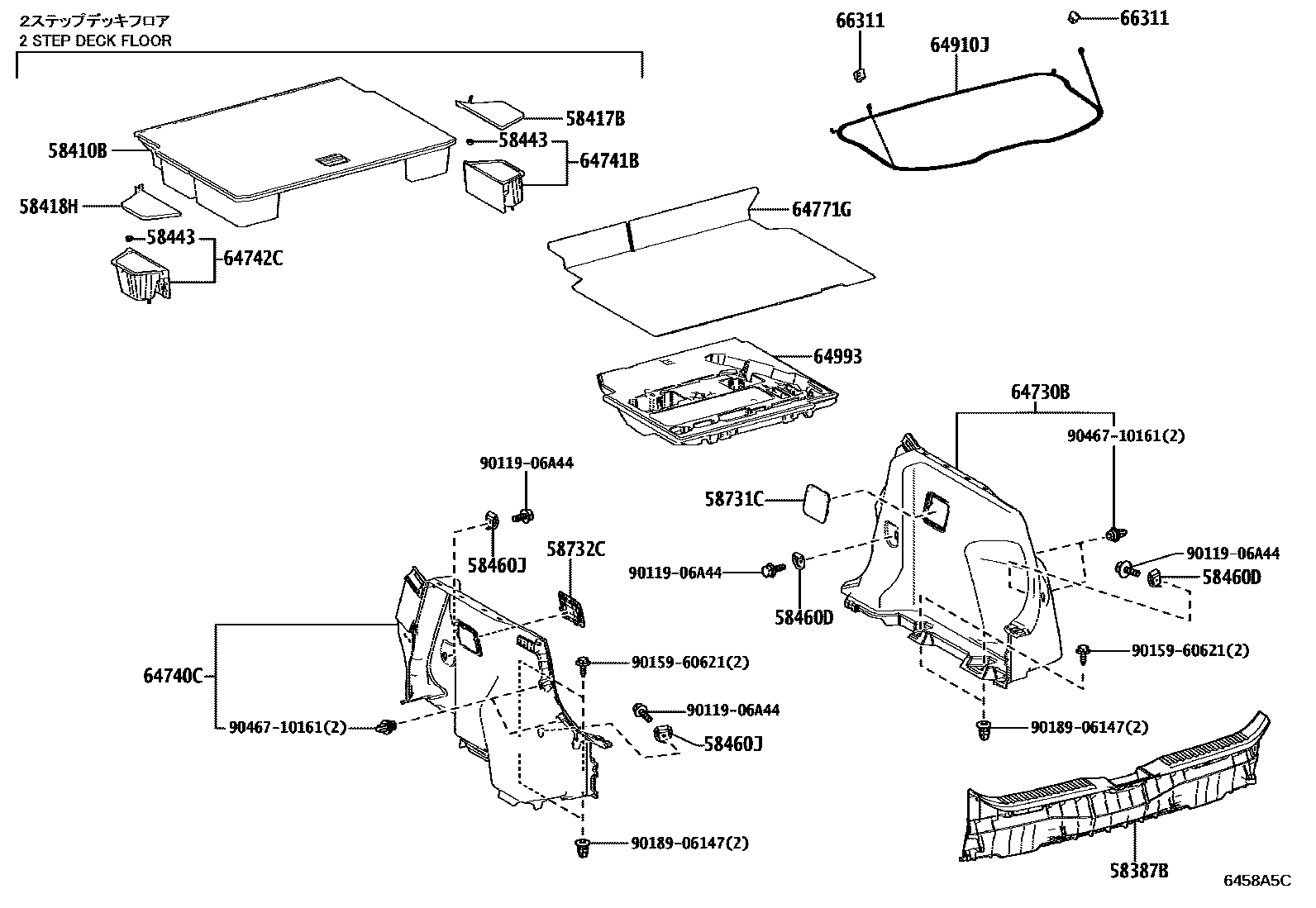

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-52070-C0iMAYH1#202312

BLACK,TRIM0#,2#,3#,4#,8#

58410BBOARD ASSY, DECK

58417BBOARD, REAR FLOOR, REAR RH

58418HBOARD, REAR FLOOR, REAR LH

58443CUSHION, DECK BOARD, NO.1

main58443-33010

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMAYH1#202312

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMAYH1#202312

58731CCAP, REAR ABSORBER

main58731-52130-C0iMAYH15202312

BLACK,TRIM0#,2#,3#,4#,8#

main58731-52130-C0iMAYH15202312

BLACK,TRIM0#,2#,3#,4#

58732CCAP, REAR ABSORBER

main58731-52130-C0iMAYH15202312

BLACK,TRIM0#,2#,3#,4#,8#

main58731-52130-C0iMAYH15202312

BLACK,TRIM0#,2#,3#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52870-C0iMAYH10202312

BLACK,TRIM0#,2#,3#,4#,8#

main64730-52880-C0iMAYH15202312

BLACK,TRIM0#,2#,3#,4#,8#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52A70-C1iMAYH10202312

BLACK,TRIM0#,2#,3#,4#,8#

main64740-52A80-C1iMAYH15202312

BLACK,TRIM0#,2#,3#,4#,8#

64741BBOX, DECK SIDE TRIM, RH

main64741-52030iMAYH15202312

64742CBOX, DECK SIDE TRIM, LH

main64742-52030iMAYH15202312

64771GCOVER, SPARE WHEEL

main64771-52400-C0iMAYH10202312

BLACK,TRIM0#,2#,3#,4#,8#

main64771-52410-C0iMAYH15202312

BLACK,TRIM0#,2#,3#,4#,8#

64910JCOVER ASSY, TONNEAU

main64910-52100-C0iMAYH1#202312

BLACK,TRIM0#,2#,3#,4#,8#

64993BOX, DECK FLOOR, REAR

main64993-52330iMAYH10202312

main64993-52350iMAYH15202312

66311HOOK, ROPE

main66311-76010-C0iMAYH1#202312

BLACK,TRIM0#,2#,3#,4#,8#

9011906A44

main90119-06A44

9015960621

main90159-60621

9018906147

main90189-06147

9046710161

main90467-10161

21 parts on this diagram · 2 diagrams in section
