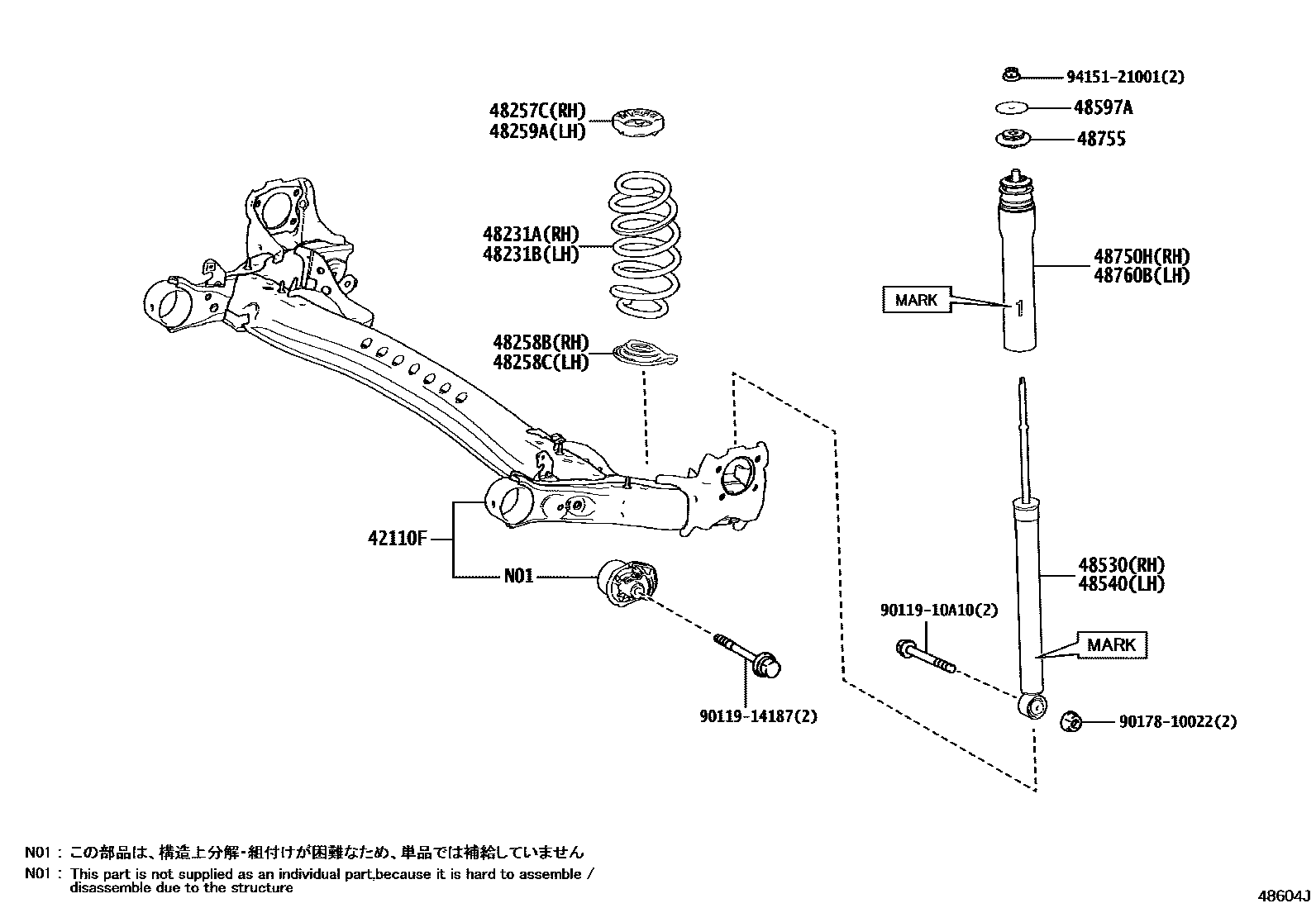

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-52370iMAYH10202312

48231ASPRING, COIL, REAR RH

main48231-52N10iMAYH10202312

main48231-52Q50iMAYH15202312

48231BSPRING, COIL, REAR LH

main48231-52N10iMAYH10202312

main48231-52Q50iMAYH15202312

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iMAYH10202312

main48257-K0020iMAYH15202312

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-K0010iMAYH10202312

main48258-K0020iMAYH15202312

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-K0010iMAYH10202312

main48258-K0020iMAYH15202312

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iMAYH10202312

main48257-K0020iMAYH15202312

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-52T10iMAYH10202312-202506

main48530-52T30iMAYH15202312-202506

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-52T10iMAYH10202312-202506

main48530-52T30iMAYH15202312-202506

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10138iMAYH1#202312

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-K0010iMAYH10202312-202506

main48750-K0020iMAYH15202312-202506

48755SUPPORT, REAR SUSPENSION

main48755-52090iMAYH1#202312

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-K0010iMAYH10202312-202506

main48750-K0020iMAYH15202312-202506

9011910A10

main90119-10A10

9011914187

main90119-14187

9017810022

main90178-10022

9415121001

main94151-21001

17 parts on this diagram · 2 diagrams in section
