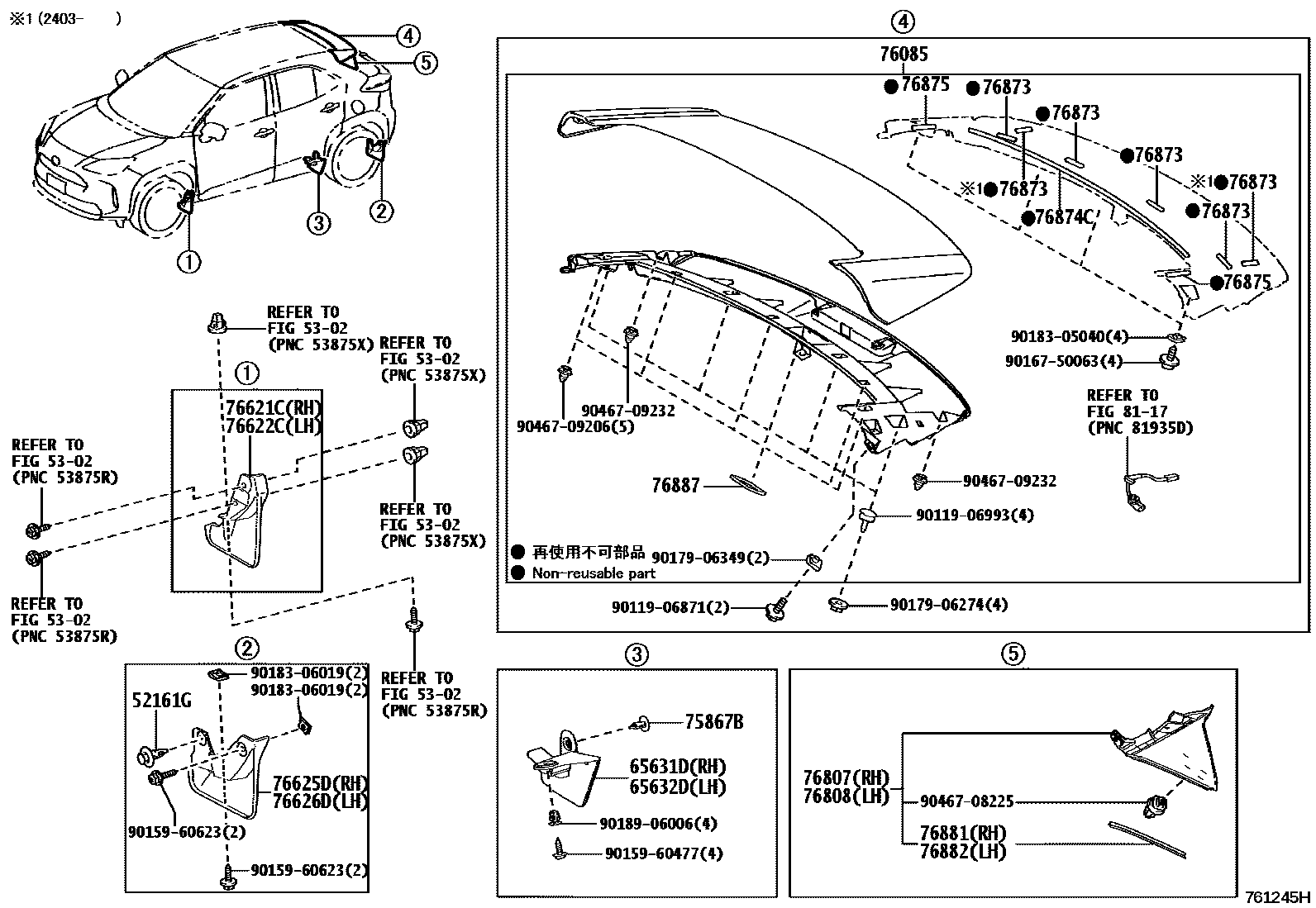

MUDGUARD & SPOILER

52161GPIECE, REAR BUMPER

main52161-16010×2iMXPB1#,MXPJ1#202401

5302

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52160iMXPB1#,MXPJ1#202401

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52160iMXPB1#,MXPJ1#202008-202401

75867BCLIP, ROCKER PANEL MOULDING

main75867-30140×2iMXPB1#,MXPJ1#202401

76085SPOILER SUB-ASSY, REAR

main76085-52929-A0iMXPB1#,MXPJ1#202008-202208

WHITE PEARL CS.,070

sub90167-50063

main76085-52929-A1iMXPB1#,MXPJ1#202208-202401

PLATINUM WHITE PEARL MC.,089

sub90167-50063

main76085-52929-B1iMXPB1#,MXPJ1#202008-202401

SILVER ME.,1L0

sub90167-50063

main76085-52929-B2iMXPB1#,MXPJ1#202401-202403

MASSIVE GRAY,1L6

sub90167-50063

main76085-52929-C0iMXPB10,MXPJ10..GRS202401-202403

BLACK MC.,209 ,2PN ,2PU ,2SG ,2UR ,M23

sub90167-50063

main76085-52929-D0iMXPB1#,MXPJ1#202401-202403

RED MC.,3T3

sub90167-50063

main76085-52929-E0iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z202401-202403

BEIGE,4V6

sub90167-50063

main76085-52929-F0iMXPB1#,MXPJ1#..HBDX,X202008-202401

BRASS GOLD ME.,5C2

sub90167-50063

main76085-52929-J0iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,X,Z202008-202401

GRAYISH BLUE,8W2

sub90167-50063

main76085-52929-J1iMXPB1#,MXPJ1#202008-202401

DK.BLUE M.M.,8W7

sub90167-50063

main76085-52938-A1iMXPB1#,MXPJ1#202403

PLATINUM WHITE PEARL MC.,089

main76085-52938-B4iMXPB1#,MXPJ1#202403

SILVER ME.,1L0

main76085-52938-B5iMXPB1#,MXPJ1#202403

MASSIVE GRAY,1L6

main76085-52938-C0iMXPB10,MXPJ10..GRS202403

BLACK MC.,209 ,2PN ,2PU ,2SG ,M23

main76085-52938-D1iMXPB1#,MXPJ1#202403

RED MC.,3T3

main76085-52938-E3iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z202403

BEIGE,4V6

main76085-52938-J2iMXPB1#,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z202403

GRAYISH BLUE,8W2

76621CMUDGUAD, FRONT FENDER, RH

main76621-52140iMXPB1#,MXPJ1#202008-202401

76622CMUDGUARD, FRONT FENDER, LH

main76622-52140iMXPB1#,MXPJ1#202008-202401

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-52260iMXPB1#,MXPJ1#202008-202401

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-52260iMXPB1#,MXPJ1#202008-202401

76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH

main76807-52010iMXPB1#,MXPJ1#202008-202401

main76807-52030iMXPB1#,MXPJ1#202401

76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH

main76808-52010iMXPB1#,MXPJ1#202008-202401

main76808-52020iMXPB1#,MXPJ1#202401

76873PROTECTOR, REAR SPOILER, NO.2

main76873-52160×4iMXPB1#,MXPJ1#202401-202403

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-52100iMXPB1#,MXPJ1#202008-202401

76875PROTECTOR, REAR SPOILER, NO.4

main76875-52080×2iMXPB1#,MXPJ1#202401

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-52010iMXPB1#,MXPJ1#202401

main76881-52030iMXPB1#,MXPJ1#202008-202401

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76881-52010iMXPB1#,MXPJ1#202401

main76881-52030iMXPB1#,MXPJ1#202008-202401

76887SEAL, REAR SPOILER

main76887-52070iMXPB1#,MXPJ1#202008-202401

8117

9011906871

main90119-06871

9011906993

main90119-06993

9015960477

main90159-60477

9015960623

main90159-60623

9016750063

main90167-50063

9017906274

main90179-06274

9017906349

main90179-06349

9018305040

main90183-05040

9018306019

main90183-06019

9018906006

main90189-06006

9046708225

main90467-08225

9046709206

main90467-09206

9046709232

main90467-09232

32 parts on this diagram · 1 diagram in section
