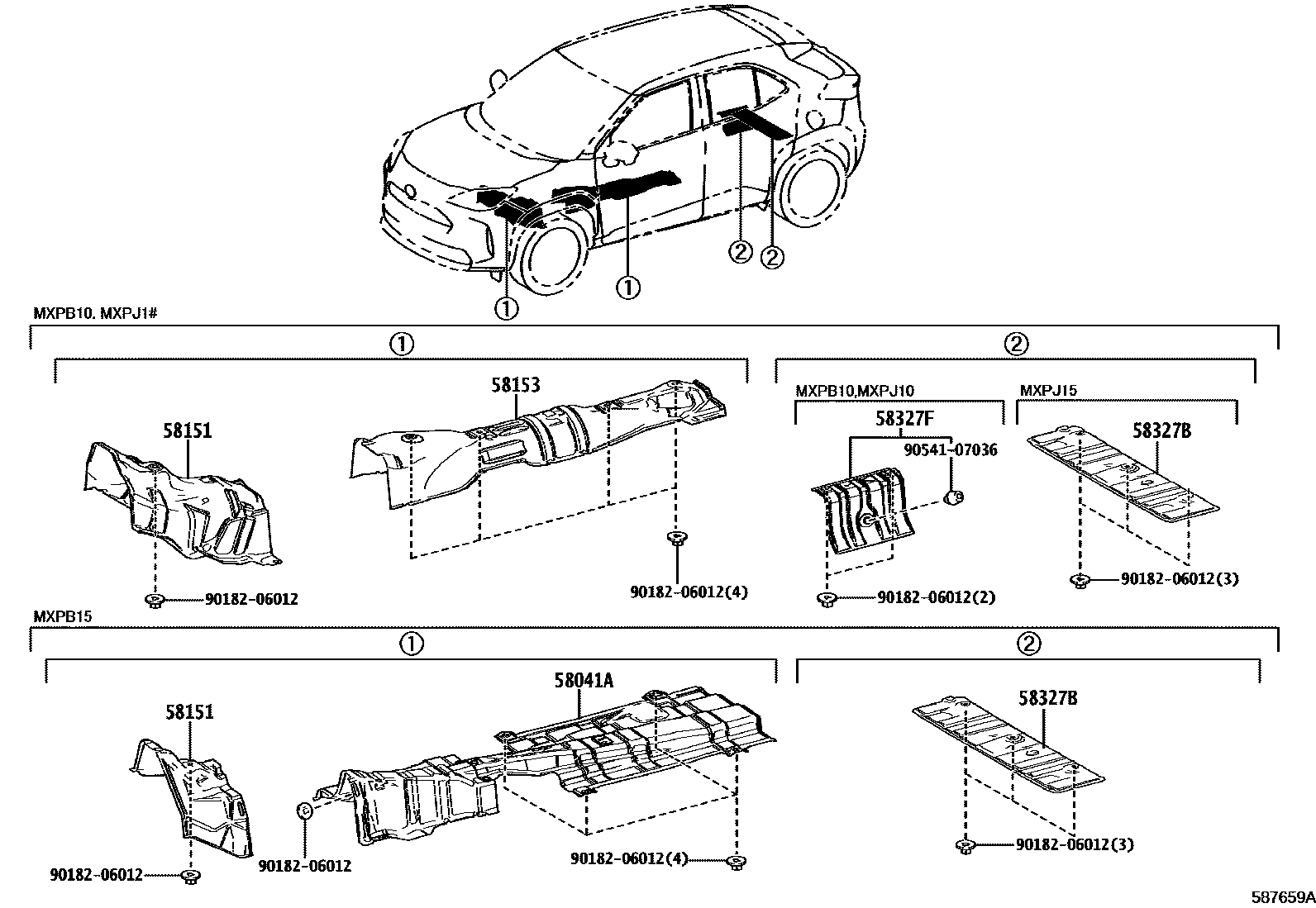

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-52040iMXPB15202008-202401

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-K0010iMXPB10,MXPJ10..GRS202208-202401

main58151-K0030iMXPB15202401

main58151-K0040iMXPB10,MXPJ1#..G,HBDG,HBDX,HBDZ,U,X,Z202401

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52200iMXPB10,MXPJ1#202401

main58153-K0040iMXPB10,MXPJ1#202008-202401

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-K0020iMXPB15,MXPJ15202008-202401

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-52170iMXPB10,MXPJ10202008-202401

9018206012

main90182-06012

9054107036

main90541-07036

7 parts on this diagram · 1 diagram in section
