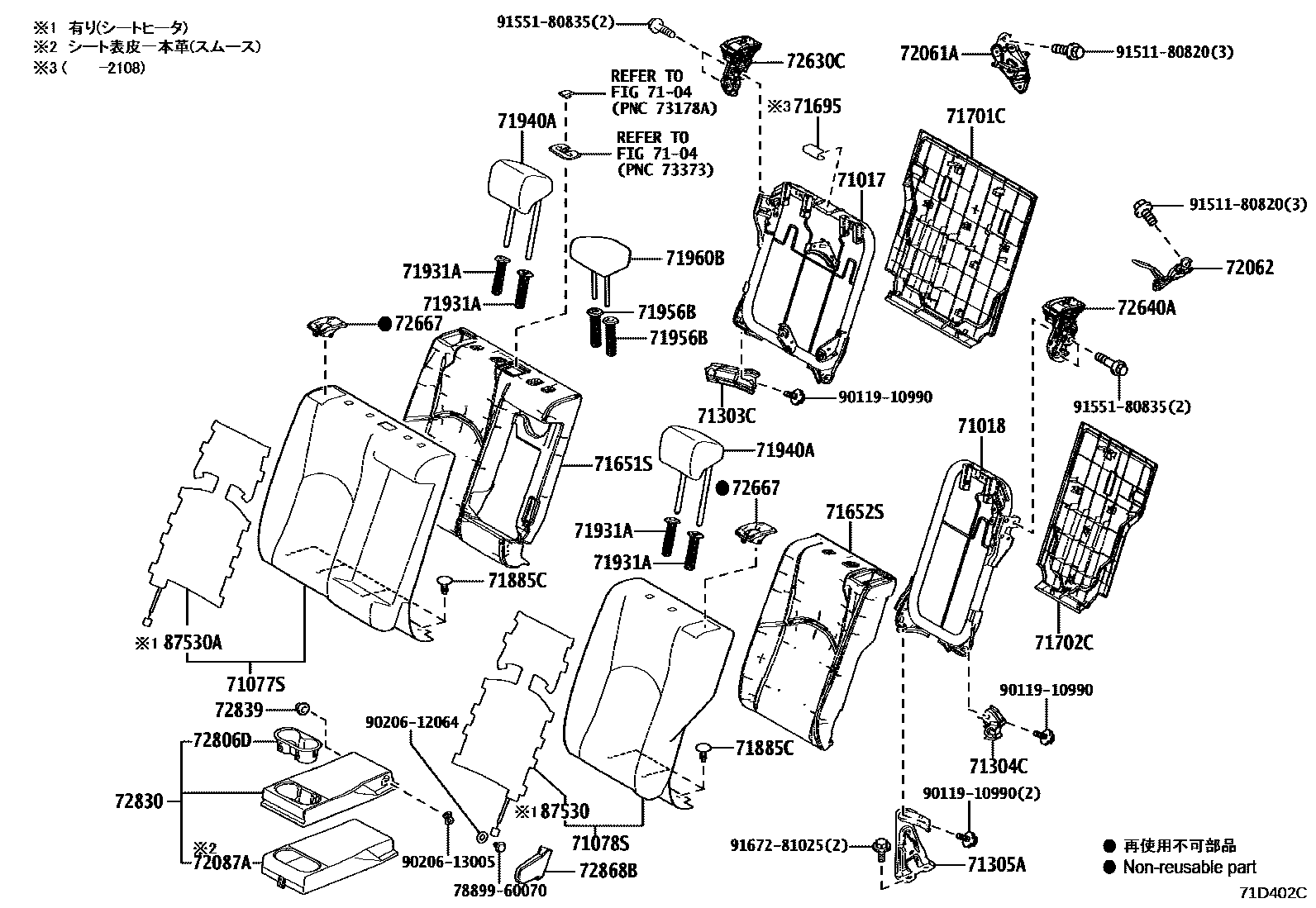

REAR SEAT & SEAT TRACK
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
CHATEAU,TRIM11
BLACK,TRIM2#
OCHER,TRIM4#
WHITE ASH/WHITE ASH,TRIM10
WHITE ASH/BLUE,TRIM8#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71695PROTECTOR, REAR SEATBACK
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71885CCLIP(FOR REAR SEATBACK CARPET)
71940AHEADREST ASSY, REAR SEAT
CHATEAU,TRIM11
WHITE ASH,TRIM10
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
71960BHEADREST ASSY, REAR SEAT, CENTER
CHATEAU,TRIM11
WHITE ASH,TRIM10
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72667BEZEL, REAR SEATBACK LOCK, UPPER
WHITE ASH,TRIM10
BLACK,TRIM0#,11,2#
OCHER,TRIM4#
BLUE,TRIM8#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM1#,2#,4#,8#
72830ARMREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
WHITE ASH,TRIM10
CHATEAU,TRIM11
72839SHIM, REAR SEAT ARMREST HINGE
72868BCOVER, CENTER ARMREST HINGE
BLACK,TRIM1#,2#,4#,8#
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
7889960070BOLT, FRONT SEAT
main78899-60070
9011910990
main90119-10990
9020612064
main90206-12064
9020613005
main90206-13005
9151180820
main91511-80820
9155180835
main91551-80835
9167281025
main91672-81025
37 parts on this diagram · 2 diagrams in section
